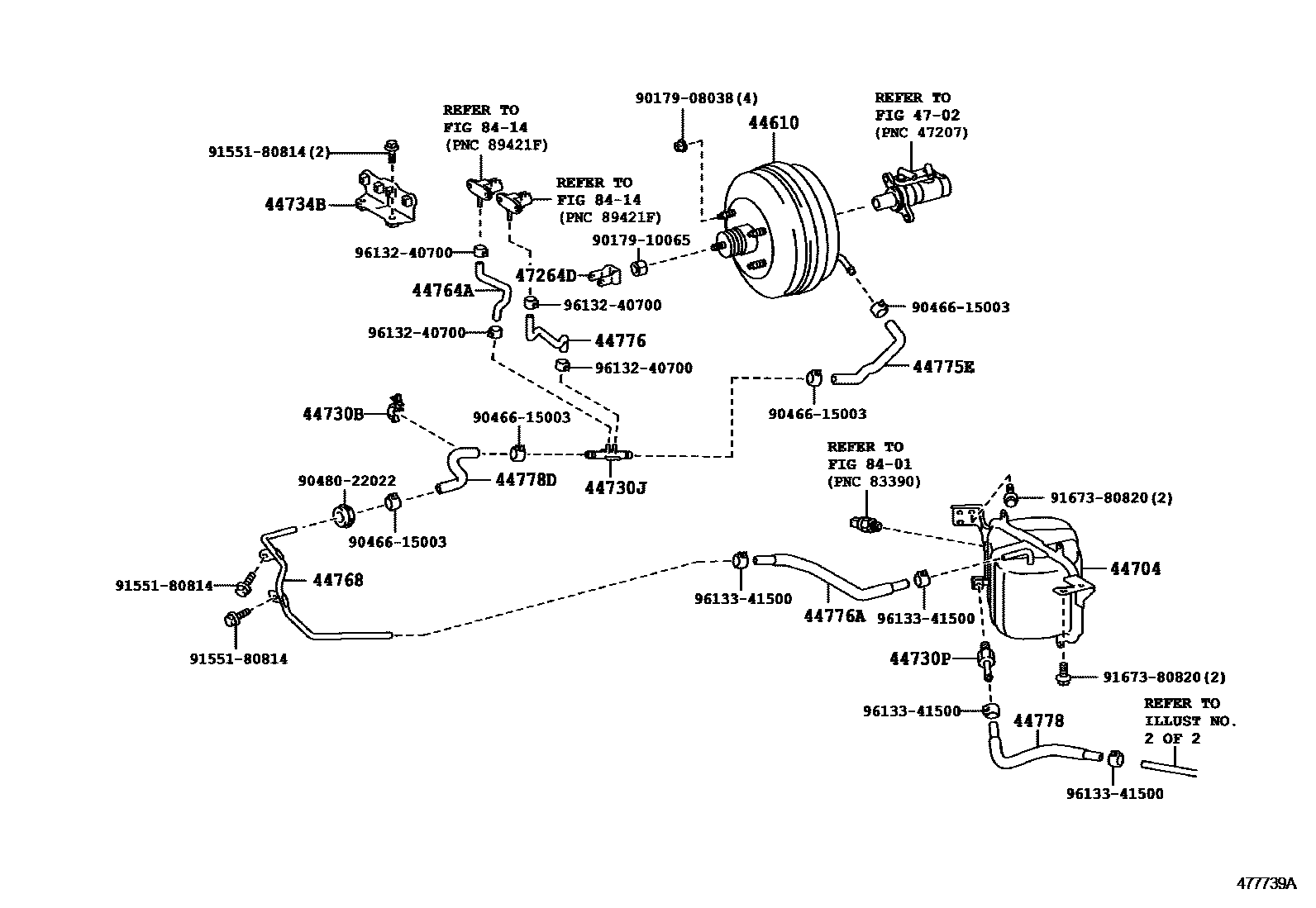

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

44610BOOSTER ASSY, BRAKE

main44610-37290iXKU710,720..6F201107-201905

main44610-37300iXKU702,712,722201107-201905

44704RESERVOIR SUB-ASSY, VACUUM

main44704-37210iXKU700,710,720201107-201905

main44704-37330iXKU702,71#,72#..DCRWD201905

44730BCLAMP, VACUUM HOSE

main44597-37021iXKU700,710,720201107-201905

44730JWAY(FOR BOOSTER VACUUM)

main90414-10043iXKU700,710,720..5F201107-201905

44730PVALVE ASSY, VACUUM CHECK, NO.1

main44730-60050iXKU700,710,720..5F201107-201905

44734BBRACKET, BOOSTER SUPPORT

main44734-37020iXKU700,710,720201107-202406

main44734-37021iXKU702,71#,72#..DCWDO202407

44764AHOSE, BOOSTER VACUUM

main44776-37340iXKU700,710,720201107-201905

44768TUBE, BOOSTER VACUUM

main44768-37220iXKU700,710,720201107-201905

44775EHOSE, WAY TO CONNECTOR

main44776-37350iXKU700,710,720201107-201905

44776HOSE, BRAKE BOOSTER

main44776-37330iXKU700,710,720201107-201905

44776AHOSE, VACUUM RESERVOIR TO BRAKE BOOSTER

main44776-37450iXKU702,71#,72#..6F201107-201905

main44776-37470iXKU702,71#,72#..DCWDO201905

44778HOSE, CONNECTOR TO CHECK VALVE

main44778-37370iXKU700,710,720201107-201905

44778DHOSE, VACUUM TUBE TO CONNECTOR TUBE

main44778-37320iXKU700,710,720201107-201905

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-50010iXKU700,710,720201107-201905

8401

8414

9017908038

main90179-08038

9017910065

main90179-10065

9046615003

main90466-15003

9048022022

main90480-22022

9155180814

main91551-80814

9167380820

main91673-80820

9613240700

main96132-40700

9613341500

main96133-41500

25 parts on this diagram · 5 diagrams in section
