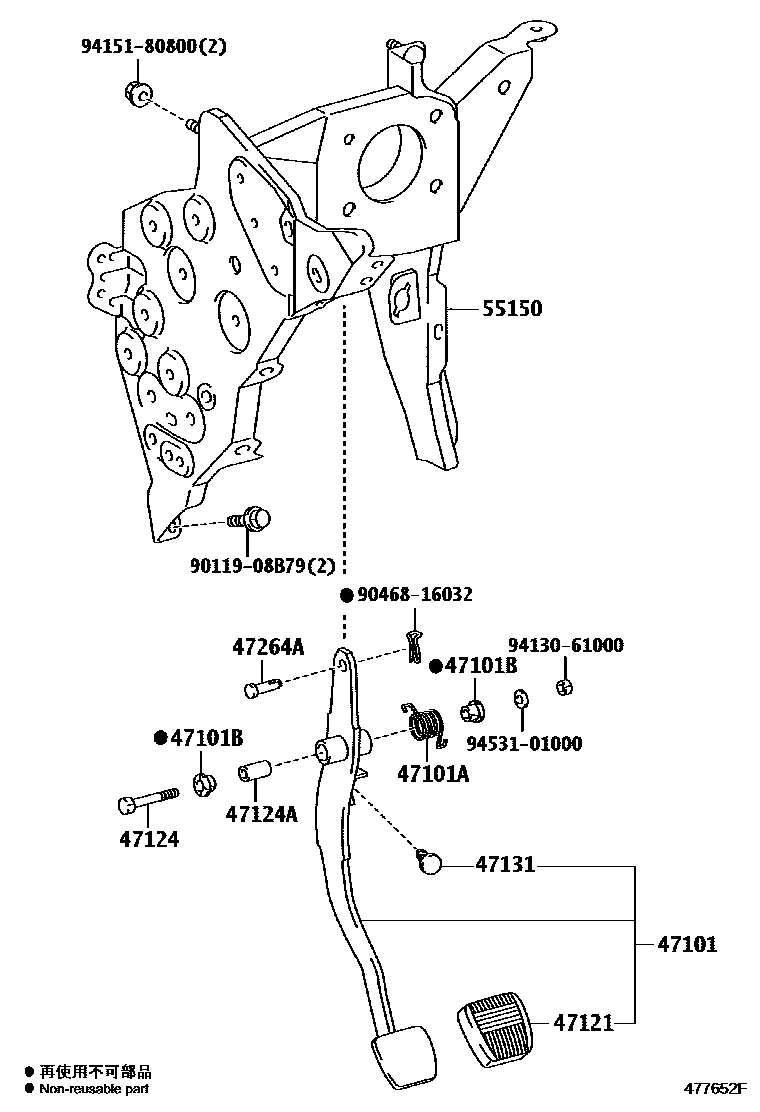

BRAKE PEDAL & BRACKET

0001 1 0003 1

47101PEDAL SUB-ASSY, BRAKE

main47101-37140iXKU700,710,720201107-201704

sub47101-37141

main47101-37141iXKU702,71#,72#..6F201705-201905

main47101-37170iXKU702,71#,72#..DCWDO201905

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90508-35039iXKU700,710,720201110-201905

main90508-35324iXKU700,710,720201107-201109

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007iXKU702,71#,72#..6F201107-201905

47121PAD, BRAKE PEDAL

main31321-14020iXKU700,710,720201107-201704

main31321-52020iXKU700,710,720..5F201705-201905

47124SHAFT, BRAKE PEDAL

main90119-10980iXKU702,71#,72#..DCWDO202206

main91112-61070iXKU702,71#,72#..DCRWD201107-202206

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10004iXKU700,710,720201107-201905

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iXKU700,710,720201107-201905

47264APIN(FOR PUSH ROD)

main90240-10037iXKU700,710,720201107-201905

55150BRACKET ASSY, PEDAL

main55150-37260iXKU700,710,720201107-201209

sub55150-37261

main55150-37261iXKU700,710,720201210-201905

main55150-37420iXKU702,71#,72#..DCRWD201905-202107

sub55150-37421

main55150-37421iXKU702,71#,72#..DCWDO202108

9011908B79

main90119-08B79

9046816032

main90468-16032

9413061000

main94130-61000

9415180800

main94151-80800

9453101000

main94531-01000

14 parts on this diagram · 2 diagrams in section
