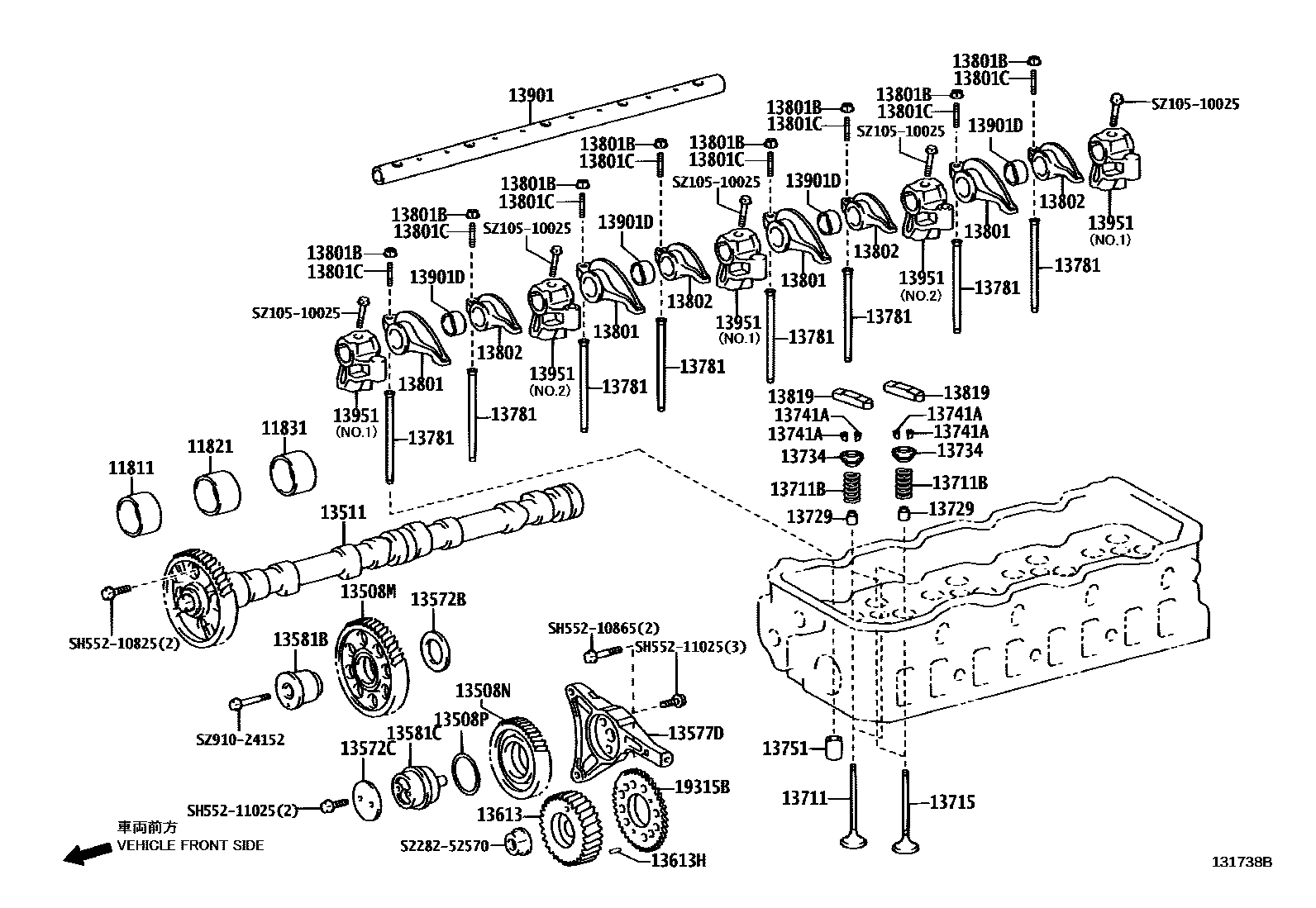

CAMSHAFT & VALVE

0001 1 0002 1

11811BEARING, CAMSHAFT, NO.1

main11811-E0030iN04C..XKU702,71#,72#..6F201107-201905

11821BEARING, CAMSHAFT, NO.2

main11821-E0020iN04C..XKU700,710,720201107-201905

11831BEARING, CAMSHAFT, NO.3

main11831-E0020iN04C..XKU700,710,720201107-201905

13508MGEAR SUB-ASSY, IDLE, NO.1

main13508-E0510iN04C..XKU702,71#,72#..DCWDO201107-201905

13508NGEAR SUB-ASSY, IDLE, NO.2

main13508-78320iN04C..XKU702,71#,72#..DCRWD201905-201908

sub13508-78322

main13508-78322iN04C..XKU702,71#,72#..DCRWD201908

main13508-E0520iN04C..XKU700,710,720..5F201107-201905

13508PRING, O(FOR IDLE GEAR)

mainSN73210543iN04C..XKU702,71#,72#..DCRWD201107-201905

13511CAMSHAFT

main13501-78211iN04C..XKU702,71#,72#201906-202012

main13501-78212iN04C..XKU702,71#,72#..DCWDO202101

main13501-E0460iN04C..XKU700,710,720201107-201108

sub13501-E0630

main13501-E0630iN04C..XKU702,71#,72#..6F201108-201905

main13501-E0651iN04C..XKU702,71#,72#201905-201906

sub13501-78211

13572BPLATE, IDLE GEAR THRUST, NO.1

mainS135721320iN04C..XKU700,710,720201107-201905

13572CPLATE, IDLE GEAR THRUST, NO.2

mainS135721480iN04C..XKU700,710,720..5F201107-201905

13577DPLATE, LOCK

mainS136451081iN04C..XKU700,710,720201107-201905

13581BSHAFT, IDLE GEAR, NO.1

main13581-E0021iN04C..XKU700,710,720201107-201905

13581CSHAFT, IDLE GEAR. NO.2

main13581-E0010iN04C..XKU702,71#,72#..6F201107-201905

13613GEAR, INJECTION PUMP DRIVE

main13613-78150iN04C..XKU702,71#,72#..DCRWD201905-201908

sub13613-78152

main13613-78152iN04C..XKU702,71#,72#..DCWDO201908

main13613-E0170iN04C..XKU700,710,720..5F201107-201901

main13613-E0220iN04C..XKU702,71#,72#..6F201901-201905

sub13613-E0222

13613HPIN, STRAIGHT(FOR INJECTION PUMP DRIVE GEAR)

mainSM21200314iN04C..XKU700,710,720201107-201905

13711VALVE, INTAKE

mainS137111800iN04C..XKU700,710,720201107-201905

13711BSPRING, COMPRESSION(FOR INNER)

mainS137311690iN04C..XKU702,71#,72#..6F201107-201905

13715VALVE, EXHAUST

mainS137151870iN04C..XKU702,71#,72#..6F201107-201905

13729SHIELD, VALVE STEM OIL

mainS137191470iN04C..XKU700,710,720201107-201905

13734SEAT, VALVE SPRING

mainS137351460iN04C..XKU700,710,720201107-201905

13741ALOCK, VALVE SPRING RETAINER

mainSZ91026013iN04C..XKU702,71#,72#..6F201107-201905

13751LIFTER, VALVE

main13751-E0040iN04C..XKU700,710,720..5F201107-201905

13781ROD, VALVE PUSH

mainS137811500iN04C..XKU702,71#,72#..6F201107-201905

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13811-78030iN04C..XKU702,71#,72#..DCRWD201905

main13811-E0190iN04C..XKU700,710,720201107-201905

13801BNUT, HEXAGON(FOR VALVE ADJUSTING)

mainS137881030iN04C..XKU702,71#,72#..DCWDO201107-201905

13801CSCREW, VALVE ADJUSTING

mainS137871161iN04C..XKU700,710,720201107-201905

13802ARM SUB-ASSY, VALVE ROCKER, NO.2

main13811-78060iN04C..XKU702,71#,72#..DCRWD201905

main13811-E0200iN04C..XKU702,71#,72#..6F201107-201905

13819BRIDGE, VALVE

main13819-E0050iN04C..XKU700,710,720201107-202010

sub13819-E0051

main13819-E0051iN04C..XKU702,71#,72#..DCRWD202011

13901SHAFT SUB-ASSY, VALVE ROCKER, NO.1

main13901-78030iN04C..XKU702,71#,72#..DCRWD201905

main13901-E0030iN04C..XKU702,71#,72#..6F201107-201905

sub13901-78030

13901DCOLLAR(FOR VALVE ROCKER SHAFT)

mainSZ91029119iN04C..XKU700,710,720201107-201905

13951SUPPORT, VALVE ROCKER, NO.1

main13951-78070iN04C..XKU702,71#,72#..DCRWD201905

main13951-78100iN04C..XKU702,71#,72#..DCRWD201905

main13951-78110iN04C..XKU702,71#,72#..DCWDO201905

main13951-E0040iN04C..XKU700,710,720..5F201107-201905

sub13951-78070

main13951-E0050iN04C..XKU702,71#,72#..6F201107-201905

sub13951-78110

19315BPLATE, CRANK ANGLE SENSOR

mainS211911221iN04C..XKU702,71#,72#..6F201107-201905

S228252570

mainS2282-52570

SH55210825

mainSH552-10825

SH55210865

mainSH552-10865

SH55211025

mainSH552-11025

SZ10510025

mainSZ105-10025

SZ91024152

mainSZ910-24152

37 parts on this diagram · 2 diagrams in section
