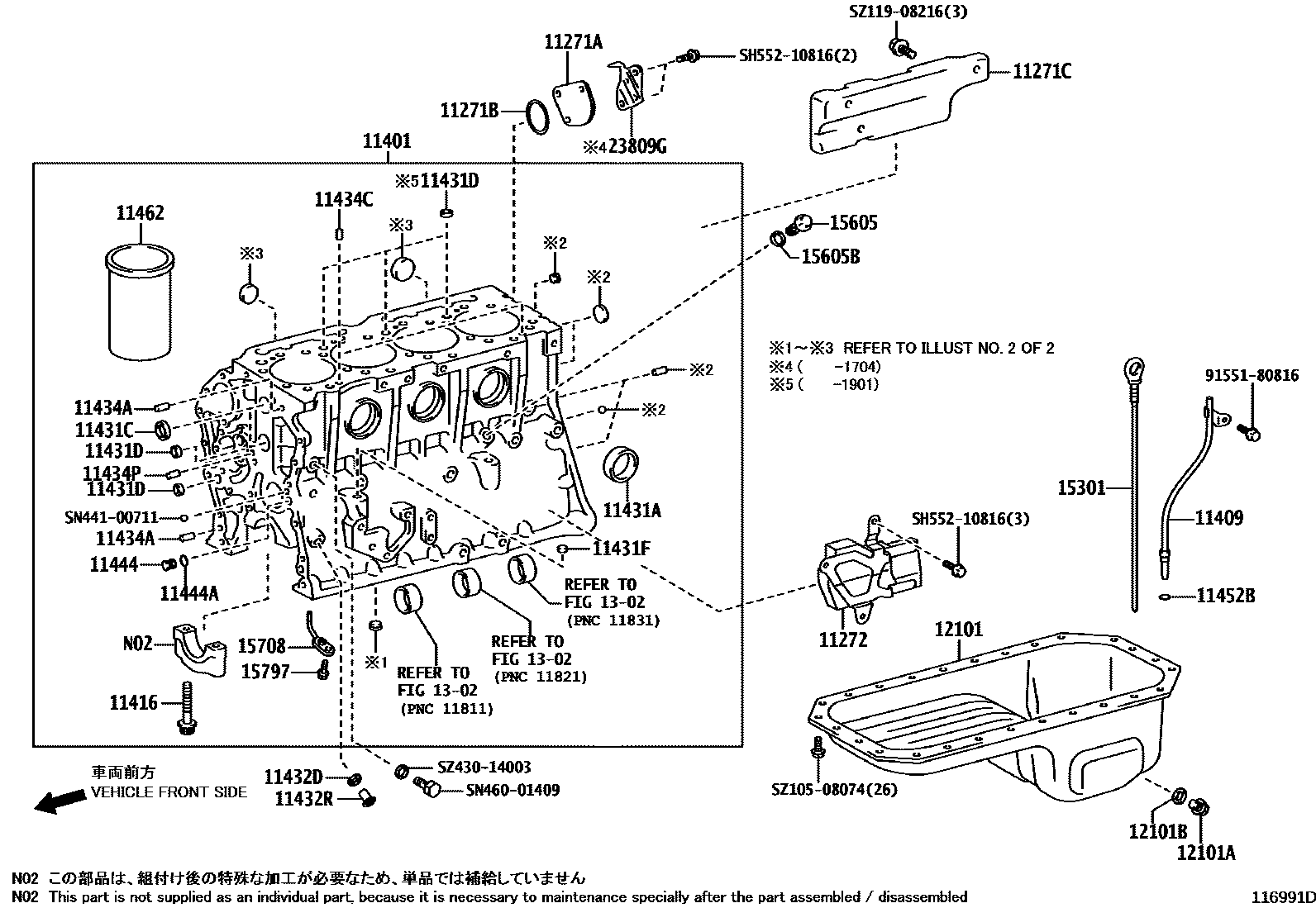

CYLINDER BLOCK

0001 1 0002 1

11271ACOVER, CYLINDER BLOCK, REAR

main11494-78020iN04C..XKU700,710,720201107-201703

main16269-78041iN04C..XKU702,71#,72#..6F201704-201712

sub16269-78042

main16269-78042iN04C..XKU702,71#,72#..DCWDO201712-201905

11271BRING, O(FOR CYLINDER BLOCK REAR PLATE)

mainSN73210693iN04C..XKU700,710,720201107-201201

mainSN74110693iN04C..XKU700,710,720201201-201905

11271CCOVER, CYLIVDER BLOCK SIDE

main51043-37111iN04C..XKU702,71#,72#..DCWDO202310

11272COVER, CYLINDER BLOCK SIDE, NO.2

main51044-37100iN04C..XKU702,71#,72#..DCWDO202310

11401BLOCK SUB-ASSY, CYLINDER

main11410-78423iN04C..XKU702,71#,72#..DCWDO201905-202309

sub11410-78424

main11410-78424iN04C..XKU702,71#,72#..DCWDO202310

main11410-78460iN04C..XKU702,71#,72#..6F201901-201905

sub11410-78461

sub11701-78170

sub15703-78060

main11410-E0D71iN04C..XKU702,71#,72#..6F201107-201811

sub11410-E0D72

main11410-E0D72iN04C..XKU702,71#,72#..6F201812-201901

sub11410-78460

sub11115-78100

11409GUIDE SUB-ASSY, OIL LEVEL GAGE

main11409-78210iN04C..XKU702,71#,72#..DCRWD201905

main11409-78230iN04C..XKU700,710,720..5F201107-201905

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

mainS115211410iN04C..XKU702,71#,72#..6F201107-201905

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

mainSN41105016iN04C..XKU700,710,720201107-201905

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

mainSN41103616iN04C..XKU700,710,720..5F201107-201905

11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)

mainSN41101712iN04C..XKU700,710,720201107-201905

11431FPLUG, TIGHT, NO.6(FOR CYLINDER BLOCK)

mainSZ33114001iN04C..XKU700,710,720201107-201905

11432DGASKET, W/HEAD TAPER SCREW PLUG

mainSZ43010004iN04C..XKU702,71#,72#..DCWDO201107-201905

subSL723-01010

11432RPLUG, W/HEAD STRAIGHT SCREW, NO.1(FOR CYLINDER BLOCK)

mainSN46101011iN04C..XKU700,710,720201107-201905

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

mainSZ25008008iN04C..XKU700,710,720201107-201905

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

mainSZ25008007iN04C..XKU700,710,720201107-201905

11434PPIN, STRAIGHT(FOR OIL PUMP SET)

mainSM21200510iN04C..XKU700,710,720201107-201905

11444PLUG, HOLE

mainS114531130iN04C..XKU700,710,720201107-201905

11444ARING, O

mainSN73200051iN04C..XKU700,710,720201107-201905

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

mainSZ30110025iN04C..XKU700,710,720201107-201905

11462LINER, CYLINDER

main11462-78020iN04C..XKU702,71#,72#..DCRWD201905

main11462-78030iN04C..XKU702,71#,72#..6F201901-201905

main11462-E0170iN04C..XKU702,71#,72#..6F201705-201901

main11463-78020iN04C..XKU702,71#,72#..DCRWD201905

main11463-78030iN04C..XKU702,71#,72#..6F201901-201905

main11463-E0140iN04C..XKU702,71#,72#..6F201705-201901

main11464-78020iN04C..XKU702,71#,72#..DCWDO201905

main11464-78030iN04C..XKU702,71#,72#..6F201901-201905

main11464-E0140iN04C..XKU700,710,720..5F201705-201901

mainS114671762iN04C..XKU700,710,720201107-201705

sub11462-E0170

mainS114671772iN04C..XKU700,710,720201107-201705

sub11463-E0140

mainS114671792iN04C..XKU700,710,720201107-201705

sub11464-E0140

12101PAN SUB-ASSY, OIL

main12101-E0450iN04C..XKU702,71#,72#..DCWDO201107-201905

12101APLUG(FOR OIL PAN DRAIN)

mainSZ34118014iN04C..XKU700,710,720201107-201905

12101BGASKET(FOR OIL PAN DRAIN PLUG)

mainSZ43018009iN04C..XKU700,710,720201107-201905

1302

15301GAGE SUB-ASSY, OIL LEVEL

main15301-78320iN04C..XKU700,710,720..5F201705-201905

main15301-78351iN04C..XKU702,71#,72#..DCRWD201905

main15301-E0A70iN04C..XKU700,710,720201107-201705

15605VALVE SUB-ASSY, OIL CHECK

main15602-E0010iN04C..XKU700,710,720201508-201905

main15703-78050iN04C..XKU702,71#,72#..DCRWD201905

mainS156021200iN04C..XKU700,710,720201107-201507

sub15602-E0010

15605BGASKET(FOR OIL CHECK VALVE)

mainSZ43024001iN04C..XKU702,71#,72#..DCWDO201107-201905

15708NOZZLE SUB-ASSY, OIL, NO.1

mainS110BE0010iN04C..XKU700,710,720201107-201905

15797BOLT, OIL NOZZLE UNION

mainSH55210816iN04C..XKU700,710,720201107-201905

23809GSUPPORT SUB-ASSY, FUEL PIPE

main23809-78091iN04C..XKU700,710,720201107-201704

9155180816

main91551-80816

SH55210816

mainSH552-10816

SN44100711

mainSN441-00711

SN46001409

mainSN460-01409

SZ10508074

mainSZ105-08074

SZ11908216

mainSZ119-08216

SZ43014003WASHER, SOFT, NO.1

mainSZ430-14003

37 parts on this diagram · 2 diagrams in section
