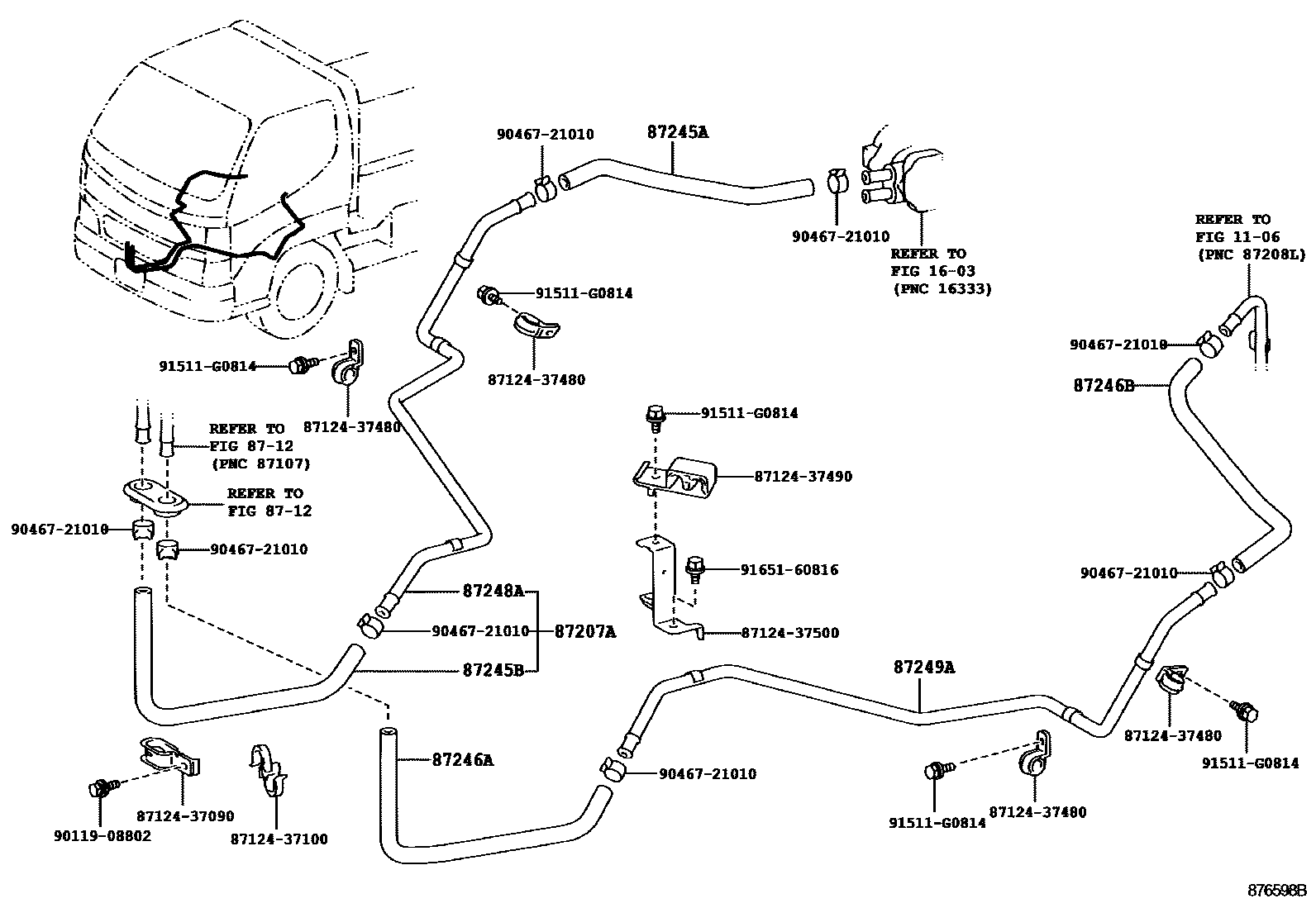

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1

1106

1603

8712

87207APIPE & HOSE SUB-ASSY, WATER A

main87207-37A20iXKU414,424200310-200609

87245AHOSE, HEATER WATER, INLET A

main87245-37A10iXKU414,424200310-201106

sub87245-37A11

87245BHOSE, HEATER WATER, INLET B

main87245-37A20iXKU414,424200310-200610

main99556-30500iXKU414,424200610

87246AHOSE, HEATER WATER, OUTLET A

main87246-37480iXKU414,424200310-200610

main99556-30500iXKU414,424200610

87246BHOSE, HEATER WATER, OUTLET B

main87246-37470iXKU414,424200310-200609

main87246-37680iXKU414,424200610

87248APIPE, HEATER WATER INLET, A

main87248-37540iXKU414,424200310-201005

sub87248-37B90

main87248-37B91iXKU414,424201006-201007

sub87248-37B92

main87248-37B92iXKU414,424201008

87249APIPE, HEATER WATER OUTLET, A

main87248-37550iXKU414,424200310-200610

main87248-37820iXKU414,424200610

8712437090CLAMP, HEATER

main87124-37090

8712437100CLAMP, HEATER

main87124-37100

8712437480CLAMP, HEATER

main87124-37480

8712437490CLAMP, HEATER

main87124-37490

8712437500CLAMP, HEATER

main87124-37500

9011908802

main90119-08802

9046721010

main90467-21010

91511G0814

main91511-G0814

9165160816

main91651-60816

19 parts on this diagram · 3 diagrams in section
