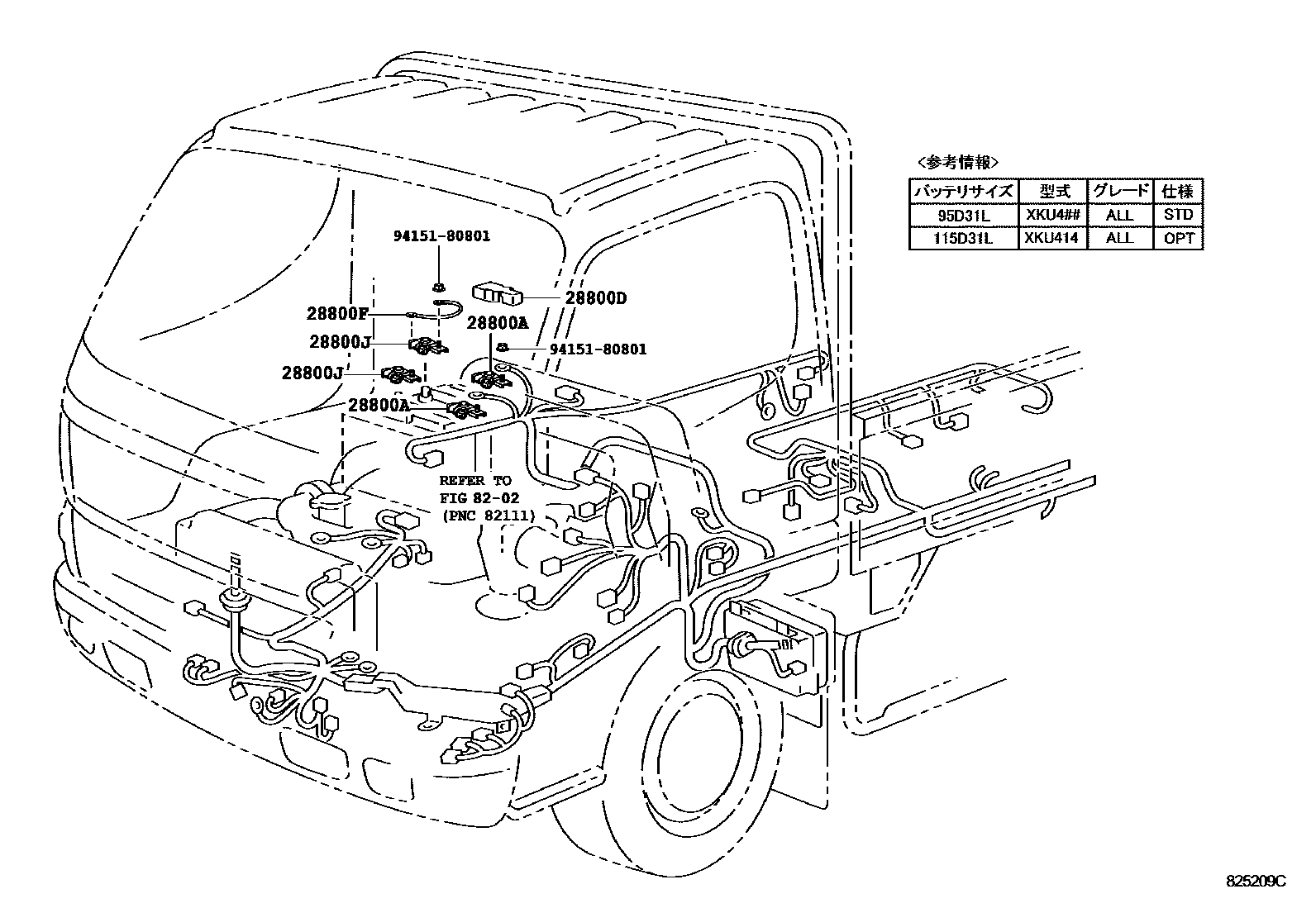

BATTERY & BATTERY CABLE

0001 112V ����� 0002 1HV ����� 0003 1HV ����� 0004 112V ����� 0005 1HV ����� 0006 1HV �����

28800ATERMINAL, BATTERY POSITIVE

main90982-05040iN04C..XKU414,424¥950200610

main90982-05042iN04C..XKU414,424¥870200310-200610

main90982-05056iN04C..XKU414,424¥850200610

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-37071iN04C..XKU414,424¥630200310-200610

28800FCABLE, BATTERY TO BATTERY

main82123-37040iN04C..XKU414,424¥4,970200310-200610

main82123-37170iN04C..XKU414,424¥2,730200610

28800JTERMINAL, BATTERY NEGATIVE

main90982-06028iN04C..XKU414,424¥1,390200310-200610

8202

9415180801

main94151-80801¥80

6 parts on this diagram · 6 diagrams in section
