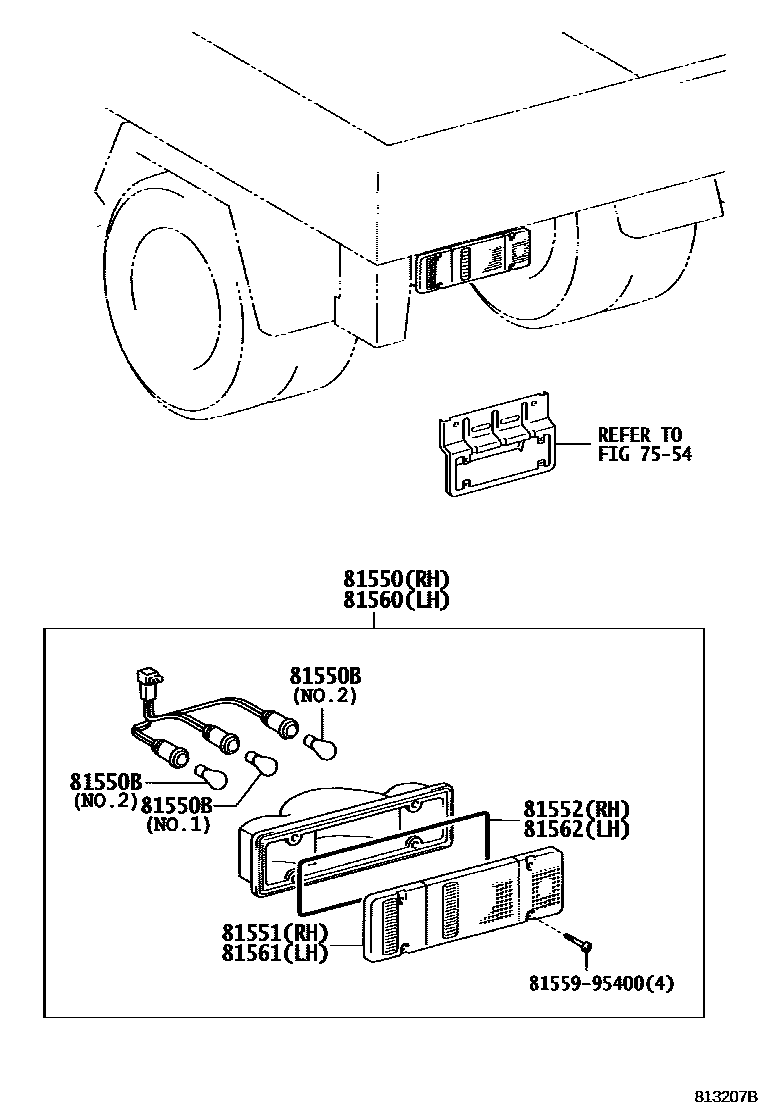

REAR COMBINATION LAMP

0001 1TYPE A 0002 1TYPE A 0003 1TYPE B

7554

81550LAMP ASSY, REAR COMBINATION, RH

main81550-37050iXKU414,424200406-200505

main81550-37120iXKU414,424200310-200505

main81550-37180iXKU414,424200505-200610

main81550-37240iXKU414,424200505-200610

main81550-37260iXKU414,424200707

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-16014×4iXKU414,424200610

main90981-16015×2iXKU414,424200610

main90981-16027×2iXKU414,424200406-200505

main99134-11250×4iXKU414,424200406-200505

main99134-12250×4iXKU414,424200310-200505

81551LENS, REAR COMBINATION LAMP, RH

main81551-37110iXKU414,424200505-200610

main81551-37120iXKU414,424200310-200505

main81551-60442iXKU414,424200505-200610

main81551-60451iXKU414,424200406-200505

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-37120iXKU414,424200310-200610

main81552-95400iXKU414,424200406-200610

81560LAMP ASSY, REAR COMBINATION, LH

main81560-37070iXKU414,424200406-200505

main81560-37130iXKU414,424200310-200505

main81560-37180iXKU414,424200505-200610

main81560-37240iXKU414,424200505-200610

main81560-37270iXKU414,424200707

81561LENS, REAR COMBINATION LAMP, LH

main81561-37120iXKU414,424200505-200610

main81561-37130iXKU414,424200310-200505

main81561-60372iXKU414,424200505-200610

main81561-60381iXKU414,424200406-200505

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-37120iXKU414,424200310-200610

main81552-95400iXKU414,424200406-200610

8155995400MOULDING, REAR COMBINATION LAMP, RH

main81559-95400

9 parts on this diagram · 3 diagrams in section
