FRONT DOOR WINDOW REGULATOR & HINGE

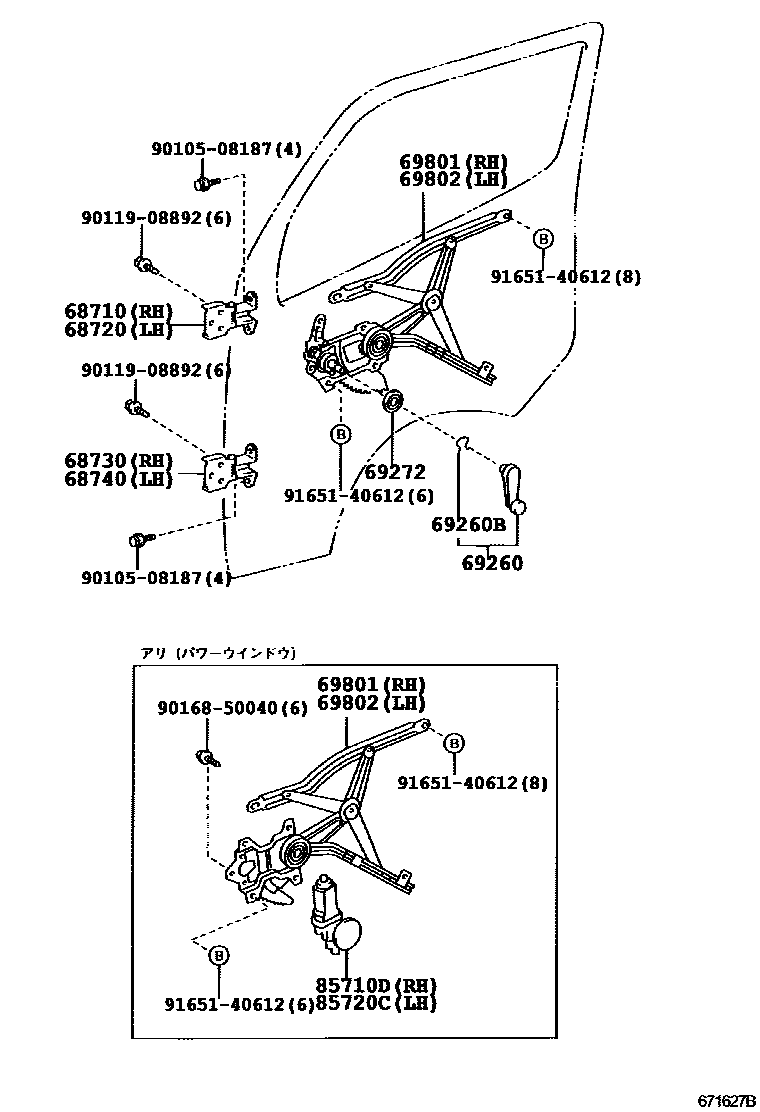

Parts diagram
68710HINGE ASSY, FRONT DOOR, UPPER RH
main68710-37020i200310-200610
main68710-37031i200402-200610
main68710-37031i200610
68720HINGE ASSY, FRONT DOOR, UPPER LH
main68730-37010i200310-200610
main68730-37031i200610
main68730-37031i200402-200610
68730HINGE ASSY, FRONT DOOR, LOWER RH
main68730-37010i200310-200610
main68730-37031i200402-200610
main68730-37031i200610
68740HINGE ASSY, FRONT DOOR, LOWER LH
main68710-37020i200310-200610
main68710-37031i200610
main68710-37031i200402-200610
69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
main69260-89104-B3i200310-201106
MD.CHARCOAL,TRIM1#
sub69260-89104
69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
main90520-01274i200310-200610
69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
main69285-22010i200310-200610
69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
main69801-37020i200310-200609
sub69801-37050
main69801-37030i200310-200610
sub69801-37060
main69801-37050i200610-200704
sub69801-37051
main69801-37051i200705-200905
sub69801-37052
main69801-37052i200906
main69801-37060i200610-200704
sub69801-37061
main69801-37061i200705-200905
sub69801-37062
main69801-37062i200906
sub69801-37063
69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
main69802-37020i200310-200609
sub69802-37050
main69802-37030i200310-200610
sub69802-37060
main69802-37050i200610-200704
sub69802-37051
main69802-37051i200705-200905
sub69802-37052
main69802-37052i200906
main69802-37060i200610-200704
sub69802-37061
main69802-37061i200705-200905
sub69802-37062
main69802-37062i200906
sub69802-37063
85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH
main85710-37040i200310-200610
main85710-37080i200610
85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH
main85720-37050i200310-200610
main85720-37110i200610
9010508187
main90105-08187
9011908892
main90119-08892
9016850040
main90168-50040
9165140612
main91651-40612

15 parts on this diagram · 1 diagram in section
