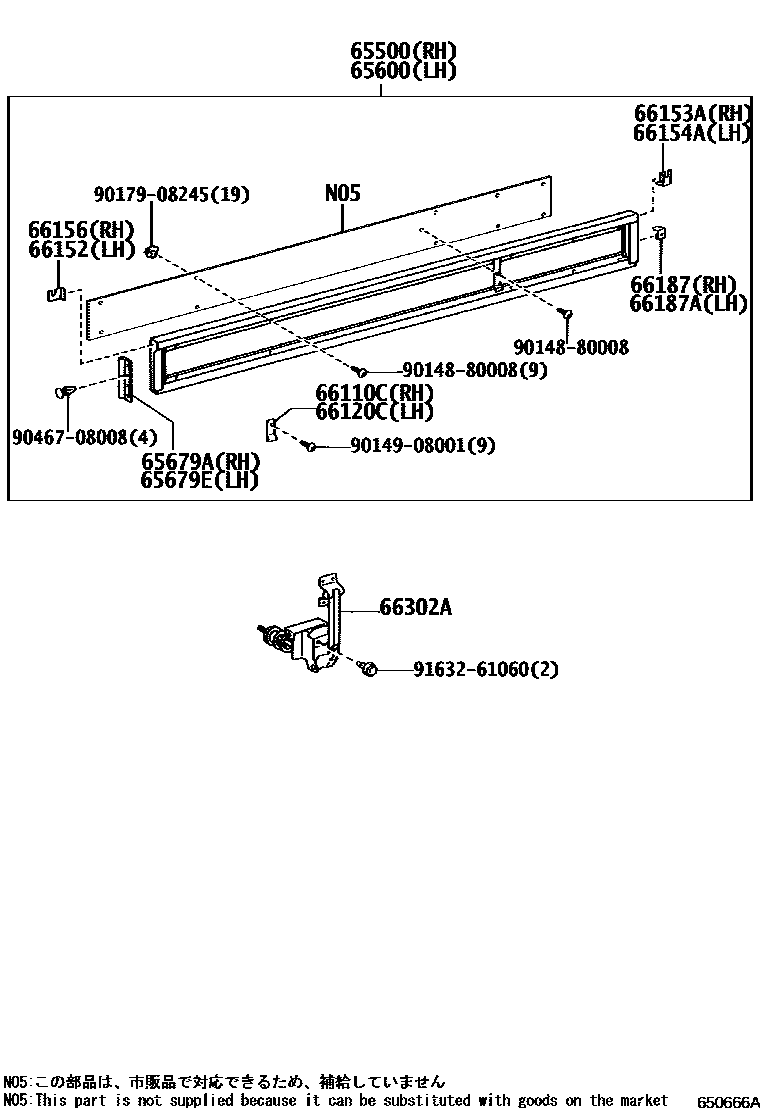

REAR BODY SIDE PANEL

0001 1 0002 1 0003 1���������

65500PANEL ASSY, REAR BODY SIDE, RH

main65500-3V450iXKU424¥73,400200406-201106

main65500-3V820iXKU414¥128,000200406-201106

65600PANEL ASSY, REAR BODY SIDE, LH

main65600-3V430iXKU424¥73,400200406-201106

main65600-3V820iXKU414¥128,000200406-201106

65679ASEAL, SIDE GATE

main65679-37010iXKU414¥820200406-201103

sub65679-37011¥510

main65679-37011iXKU414,424¥510201104-201106

65679ESEAL, SIDE GATE

main65679-37010iXKU414¥820200406-201103

sub65679-37011¥510

main65679-37011iXKU414,424¥510201104-201106

66110CHINGE ASSY, SIDE GATE, NO.1 RH

main65010-37040iXKU414¥2,690200406-201012

main65010-37041iXKU414¥2,690201101-201105

sub65010-37042¥1,860

main65535-37080iXKU424¥890200406-201106

66120CHINGE ASSY, SIDE GATE, NO.1 LH

main65010-37040iXKU414¥2,690200406-201012

main65010-37041iXKU414¥2,690201101-201105

sub65010-37042¥1,860

main65535-37080iXKU424¥890200406-201106

66152LATCH, SIDE GATE FEMALE, LH

main66152-37020iXKU424¥1,270200406-200610

main66152-92703iXKU414¥1,130200406-200610

66153ALATCH, TAIL GATE FEMALE, RH

main66153-37010iXKU414,424¥620200406-201106

66154ALATCH, TAIL GATE FEMALE, LH

main66154-37010iXKU414,424¥620200406-200610

66156LATCH, SEMISTAKE FEMALE, RH

main66151-37010iXKU424¥1,270200406-201106

main66151-92703iXKU414¥1,130200406-201106

66187HANDLE, SIDE GATE LATCH, CENTER NO.2

main66187-37010iXKU414¥480200406-201106

sub66187-37011¥330

main66187-37020iXKU424¥370200406-201106

66187ALATCH, SIDE GATE SUPPORT

main66187-37010iXKU414¥480200406-201106

sub66187-37011¥330

main66187-37030iXKU424¥370200406-201106

66302ALINK SUB-ASSY, GATE HELPER

main66302-37011iXKU414¥3,220200406-200610

main66302-37040iXKU424¥15,900200406-200610

9014880008

main90148-80008¥110

9014908001

main90149-08001¥60

9017908245

main90179-08245¥120

9046708008

main90467-08008¥170

9163261060

main91632-61060¥160

18 parts on this diagram · 3 diagrams in section
