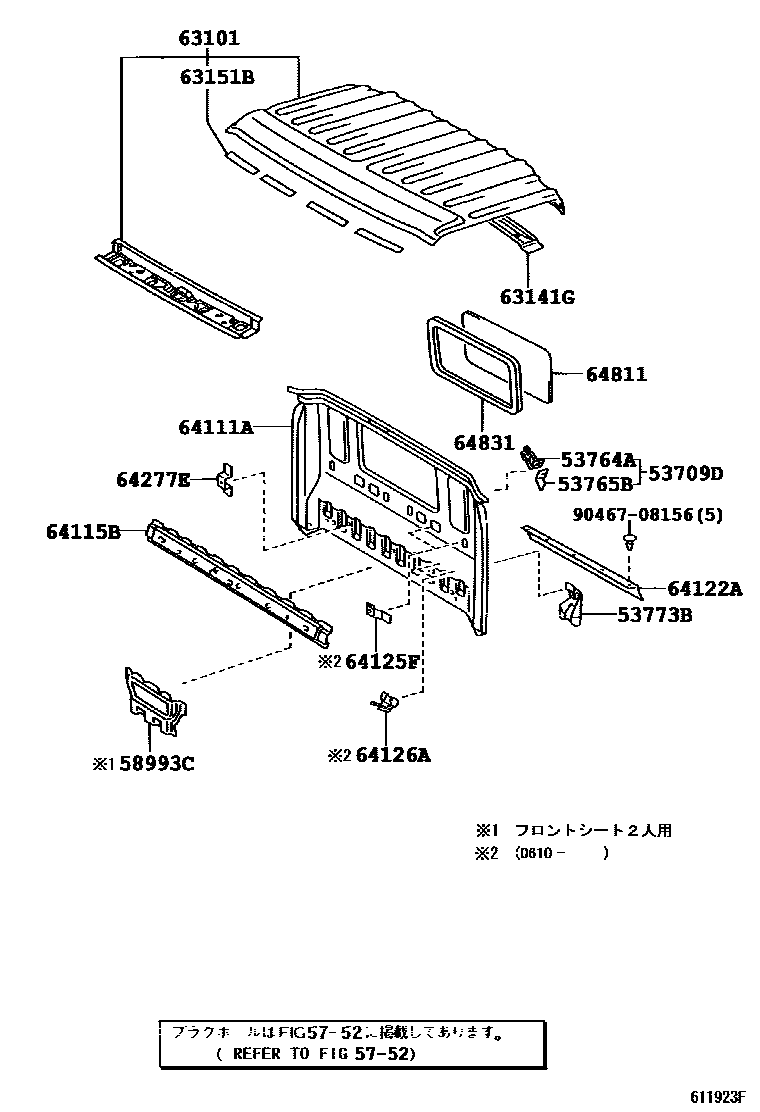

ROOF PANEL & BACK PANEL

0001 1 0002 1��(�-� ������ ������) 0003 1��(�-� ���)

53709DBRACKET SUB-ASSY, AIR CLEANER INLET SEAL

main53709-37070iXKU414,424200610

53764ABRACKET, AIR CLEANER INLET, NO.1

main53764-37060iXKU414,424200310-200610

53765BBRACKET, AIR CLEANER INLET, NO.2

main53765-37070iXKU414,424200310-200610

53773BBRACKET, AIR CLEANER INLET, NO.2

main53773-37100iXKU414,424200310-200608

5752

58993CBRACKET, CONSOLE BOX MOUNTING, REAR

main58993-37030iXKU414,424200310-200604

63101PANEL SUB-ASSY, ROOF

main63101-37310iXKU414,424200310-200610

sub63111-37180

sub63132-37260

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-37120iXKU414,424200310-200610

63151BSEAL, ROOF PANEL REINFORCEMENT

main63151-37040×4iXKU414,424200310-200610

64111APANEL, BACK

main64111-37531iXKU414,424200310-200608

64115BREINFORCEMENT, BACK PANEL

main64115-37131iXKU414,424200310-200603

main64115-37132iXKU414,424200604-200610

64122ABAFFLE, DUST REAR BODY

main64122-37170iXKU414,424200310-200610

64125FBRACKET, UPPER BACK PANEL

main64125-37040×2iXKU414,424200610

64126ABRACKET, UPPER BACK PANEL, LH

main64125-37030×2iXKU414,424200610

64277EBRACKET, BACK PANEL TRIM, LOWER

main64277-37010×3iXKU414,424200310-200608

64811GLASS, BACK WINDOW

main64811-37150iXKU414,424200310-200610

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-37060iXKU414,424200310-200610

9046708156

main90467-08156

18 parts on this diagram · 3 diagrams in section
