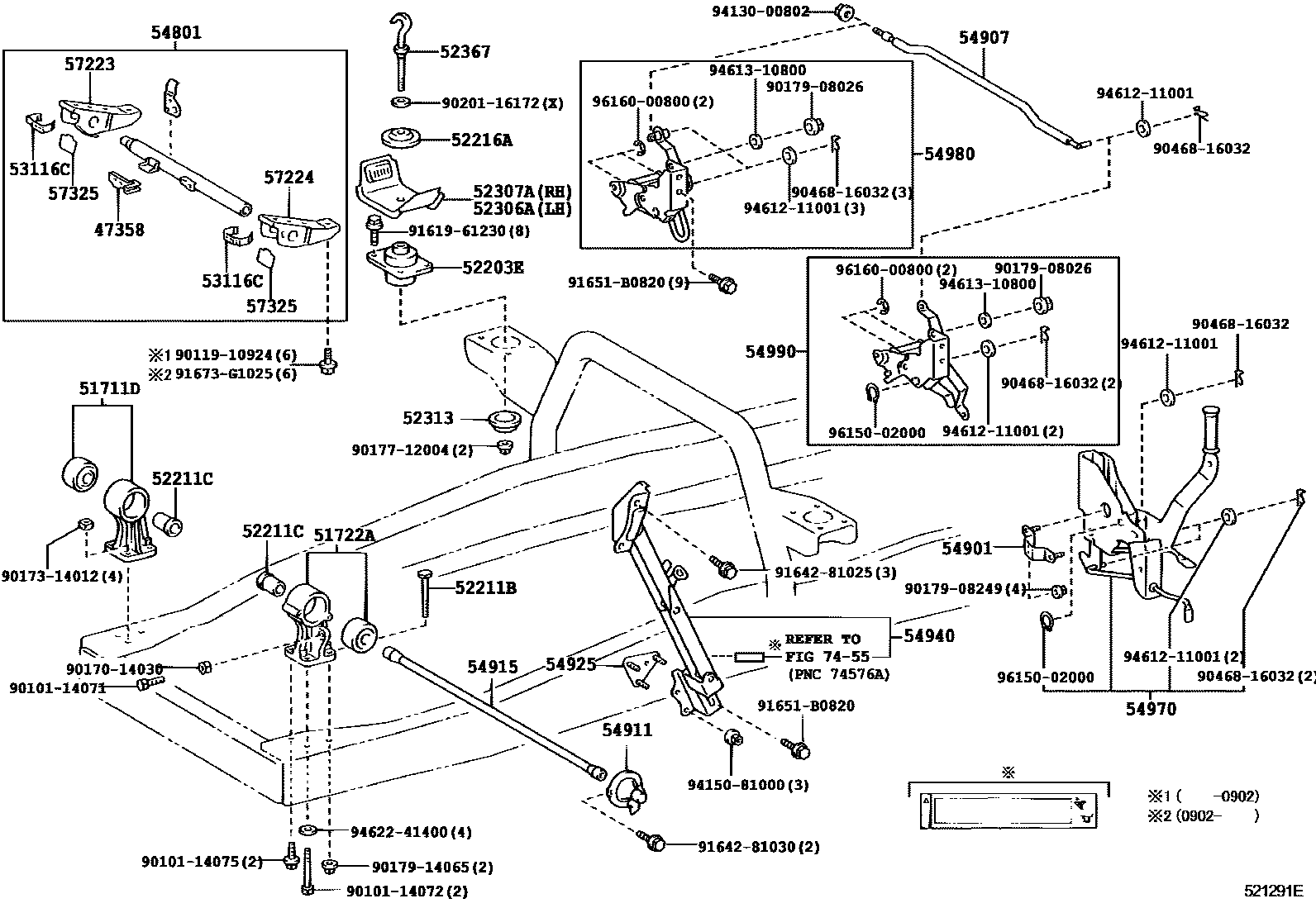

CAB MOUNTING & BODY MOUNTING
47358TUBE, BOOSTER TO RESERVOIR, NO.2
51711DBRACKET, CAB FRONT MOUNTING
51722ABRACKET SUB-ASSY, CAB FRONT MOUNTING, LH
52203ECUSHION SUB-ASSY, CAB MOUNTING, NO.2
52211BBOLT(FOR BODY MOUNTING NO.1 CUSHION)
52211CSPACER(FOR BODY MOUNTING NO.1 CUSHION)
52216ASTOPPER, CAB MOUNTING CUSHION
52306ABRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.1
52307ABRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.2
52313STOPPER, CAB REAR MOUNTING REBOUND
52367HOOK, CAB REAR MOUNTING
53116CBRACKET, RADIATOR GRILLE, NO.2
54901BRACKET SUB-ASSY, TILT CAB LOCK
54907PIPE SUB-ASSY, TILT CAB LOCK CONNECTING
sub54907-37050
54911ARM, TILT CAB SPRING SUPPORT, NO.1
sub54911-37160
54915SPRING, TILT CAB, NO.1
sub54915-37290
54925RETAINER, TILT CAB SPRING
54940STAY ASSY, TILT CAB
54980LOCK ASSY, TILT CAB MOUNTING, RH
sub54980-37012
54990LOCK ASSY, TILT CAB MOUNTING, LH
57223BRACKET, FRONT MOUNTING, RH
57224BRACKET, FRONT MOUNTING, LH
57325REINFORCEMENT, FRONT MOUNTING
7455
9010114071
main90101-14071
9010114072
main90101-14072
9010114075
main90101-14075
9011910924
main90119-10924
9017014030
main90170-14030
9017314012
main90173-14012
9017712004
main90177-12004
9017908026
main90179-08026
9017908249
main90179-08249
9017914065
main90179-14065
9020116172
main90201-16172
9046816032
main90468-16032
9161961230
main91619-61230
9164281025
main91642-81025
9164281030
main91642-81030
91651B0820
main91651-B0820
91673G1025
main91673-G1025
9413000802
main94130-00802
9415081000
main94150-81000
9461211001
main94612-11001
9461310800
main94613-10800
9462241400
main94622-41400
9615002000
main96150-02000
9616000800
main96160-00800
50 parts on this diagram · 1 diagram in section
