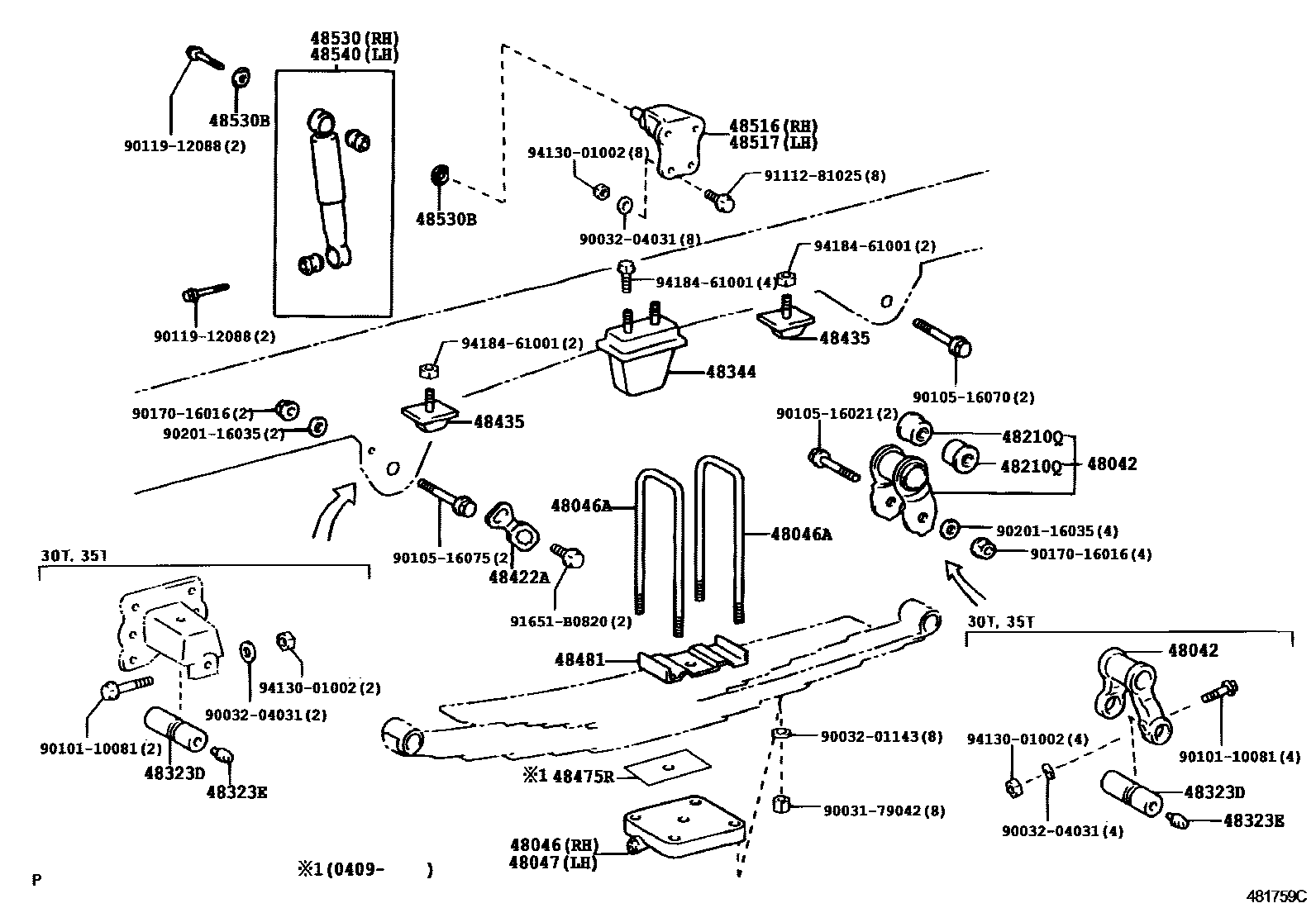

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1MAIN 2+HELPER 2-LEAF 0005 1MAIN 2+HELPER 2-LEAF

48042SHACKLE SUB-ASSY, REAR SPRING, NO.2

main48042-37020×2iXKU414..20T200610

main48042-37050×2iXKU414,424..30T200610

sub48042-37052

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48473-37110iXKU414,424200310-200610

main48473-37111iXKU414,424201010

48046ABOLT, U(FOR REAR SPRING)

main90031-17015×4iXKU414..30T200310-200610

main90031-17016×4iXKU414..30T200409-200610

main90031-17026×4iXKU414..20T200310-200610

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48473-37110iXKU414,424200610-201009

main48473-37111iXKU414,424201010

48210SPRING ASSY, REAR RH

main48210-3V120iXKU414,424..30T200610

sub48210-3V121

main48210-3V130iXKU424200310-200610

sub48210-3V131

main48210-3V310iXKU414..30T200610

sub48210-3V311

main48210-3V470iXKU414..20T200610

sub48210-3V471

48210QBUSH(FOR REAR SPRING SHACKLE)

main90033-84013×2iXKU414,424..30T,35T200310-200610

main90389-16026×4iXKU414..20T200310-200610

48323DPIN, REAR SPRING BRACKET

main48323-37040×6iXKU414,424..30T,35T200310-200610

48323ENIPPLE, GREASE(FOR REAR SPRING BRACKET PIN)

main90034-08006×6iXKU414,424..30T,35T200310-200610

48344STOPPER, BUMPER, REAR

main48344-37200×2iXKU414,424200610

48422ASUPPORT, REAR SPRING PIN

main48422-37010×2iXKU414..20T200310-200610

48435ATTACHMENT, HELPER SPRING BRACKET, NO.1

main48435-37020×4iXKU414,424200310-200610

48475RPLATE, DISTANCE(FOR REAR)

main48475-37090iXKU414,424200409-200610

48481SEAT, REAR SPRING, UPPER

main48481-37090×2iXKU414,424200610

48516BRACKET, REAR SHOCK ABSORBER, UPPER RH

main48505-37050iXKU414,424200310-200501

main48505-37051iXKU414,424200502-200610

sub48505-37052

48517BRACKET, REAR SHOCK ABSORBER, UPPER LH

main48505-37050iXKU414,424200310-200501

main48505-37051iXKU414,424200502-200610

sub48505-37052

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-37150iXKU414,424200310-200603

main48531-37290iXKU414,424200604-200610

sub48531-37291

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03011×4iXKU414,424200310-200610

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-37150iXKU414,424200310-200603

main48531-37290iXKU414,424200604-200610

sub48531-37291

9003179042

main90031-79042

9003201143

main90032-01143

9003204031

main90032-04031

9010110081

main90101-10081

9010516021

main90105-16021

9010516070

main90105-16070

9010516075

main90105-16075

9011912088

main90119-12088

9017016016

main90170-16016

9020116035

main90201-16035

9111281025

main91112-81025

91651B0820

main91651-B0820

9413001002

main94130-01002

9418461001

main94184-61001

32 parts on this diagram · 4 diagrams in section
