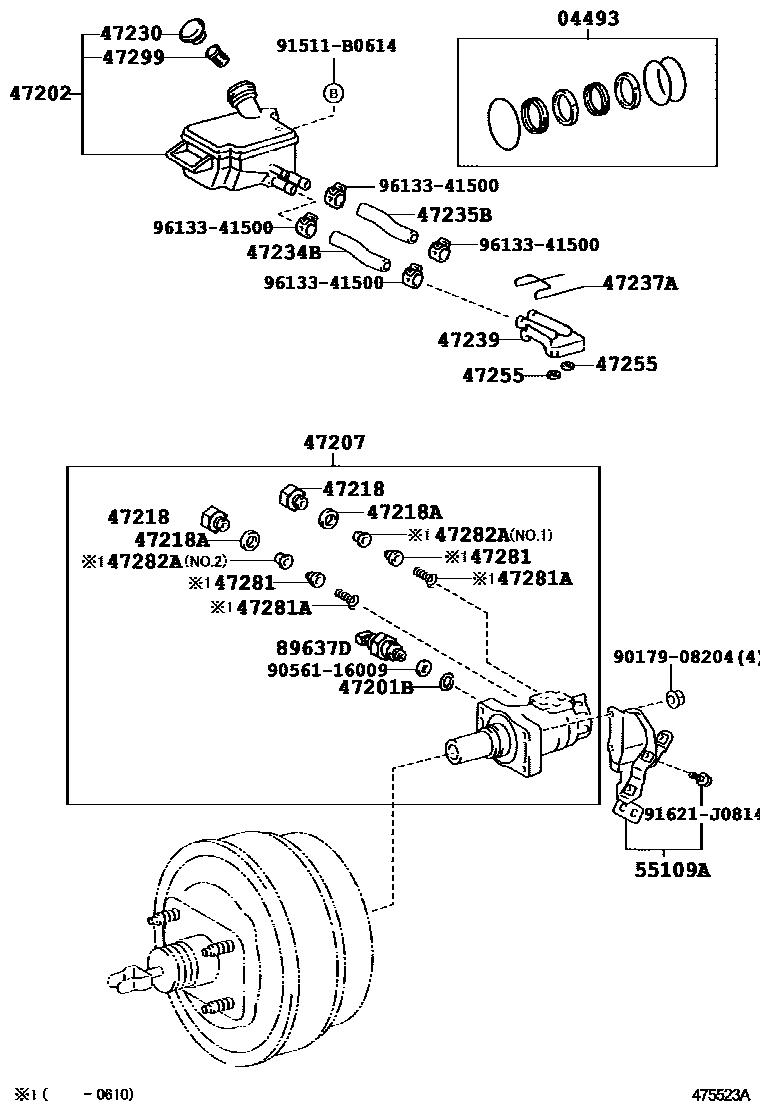

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-36230iXKU414,424200610

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90301-15014iXKU414,424200610

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-37051iXKU414,424..30T,35T200310-200401

main47220-37080iXKU414,424..30T,35T200401-200407

main47220-37081iXKU414,424..30T,35T200407-200610

main47220-37091iXKU414..6FC200801

main47220-37110iXKU414..20T200610-200909

main47220-37111iXKU414..20T200909

47207CYLINDER SUB-ASSY, BRAKE MASTER LESS RESERVOIR TANK

main47207-36021iXKU414..20T200310-200401

main47207-37050iXKU414,424..30T,35T200310-200401

main47207-37051iXKU414,424..30T,35T200401-200606

main47207-37052iXKU414,424..30T200610

main47207-37060iXKU414..20T200401-200610

main47207-37091iXKU414..20T200610

47218PLUG, MASTER CYLINDER FLUID OUTLET

main47218-36091×2iXKU414,424200310-200610

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-16013×2iXKU414,424200310-200610

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-37020iXKU414,424..30T,35T200310-200401

main47230-37080iXKU414,424..30T,35T200401-200610

sub47230-37081

47234BTUBE, RESERVOIR, NO.1

main47234-37080iXKU414,424..30T,35T200310-200401

main47234-37100iXKU414..20T200310-200610

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-37070iXKU414,424..30T200610-201106

main47235-37090iXKU414,424..30T,35T200310-200401

47237ASTOPPER, BREKE MASTER CYLINDER RESERVOIR TANK

main47237-36020iXKU414,424..30T,35T200310-200606

47239CONNECTOR, BRAKE MASTER CYLINDER RESERVOIR

main47239-37010iXKU414,424..30T,35T200310-200606

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-52010×2iXKU414,424..30T,35T200310-200606

47281VALVE, BRAKE MASTER CYLINDER OUTLET CHECK

main47281-36010×2iXKU414,424..30T,35T200310-200607

47281ASPRING COMPRESSION(FOR OUTLET CHECK VALVE)

main90905-01054×2iXKU414,424..30T,35T200310-200607

47282ASEAT, OUTLET CHECK VALVE, NO.1

main47282-36010iXKU414..20T200310-200610

main47282-36020iXKU414..20T200310-200610

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-28010iXKU414..20T200610

main47299-37080iXKU414,424..30T,35T200406-200610

55109ASUPPORT SUB-ASSY, BRAKE MASTER CYLINDER

main55109-37010iXKU414,424200310-200610

main55109-37011iXKU414,424200801-201106

89637DSENSOR, OIL PRESSURE

main89637-51010iXKU414,424200310-200610

9017908204

main90179-08204

9056116009

main90561-16009

91511B0614

main91511-B0614

91621J0814

main91621-J0814

9613341500

main96133-41500

23 parts on this diagram · 1 diagram in section
