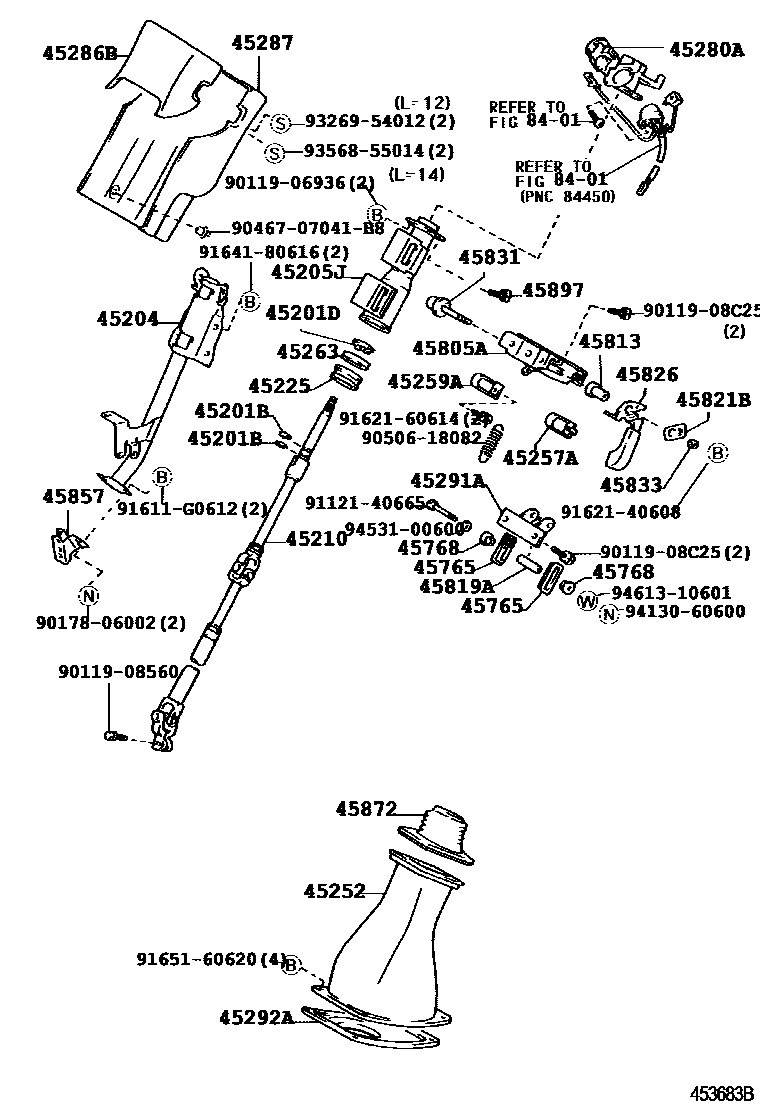

STEERING COLUMN & SHAFT
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
45201DRING(FOR STEERING MAIN SHAFT)
45204TUBE ASSY, STEERING COLUMN, LOWER
45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER
45210SHAFT ASSY, STEERING MAIN
45225BLOCK, BEARING
45252TUBE, STEERING COLUMN, LOWER
MD.CHARCOAL,TRIM1#
45257APLATE, STEERING COLUMN ENERGY ABSORBING
45259ASHEET, COLUMN HOLE COVER SILENCER
45263RING, STEERING COLUMN, NO.1
45291ASUPPORT, STEERING COLUMN TUBE
45292ACOVER, MAIN SHAFT LOWER DUST
45765GUIDE, TELESCOPIC STEERING
45768BUSH, TELESCOPIC STEERING
45805ASUPPORT SUB-ASSY, TILT STEERING
45813COLLAR, TILT STEERING SUPPORT, NO.1
45819ACOLLAR(FOR TILT LEVER RETAINER)
45821BREINFORCE, TILT STEERING SUPPORT, NO.1
45826LEVER, STEERING TILT
45831BOLT, TILT LEVER LOCK, NO.1
45833NUT, TILT STEERING ADJUSTING, NO.1
45857BRACKET, TILT STEERING COLUMN TUBE, NO.1
45872COVER, STEERING COLUMN TUBE
45897BOLT, STEERING LOCK SET
8401
9011906936
main90119-06936
9011908560
main90119-08560
9011908C25
main90119-08C25
9017806002
main90178-06002
9046707041B8
main90467-07041B8
9050618082
main90506-18082
9112140665
main91121-40665
91611G0612
main91611-G0612
9162140608
main91621-40608
9162160614
main91621-60614
9164180616
main91641-80616
9165160620
main91651-60620
9326954012
main93269-54012
9356855014
main93568-55014
9413060600
main94130-60600
9453100600
main94531-00600
9461310601
main94613-10601
45 parts on this diagram · 3 diagrams in section
