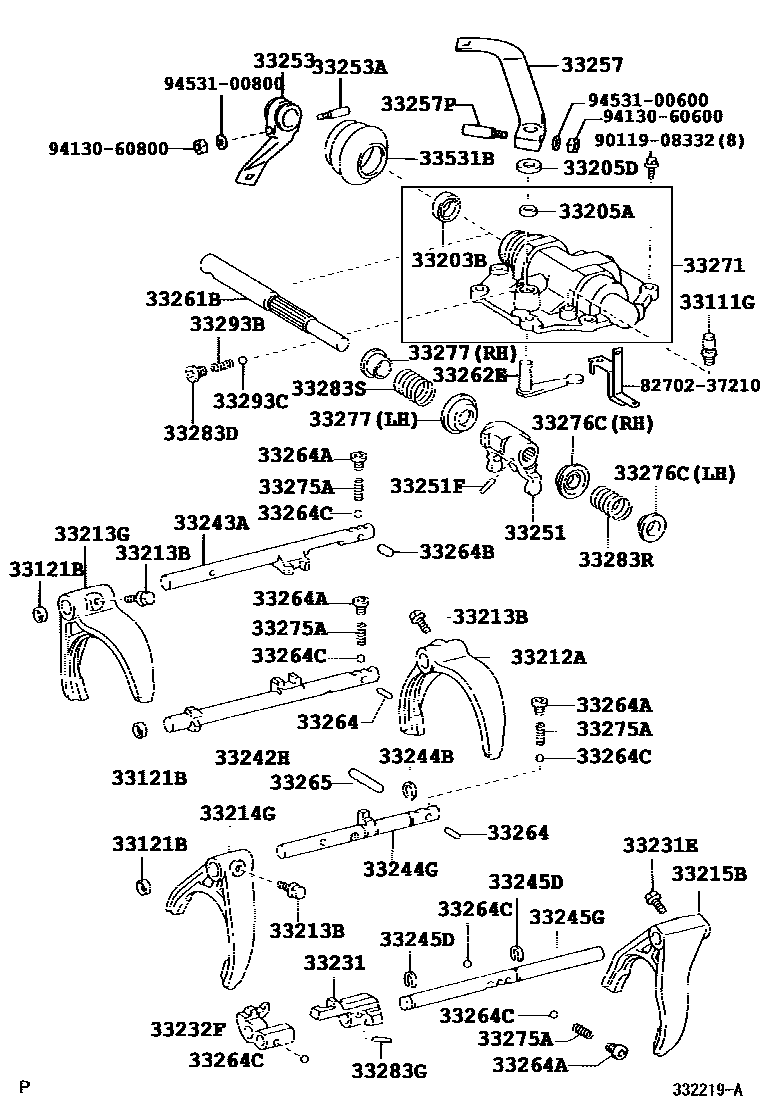

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33111GPLUG, BREATHER(FOR MANUAL TRANSMISSION)
33121BPLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER)
33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)
33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)
33205DWASHER(FOR OUTER LEVER OIL SETTING)
33212AFORK, GEAR SHIFT, NO.1
33213BBOLT(FOR SHIFT FORK SET)
33213GFORK, GEAR SHIFT, NO.2
33214GFORK, GEAR SHIFT, NO.3
33215BFORK, GEAR SHIFT, NO.4
33231HEAD, REVERSE SHIFT
33231EBOLT(FOR REVERSE SHIFT HEAD)
33232FHEAD, GEAR SHIFT, NO.1
33242HSHAFT, GEAR SHIFT FORK, NO.1
33243ASHAFT, GEAR SHIFT FORK, NO.2
33244BRING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33244GSHAFT, GEAR SHIFT FORK, NO.3
33245DRING, SHAFT SNAP (FOR 3RD & 4TH SHIFT FORK SHAFT)
33245GSHAFT, GEAR SHIFT FORK, NO.4
33251LEVER, SHIFT & SELECT
33251FPIN OR BOLT (FOR SHIFT & SELECT LEVER)
33253LEVER, SHIFT OUTER, NO.1
33253APIN, LEVER LOCK (FOR SHIFT OUTER LEVER)
33257LEVER, SELECT OUTER
33257PPIN, SELECT OUTER LEVER LOCK
33261BSHAFT, SHIFT LEVER
33262ESHAFT, SELECT LEVER
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
33264APLUG, INTERLOCK HOLE
33264BROLLER, NO.1 (FOR SHIFT INTERLOCK )
33264CBALL (FOR SHIFT INTERLOCK)
33265PIN, SHIFT INTERLOCK, NO.2
33271HOUSING, SHIFT LEVER SHAFT
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
33276CSEAT, SELECT SPRING
33277SEAT, SELECT SPRING, NO.2
33283DPLUG (FOR REVERSE RESTRICT PIN)
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33283RSPRING, COMPRESSION (FOR REVERSE RESTRICT PIN RH)
33283SSPRING, COMPRESSION (FOR REVERSE RESTRICT PIN LH)
33293BSPRING, COMPRESSION (FOR REVERSE RESTRICT BALL)
33293CBALL (FOR REVERSE RESTRICT)
33531BBOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT)
8270237210BRACKET SUB-ASSY, WIRING HARNESS
9011908332
9413060600
9413060800
9453100600
9453100800
49 parts on this diagram · 2 diagrams in section
