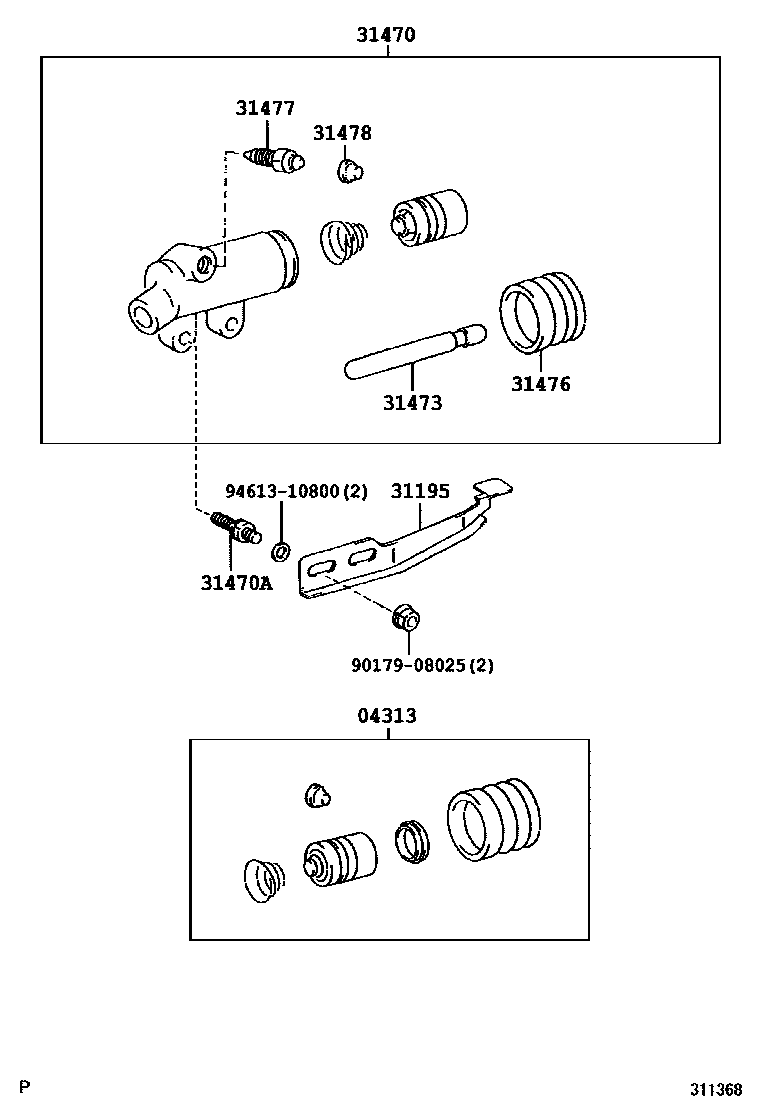

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-37030iXKU414,424200310-200610

31195PLATE, CLUTCH DISC WEAR INDICATOR

main31195-37100iXKU414,424200310-200610

main31195-37110iXKU414,424..6F200610

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-37080iXKU414,424200310-200610

sub31470-37081

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90109-08248iXKU414,424200310-200610

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-37050iXKU414,424200310-200610

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iXKU414,424200310-200610

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iXKU414,424200310-200610

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iXKU414,424200310-200610

9017908025

main90179-08025

9461310800

main94613-10800

10 parts on this diagram · 1 diagram in section
