CLUTCH BOOSTER

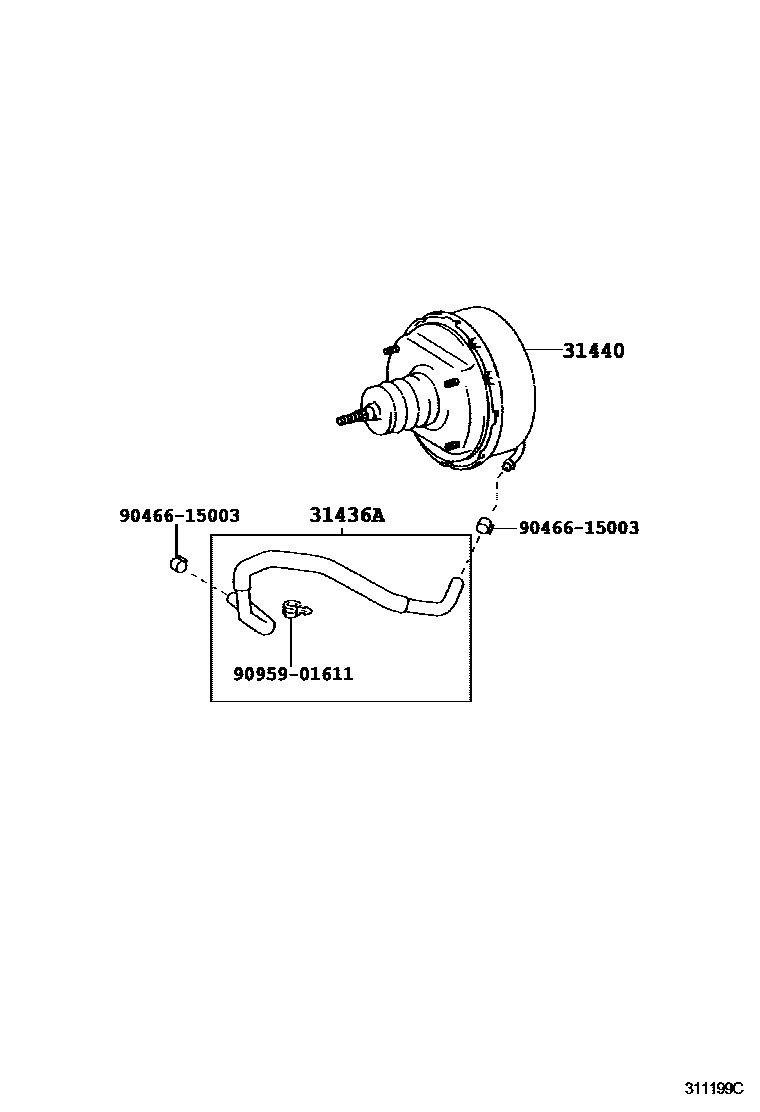

Parts diagram

31436AHOSE, NO.1(FOR CLUTCH BOOSTER VACUUM)

main31436-37030i200310-200610

31440BOOSTER ASSY, CLUTCH W/AIR CLEANER

main31440-37030i200310-200503

main31440-37041i200610

9046615003

main90466-15003

9095901611

main90959-01611

4 parts on this diagram · 1 diagram in section
