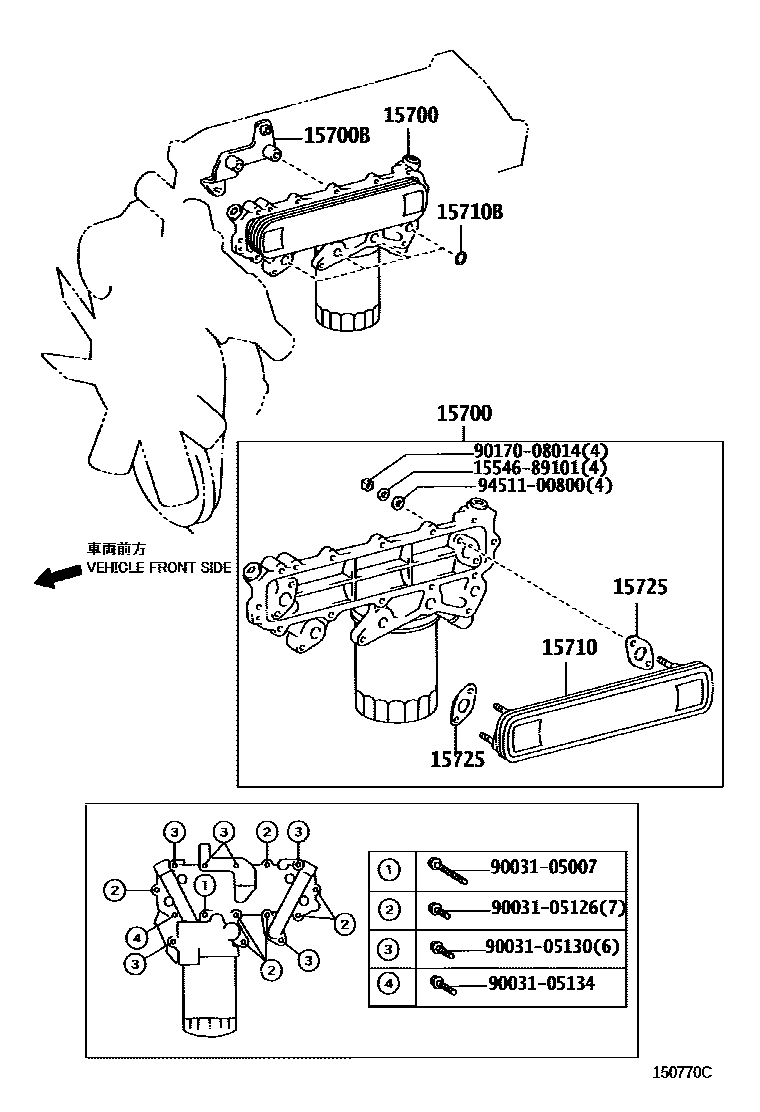

ENGINE OIL COOLER

0001 1 0002 1

15700COOLER ASSY, OIL W/BRACKET

main15700-78130iN04C..XKU414,424200310-200406

sub15700-78131

main15700-78131iN04C..XKU414,424200406-200610

sub15700-78132

main15700-78160iN04C..XKU414,424200610-200802

sub15700-78161

main15700-78161iN04C..XKU414,424200802-200905

sub15700-78162

main15700-78162iN04C..XKU414,424200905-200907

sub15700-78163

main15700-78163iN04C..XKU414,424200907-201106

sub15700-E0013

15700BBRACKET(FOR OIL COOLER)

main23211-78401iN04C..XKU414,424200610

sub82702-E1530

main82702-37420iN04C..XKU414,424200310-200610

15710COOLER ASSY, OIL

main15710-78050iN04C..XKU414,424200610

subS1571-22250

main15710-89104iN04C..XKU414,424200310-200610

sub15710-78060

15710BRING, O(FOR OIL COOLER)

main90033-01101iN04C..XKU414,424200904

subSZ301-19015

main90301-19005iN04C..XKU414,424200310-200904

15725GASKET, OIL COOLER COVER

main15725-78020iN04C..XKU414,424200310-200610

subS1571-71270

1554689101WASHER, THRUST (FOR CENTRIFUGAL OIL FILTER)

main15546-89101

9003105007

main90031-05007

9003105126

main90031-05126

9003105130

main90031-05130

9003105134

main90031-05134

9017008014

main90170-08014

9451100800

main94511-00800

12 parts on this diagram · 2 diagrams in section
