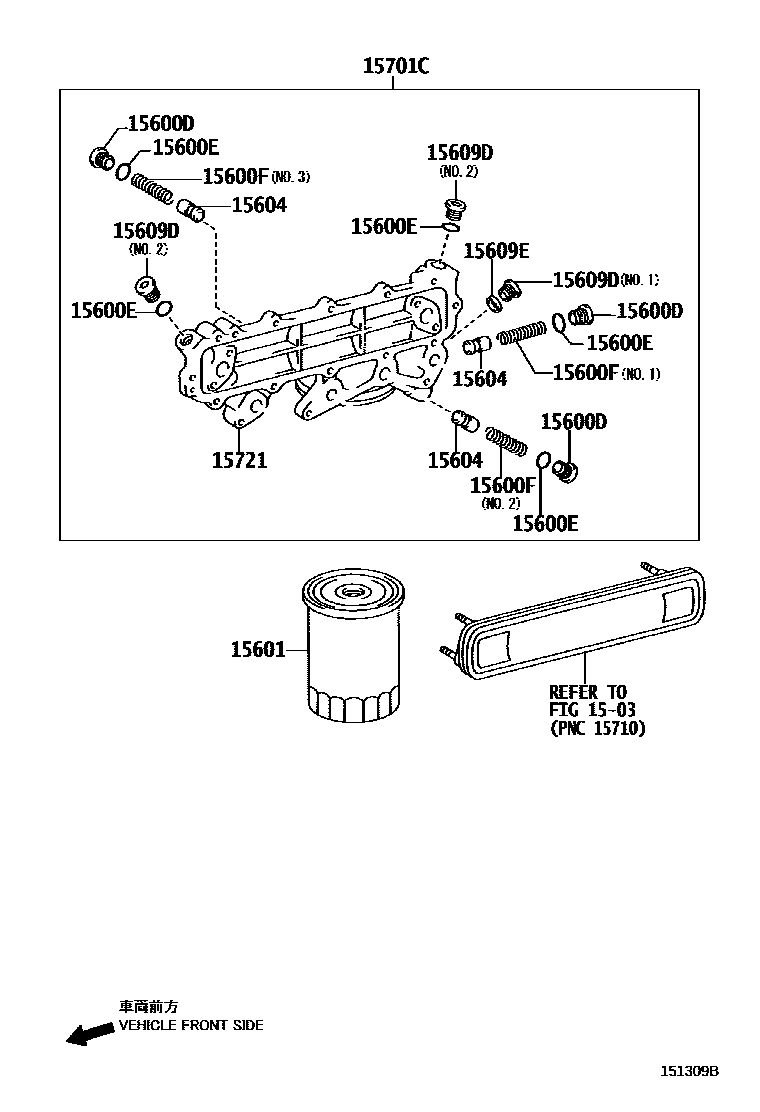

OIL FILTER

1503

15600DPLUG(FOR OIL FILTER)

main15529-89107iN04C..XKU414,424200310-200610

subS1571-61110

15600EWASHER(FOR OIL FILTER)

main90033-01053iN04C..XKU414,424200310-200610

subSZ301-18015

15600FSPRING, COMPRESSION(FOR OIL FILTER)

main15532-89101iN04C..XKU414,424200310-200610

subS1566-11370

main15532-89106iN04C..XKU414,424200310-200610

subS1566-11560

main15661-78010iN04C..XKU414,424200310-200610

subS1566-11250

15601FILTER SUB-ASSY, OIL

main15613-78010iN04C..XKU414,424200610-200702

sub15613-78020

main15613-78020iN04C..XKU414,424200702-200802

sub15613-78021

main15613-78021iN04C..XKU414,424200802

sub15613-E0080

main15613-89105iN04C..XKU414,424200310-200610

subS1560-72210

15604VALVE SUB-ASSY, OIL SAFETY

main15690-89101iN04C..XKU414,424200310-200610

subS1571-41120

15609DPLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)

main15529-89108iN04C..XKU414,424200310-200610

subS1571-61070

main15529-89109iN04C..XKU414,424200310-200610

subS1572-61110

15609EGASKET, W/HEAD STRAIGHT SCREW PLUG

main90033-01067iN04C..XKU414,424200310-200610

15701CCOVER SUB-ASSY, OIL COOLER

main15720-78030iN04C..XKU414,424200610

subS1572-01581

main15720-89103iN04C..XKU414,424200310-200406

sub15720-89104

main15720-89104iN04C..XKU414,424200406-200610

15721COVER, OIL COOLER

main15701-78060iN04C..XKU414,424200610

subS1570-12401

main15701-89105iN04C..XKU414,424200310-200406

sub15701-89106

main15701-89106iN04C..XKU414,424200406-200610

10 parts on this diagram · 1 diagram in section
