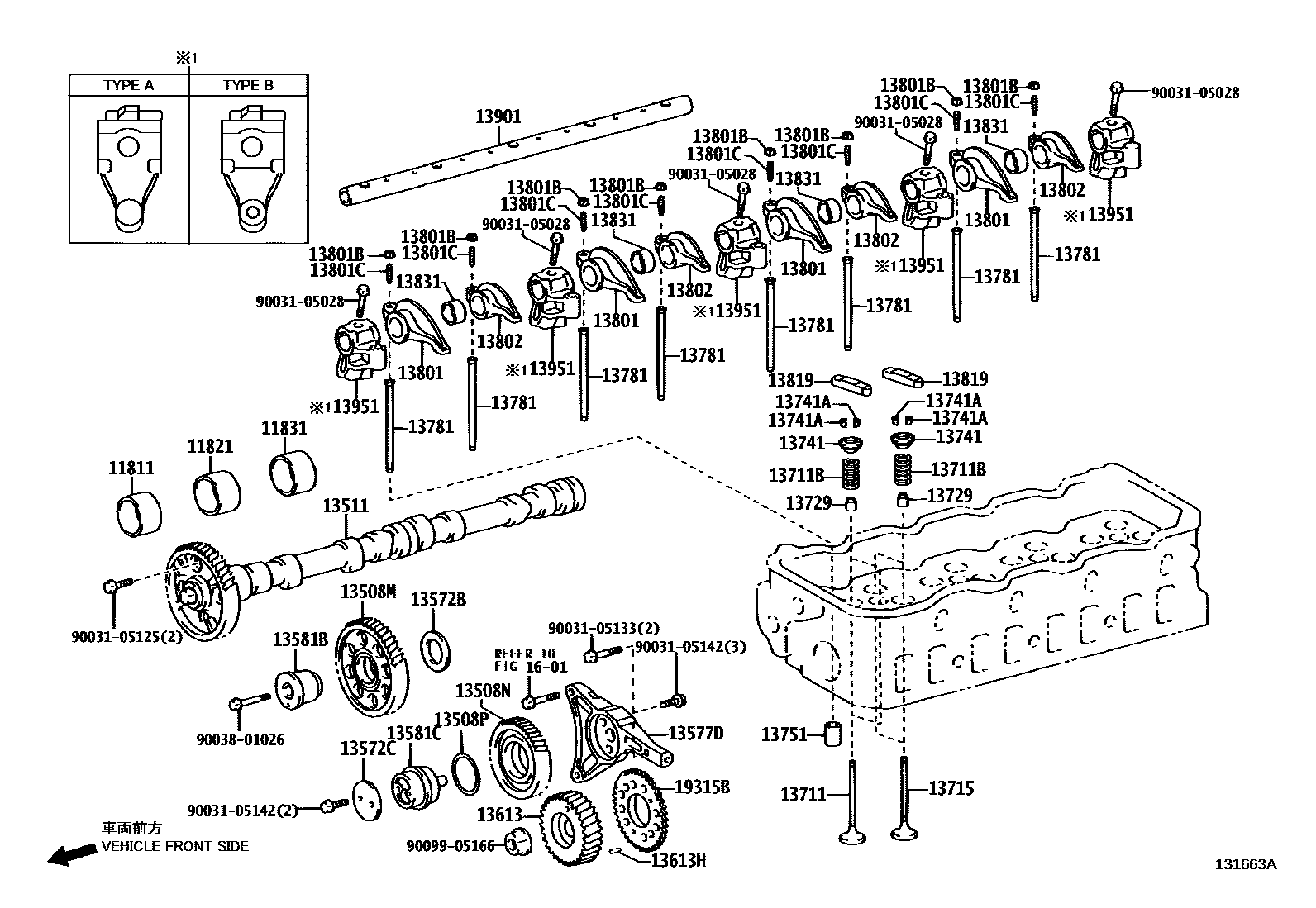

CAMSHAFT & VALVE
11811BEARING, CAMSHAFT, NO.1
subS1181-11230
11821BEARING, CAMSHAFT, NO.2
subS1182-11240
11831BEARING, CAMSHAFT, NO.3
subS1183-11180
13508PRING, O(FOR IDLE GEAR)
13572BPLATE, IDLE GEAR THRUST, NO.1
subS1357-21320
13572CPLATE, IDLE GEAR THRUST, NO.2
subS1357-21480
13577DPLATE, LOCK
subS1364-51081
13613GEAR, INJECTION PUMP DRIVE
subS1361-32231
13613HPIN, STRAIGHT(FOR INJECTION PUMP DRIVE GEAR)
13711VALVE, INTAKE
subS1371-11800
13711BSPRING, COMPRESSION(FOR INNER)
13715VALVE, EXHAUST
subS1371-51870
13741RETAINER, VALVE SPRING
subS1373-51460
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
sub13751-E0040
13781ROD, VALVE PUSH
subS1378-11500
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
sub13811-E0190
13801BNUT, HEXAGON(FOR VALVE ADJUSTING)
13801CSCREW, VALVE ADJUSTING
subS1378-71161
13802ARM SUB-ASSY, VALVE ROCKER, NO.2
sub13811-E0200
13819BRIDGE, VALVE
sub13819-E0051
13831BUSHING, VALVE ROCKER ARM
subSZ910-29119
13901SHAFT SUB-ASSY, VALVE ROCKER, NO.1
sub13901-E0030
1601
19315BPLATE, CRANK ANGLE SENSOR
subS2119-11221
9003105028
main90031-05028
9003105125
main90031-05125
9003105133
main90031-05133
9003105142
main90031-05142
9003801026
main90038-01026
9009905166
main90099-05166
38 parts on this diagram · 1 diagram in section
