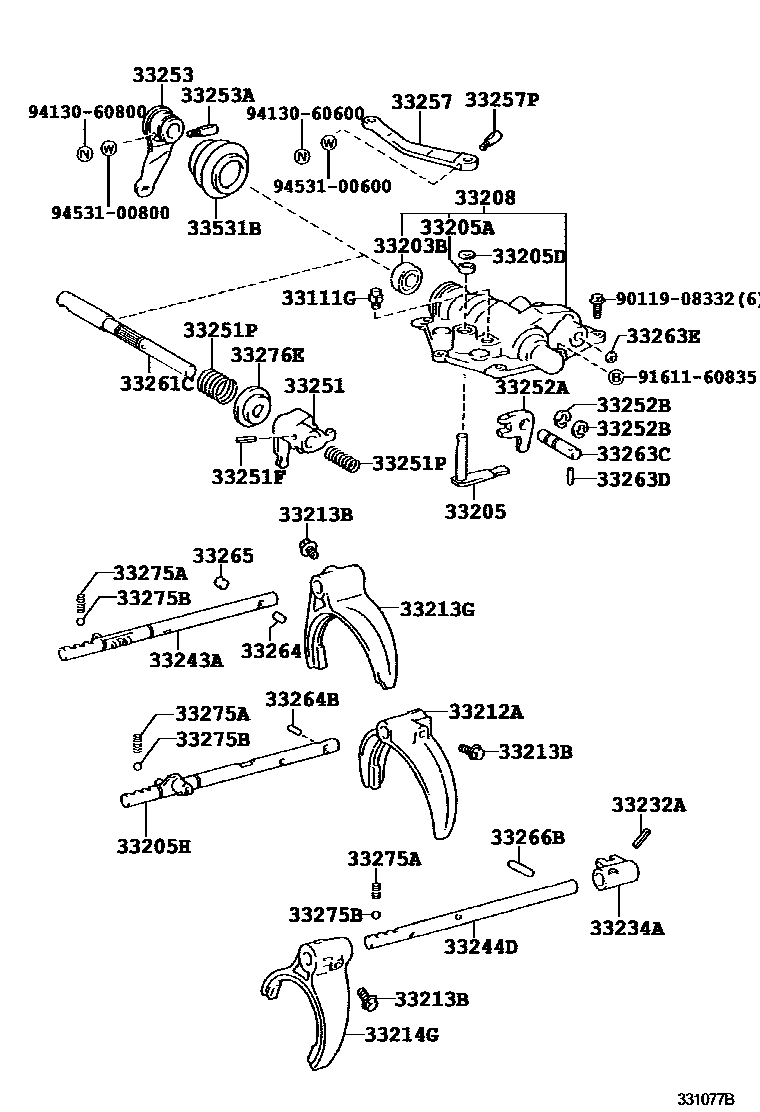

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1M155 0002 1H260,H261 0003 1H350,H351 0005 1MYY6P 0007 1MYY5A 0009 1MZZ6R 0010 1M550 0011 1M550 0012 1MYY6S 0013 1MZZ6R

33111GPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03090iXZU411,412,421..6F;BU400,410,420,430,XZU382,410,420,430..MTM¥470199905-200705

mainSU00200274iXZU388,404,413,414,415,423,424,433..MTM..(DCRL,DSLL)200310-200705

mainSU00200471iXZU404,414,424,434..6F..(DCRTK,DCRTL,DCRTM,DCRUE)200610

33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1

main33203-37020iXZU401,411,421..5F¥5,300200406-200610

33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)

main90311-22009iXZU412..CNG,LPG¥190199905-200705

mainSU00200355iXZU388,404,413,414,415,423,424,433..MTM..(DCRL,DSLL)200310-200705

33205SHAFT SUB-ASSY, SELECT LEVER

main33205-37040iXZU404,414,424,454..5F¥1,260200406-200610

main33262-36050iXZU382¥1,740199908-200406

main33262-37020iBZU410¥1,960199905-200705

33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)

main90311-13001iXZU412..CNG,LPG¥180199905-200705

mainSU00200264iXZU404,414,424,434,488..MTM..(DCRTK,DCRTL,DCRTM,DCRUE)200310-200705

33205DWASHER(FOR OUTER LEVER OIL SETTING)

main90201-13029iXZU412..CNG,LPG¥110199905-200705

mainSU00200357iXZU388,404,413,414,415,423,424,433..MTM..(DCRL,DSLL)200310-200705

33205HSHAFT SUB-ASSY, GEAR SHIFT FORK, NO.1

main33205-37030iXZU382¥3,760199908-200406

33208HOUSING SUB-ASSY, SHIFT LEVER SHAFT

main33207-36041iXZU382¥9,400200004-200406

main33207-36051iXZU382¥14,800199908-200004

mainSU00200349iXZU414..DCR200310-200705

mainSU00200516iXZU388200406-200610

subSU002-00934¥67,400

mainSU00200536iXZU413,423,433200406-200605

subSU002-01025¥117,000

mainSU00200986iXZU404,414,424,434..6F..(DCRTK,DCRTL,DCRTM,DCRUE)200610

subSU002-01145¥74,500

mainSU00201025iXZU413,423,433200606-200610

subSU002-01133¥77,200

33212AFORK, GEAR SHIFT, NO.1

main33210-37010iXZU401,411,421..5F¥10,100200406-200902

sub33210-37020¥6,200

main33210-37020iXZU404,414,424,454..5F¥6,200200902

main33212-36031iXZU382¥3,450199908-200406

main33212-60050iXZU412..CNG,LPG¥3,090199905-200705

mainSU00200240iXZU414..DCR200310-200705

mainSU00200401iXZU413,423,433200406-200610

33213BBOLT(FOR SHIFT FORK SET)

main90105-07001iXZU382¥90199908-200406

main90105-08211iXZU412..CNG,LPG¥90199905-200705

33213GFORK, GEAR SHIFT, NO.2

main33213-36050iXZU382¥2,660199908-200406

main33213-60060iXZU412..5F..DSL;BZU410,XZU40#,411,421..5F¥3,790199905-200705

main33220-37010iXZU404,414,424,454..5F¥10,900200406-200902

sub33220-37020¥6,600

main33220-37020iXZU404,414,424,454..5F¥6,600200902-201106

mainSU00200322iXZU404,414,415,424..6F..(DCRL,DSLL)200310-200705

subSU002-00865¥10,900

mainSU00200443iXZU413,423,433200406-200610

mainSU00200517iXZU388200406-201106

subSU002-01056¥8,400

mainSU00200939iXZU404,414,424..6F..(DCRTK,DCRTM,DCRUE)200610-201106

subSU002-01056¥8,400

mainSU00200941iXZU414,424,434..DCRTL200610-201106

subSU002-01063¥8,400

33214GFORK, GEAR SHIFT, NO.3

main33214-36060iXZU382¥3,110199908-200406

main33214-37020iXZU404,414,424,454..5F¥4,150200406-200610

sub33214-36070¥4,160

main33230-60011iBU410,420,430,XZU410,411,412,42#,430..6F¥3,150199905-200406

mainSU00200245iXZU388200406-200610

mainSU00200347iXZU414..DCR200310-200705

mainSU00200444iXZU413,423,433200406-200610

mainSU00200708iXZU404,414,424..6F..(DCRTK,DCRTM,DCRUE)200610

mainSU00200942iXZU414,424,434..DCRTL200610

subSU002-01064¥8,400

33232APIN, SLOTTED SPRING (FOR SHIFT HEAD SET)

main90254-05016iXZU382¥140199908-200406

mainSU00200127iXZU414,415200310-200705

33234AHEAD, GEAR SHIFT, NO.3

main33234-36011iXZU382¥930199908-200406

mainSU00200281iXZU404,414,415,424..6F..(DCRL,DSLL)200310-200705

33243ASHAFT, GEAR SHIFT FORK, NO.2

main33243-37020iXZU382¥3,460199908-200406

main33243-37031iBU410,420,430,XZU410,411,412,42#,430..6F¥5,500199905-200406

main33243-37050iXZU404,414,424,454..5F¥3,090200406-200905

main33243-37060iXZU404,414,424,454..5F¥4,910200905

sub33243-37061¥2,860

main33244-37040iXZU412..CNG,LPG¥4,190199905-200705

mainSU00200332iXZU404,414,415,424..6F..(DCRL,DSLL)200310-200705

mainSU00200404iXZU413,423,433200406-200610

mainSU00200519iXZU388200406-200610

mainSU00200709iXZU404,414,424..6F..(DCRTK,DCRTM,DCRUE)200610

mainSU00200960iXZU414,424,434..DCRTL200610-200808

subSU002-01034¥11,900

mainSU00201034iXZU414,424,434..DCRTL200808-200904

33244DSHAFT, GEAR SHIFT FORK, NO.3

main33244-37020iXZU382¥2,240199908-200406

main33244-37050iXZU401,411,421..5F¥4,910200406-200512

main33244-37060iXZU401,411,421..5F¥4,910200512-200902

sub33244-37070¥3,090

main33244-37070iXZU404,414,424,454..5F¥3,090200902

33251LEVER, SHIFT & SELECT

main33251-36090iXZU382¥3,760199908-200406

main33251-37030iBU410,420,430,XZU410,411,412,42#,430..6F¥10,900199905-200406

main33251-37040iBZU410¥10,400199905-200705

mainSU00200249iXZU414..DCR200310-200705

33251FPIN OR BOLT (FOR SHIFT & SELECT LEVER)

main90254-05016iXZU412..CNG,LPG¥140199905-200705

33251PSPRING (FOR SHIFT & SELECT LEVER)

main90501-12185iXZU412..5F..DSL;BU400,BZU410,XZU40#,411,421..5F¥100199905-200705

main90501-16090iXZU382¥130199908-200406

main90501-16186iXZU401,411,421..5F¥120200406-200610

main90501-18121iXZU382¥180199908-200406

mainSU00200268iXZU488200406-200610

mainSU00200269iXZU388200406-200610

mainSU00200352iXZU404,414,424,434..6F..(DCRTK,DCRTL,DCRTM,DCRUE)200310-200705

mainSU00200353iXZU404,414,424,434..6F..(DCRTK,DCRTL,DCRTM,DCRUE)200310-200705

33252ALEVER, SHIFT, INNER NO.2

main33252-36010iXZU382¥930199908-200406

main33252-37020iXZU412..5F..DSL;BU400,BZU410,XZU40#,411,421..5F¥740199905-200705

mainSU00200241iXZU488200406-200610

mainSU00200334iXZU404,414,424..6F..(DCRTK,DCRTM,DCRUE)200310-200705

mainSU00200405iXZU414,424,434..DCRTL200406-200610

33252BRING, E (FOR SHIFT INNER LEVER)

main90523-12001iBU400,XZU382¥120199905-200705

33253LEVER, SHIFT OUTER, NO.1

main33253-37060iXZU382¥2,340199908-200406

main33253-37080iXZU412..CNG,LPG¥1,460199905-200705

mainSU00200246iXZU404,414,424..6F..(DCRTK,DCRTM,DCRUE)200310-200705

mainSU00200528iXZU488200406-200610

mainSU00200540iXZU413,423,433200406-200610

mainSU00200985iXZU414,424,434..DCRTL200610

33253APIN, LEVER LOCK (FOR SHIFT OUTER LEVER)

main33282-36030iBZU410¥410199905-200705

33257LEVER, SELECT OUTER

main33257-37060iXZU382¥890199908-200406

main33257-37080iXZU412..5F..DSL;BZU410,XZU40#,411,421..5F¥870199905-200705

main33257-37090iXZU401,411,421..5F¥1,050200406-200610

mainSU00200354iXZU414..DCR200310-200705

mainSU00200541iXZU413,423,433200406-200610

mainSU00200673iXZU488200406-200610

subSU002-00984¥3,670

mainSU00200983iXZU404,414,424,434..6F..(DCRTK,DCRTL,DCRTM,DCRUE)200610

33257PPIN, SELECT OUTER LEVER LOCK

main33282-35010iXZU401,411,421..5F¥160199905-200705

mainSU00200271iXZU414,415200310-200705

33261CSHAFT, SHIFT & SELECT LEVER

main33261-36070iXZU382¥2,560199908-200406

33263CSHAFT, SHIFT LEVER, NO.2

main33263-36010iXZU382¥1,580199908-200406

main33263-37010iXZU412..5F..DSL;BU400,BZU410,XZU40#,411,421..5F¥580199905-200705

33263DPIN (FOR SHIFT LEVER SHAFT)

main90250-04060iXZU382¥80199908-200406

main90250-04110iXZU412..5F..DSL;BU400,BZU410,XZU40#,411,421..5F¥90199905-200705

33263EPLUG (FOR SHIFT LEVER SHAFT)

main90331-14004iBZU410¥370199905-200705

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main90250-10011iXZU382¥100199908-200406

main90250-10023iXZU412..CNG,LPG¥80199905-200705

33264BROLLER, NO.1 (FOR SHIFT INTERLOCK )

main90361-05001iXZU382¥220199908-200406

main90361-10003iXZU411,412,421..6F;BU400,410,420,430,XZU410,420,430..MTM¥130199905-200705

33265PIN, SHIFT INTERLOCK, NO.2

main90250-10015iXZU382..20T¥100199908-200406

main90250-10024iBU410,420,430,XZU410,411,412,42#,430..6F¥190199905-200406

main90250-10035iXZU412..CNG,LPG¥230199905-200705

33266BPIN, SHIFT INTERLOCK, NO.3

main90250-10014iXZU382¥130199908-200406

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-14155iXZU412..CNG,LPG¥70199905-200705

main90501-14194iXZU404,414,424,454..5F¥80200506-200610

main90501-15044iXZU401,411,421..5F¥100200406-200610

main90501-15055iXZU404,414,424,454..5F¥120200610

main90501-16145iXZU382¥90199908-200406

33275BBALL, SHAFT DETENT

main90360-10003iXZU382¥100199908-200406

33276ESEAT, SELECT SPRING, NO.1

main33276-36011iXZU382¥410199908-200406

main33276-37050iXZU401,411,421..5F¥280200406-200610

mainSU00200250iXZU388200406-200610

33531BBOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT)

main33531-36060iXZU382¥480199908-200406

main33531-37020iXZU411,412,421..6F;BU400,410,420,430,XZU410,420,430..MTM¥1,050199905-200705

9011908332

main90119-08332¥370

9161160835

main91611-60835¥90

9413060600

main94130-60600¥80

9413060800

main94130-60800¥60

9453100600

main94531-00600¥120

9453100800

main94531-00800¥160

43 parts on this diagram · 10 diagrams in section
