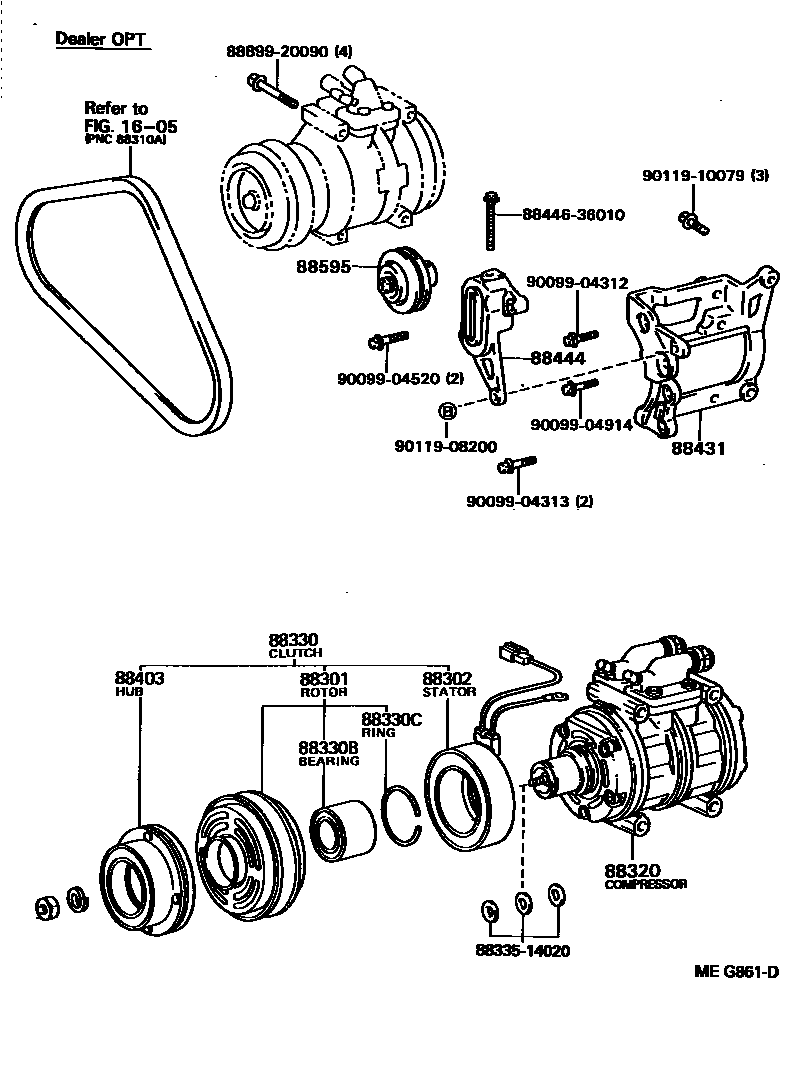

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1������ �������� ���

1605

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-22030iBU60198601-199309

main88412-26030iBU60198808-199309

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-25020iBU60198601-199309

main88411-36270iBU60198808-199309

88320COMPRESSOR ASSY, COOLER

main88320-36140iBU60198601-198805

main88320-36141iBU60198805-198808

main88320-36280iBU60198808-199309

sub88320-35H91

main88320-36380iBU60199309-199505

sub88320-35H92

88330CLUTCH ASSY, MAGNET

main88410-36210iBU60198808-199309

sub88410-36260

main88410-36370iBU60199309-199505

main88410-60070iBU60198808-199309

88330BBEARING, MAGNET CLUTCH

main90099-10133iBU60198808-199309

main90099-10162iBU60198805-198808

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90099-07094iBU60198805-199309

main90099-07114iBU60198601-198805

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-12030iBU60198601-198808

main88403-16011iBU60198808-199309

main88403-30300iBU60199309-199505

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-36190iBU60198601-198808

main88431-36240iBU60..N..3D198710-198808

main88431-36250iBU60..N..3D198710-198808

main88431-36260iBU60..N..3D198710-198808

main88431-36270iBU60..N..3D198710-198808

main88431-36400iBU60198808-198910

main88431-36401iBU60198910-198912

main88431-36402iBU60198910-198912

main88431-36460iBU60..N..3D198808-199309

main88431-36470iBU60..N..3D198808-199309

88444BRACKET, IDLE PULLEY

main88444-36110iBU60198601-198910

main88444-36121iBU60..N..3D198710-199309

main88444-36160iBU60198910-199505

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-12160iBU60198601-199505

8833514020GASKET KIT, OVERHAUL

main88335-14020

8844636010BOLT, IDLE PULLEY

main88446-36010

8889920090COVER, EVAPORATOR

main88899-20090

9009904312

main90099-04312

9009904313

main90099-04313

9009904520

main90099-04520

9009904914

main90099-04914

9011908200

main90119-08200

9011910079

main90119-10079

20 parts on this diagram · 3 diagrams in section
