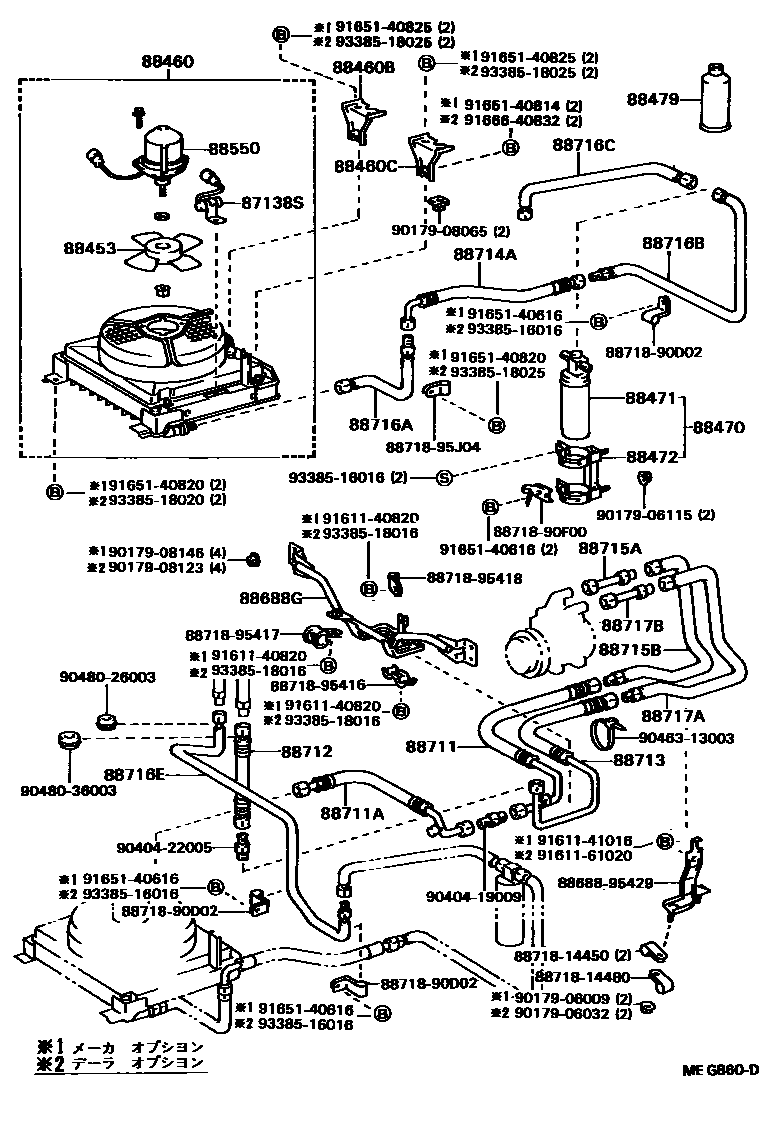

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1������ �������� ��� 0005 1 0006 1

87138SRESISTOR, BLOWER

main87138-95411iBU60198601-199505

88453FAN, COOLING (FOR CONDENSER)

main88453-95A01iBU60198601-199505

88460CONDENSER ASSY, COOLER

main88460-37070iBU60199309-199505

main88460-37080iBU60199309-199405

main88460-37081iBU60199405-199505

main88460-90F01iBU60198805-199309

main88460-90F01iBU60198703-198805

MAKER OPTION

main88460-90F02iBU60198805-199309

main88460-90F02iBU60198703-198805

DEALER OPTION

main88460-90F04iBU60..N..3D198710-199309

main88460-95404iBU60198601-198703

88460BBRACKET, COOLER CONDENSER, NO.1

main88688-95416iBU60198601-198703

88460CBRACKET, COOLER CONDENSER, NO.2

main88688-95417iBU60198601-198703

88470RECEIVER & DRYER ASSY, COOLER

main88470-37050iBU60199309-199505

main88470-90F00iBU60198601-198808

sub88470-90F03

main88470-90F01iBU60..N..3D198710-199309

main88470-90F03iBU60198808-199309

88471TANK, RECEIVER AIR CONDITIONER

main88471-16010iBU60198808-199309

main88471-20050iBU60199309-199505

sub88471-34010

main88471-90K00iBU60198601-198808

main88471-90K00iBU60198808-199309

main88471-95J00iBU60..N..3D198710-199309

88472BRACKET, RECEIVER TANK, NO.1

main88473-37010iBU60199309-199505

main88473-90D00iBU60198601-199309

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02001iBU60198601-199309

sub90986-02004

sub90986-02005

main90986-02004iBU60..N198910-199010

main90986-02008iBU60199309-199505

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main87104-37030iBU60199112-199505

sub88550-25030

main87104-95407iBU60198601-199112

88688GBRACKET, COOLER REFRIGERANT PIPE

main88688-90F01iBU60198601-198805

main88688-95430iBU60198601-198808

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-37100iBU60199309-199505

main88711-90F02iBU60..N..3D198710-198808

main88711-95407iBU60198601-198808

sub88711-37210

main88711-95415iBU60198808-199309

main88711-95416iBU60198808-199309

88711AHOSE, COOLER REFRIGERANT DISCHARGE, NO.2

main88711-37020iBU60199309-199505

main88711-90F00iBU60198601-198703

sub88711-37180

main88711-95417iBU60198808-199309

main88711-95421iBU60198703-198808

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-37110iBU60199309-199505

main88712-90F00iBU60198601-198808

sub88712-37240

main88712-90F00iBU60..N..3D198710-198808

sub88712-37240

main88712-90F05iBU60198808-199309

88713HOSE, COOLER REFRIGERANT SUCTION, NO.2

main88712-37140iBU60199309-199505

main88712-90F02iBU60..N..3D198710-198808

main88712-95409iBU60198601-198808

sub88712-37230

main88712-95421iBU60198808-199309

main88712-95422iBU60198808-199309

88714AHOSE, COOLER REFRIGERANT LIQUID, NO.2

main88721-37080iBU60199309-199505

main88721-90F00iBU60198601-198703

main88721-90F03iBU60198808-199309

main88721-95705iBU60198703-198808

main88721-95705iBU60..N..3D198710-199005

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88715-37020iBU60199309-199505

main88715-95403iBU60198601-198808

main88715-95407iBU60198808-199309

88715BPIPE, COOLER REFRIGERANT DISCHARGE, B

main88715-90F01iBU60..N..3D198710-198808

main88715-95406iBU60198601-198808

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-90F00iBU60198601-198703

main88716-90F14iBU60..N..3D198710-199309

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-37080iBU60199309-199505

main88716-90F01iBU60198601-198808

main88716-90F07iBU60..N..3D198710-199309

main88716-90F17iBU60198808-199309

88716CPIPE, COOLER REFRIGERANT LIQUID, C

main88716-37090iBU60199309-199505

main88716-90F02iBU60198601-198808

sub88716-90F18

main88716-90F06iBU60..N..3D198710-199005

main88716-90F18iBU60..N..3D199005-199309

main88716-90F18iBU60198808-199309

88716EPIPE, COOLER REFRIGERANT LIQUID, E

main88716-90F03iBU60198601-198808

main88716-90F09iBU60..N..3D198710-198808

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-90F01iBU60..N..3D198710-198808

main88717-95402iBU60198601-198808

88717BPIPE, COOLER REFRIGERANT SUCTION, B

main88717-37020iBU60199309-199505

main88717-95401iBU60198601-198808

main88717-95404iBU60198808-199309

8868895429BRACKET, COOLER DIAPHRAGM

main88688-95429

8871814450PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-14450

8871814480PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-14480

8871890D02PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-90D02

8871890F00PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-90F00

8871895416PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95416

8871895417PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95417

8871895418PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95418

8871895J04PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95J04

9017906009

main90179-06009

9017906032

main90179-06032

9017906115

main90179-06115

9017908065

main90179-08065

9017908123

main90179-08123

9017908146

main90179-08146

9040419009

main90404-19009

9040422005

main90404-22005

9046313003

main90463-13003

9048026003

main90480-26003

9048036003

main90480-36003

9161140820

main91611-40820

9161141016

main91611-41016

9161161020

main91611-61020

9165140616

main91651-40616

9165140814

main91651-40814

9165140820

main91651-40820

9165140825

main91651-40825

9166640832

main91666-40832

9338516016

main93385-16016

9338518016

main93385-18016

9338518020

main93385-18020

9338518025

main93385-18025

56 parts on this diagram · 6 diagrams in section
