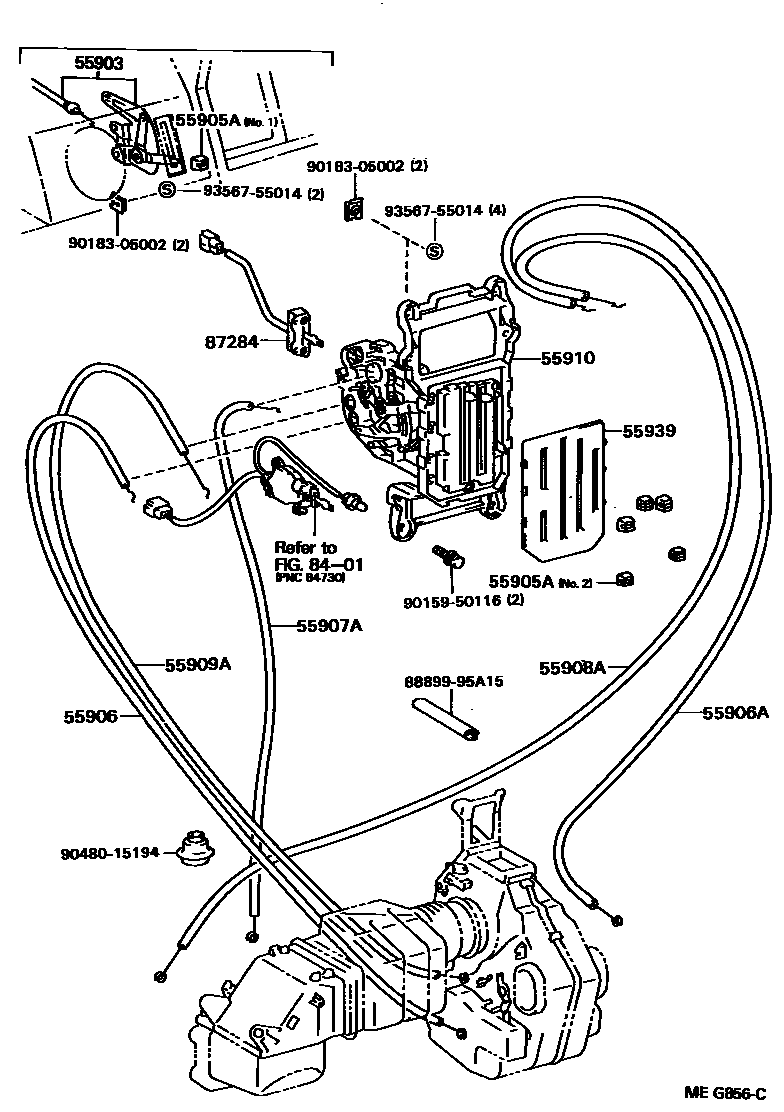

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1

55903LEVER SUB-ASSY, HEATER CONTROL

main55805-95403iBU60198601-199505

55905AKNOB, HEATER CONTROL

main55905-12050-01iBU60198601-198805

NO.1,BLACK

sub55905-20230

sub55905-35090

main55905-12070iBU60198805-199505

NO.2

55906CABLE SUB-ASSY, HEATER CONTROL

main55905-37020iBU60199111-199505

main55905-90F00iBU60198601-199111

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-37010iBU60199111-199505

main55906-90F00iBU60198601-199111

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-37010iBU60199111-199505

main55907-90F00iBU60198601-199111

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-90F00iBU60198601-199505

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-90F00iBU60198601-199505

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-36070iBU60199111-199505

main55910-95407iBU60198601-199111

sub55905-26010

sub55905-36010

sub55905-36020

sub55906-26020

sub55906-36030

sub55906-36040

sub55907-26020

sub55907-36010

sub55907-36020

55939ORNAMENT, HEATER CONTROL

main55519-95401iBU60198601-198708

main55519-95405iBU60198708-199505

8401

87284RESISTOR SUB-ASSY, VARIABLE

main88032-95400iBU60198601-199505

8889995A15COVER, EVAPORATOR

main88899-95A15

9015950116

main90159-50116

9018305002

main90183-05002

9048015194

main90480-15194

9356755014

main93567-55014

16 parts on this diagram · 2 diagrams in section
