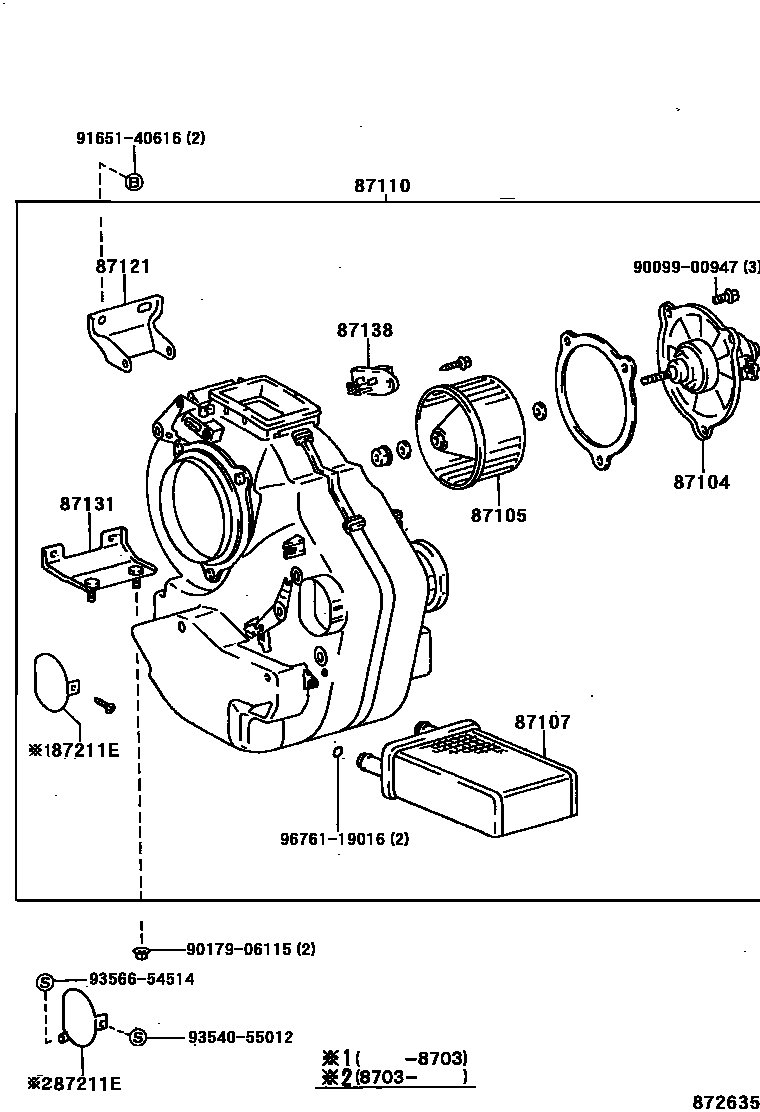

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-37040iBU60199112-199505

main87104-90F00iBU60198601-199112

87105FAN SUB-ASSY, HEATER BLOWER

main87105-16020iBU60198601-198911

main87105-90F00iBU60198911-199505

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-90D00iBU60198601-198603

main87107-90D01iBU60198601-198603

COLD SPEC

main87107-90D02iBU60198603-198605

COLD SPEC

main87107-90D03iBU60198605-198805

COLD SPEC

87110HEATER ASSY

main87110-90F00iBU60198601-198703

main87110-90F01iBU60198601-198605

COLD SPEC

main87110-90F02iBU60198605-198703

main87110-90F03iBU60198703-199505

main87110-90F04iBU60198703-198805

87121BRACKET, HEATER, FRONT RH

main87121-90F00iBU60198601-199505

87131BRACKET, HEATER, FRONT LH

main87121-90F01iBU60198601-199505

87138RESISTOR, HEATER BLOWER

main87138-95402iBU60198601-199201

sub87138-37100

main87138-95413iBU60199201-199505

87211EDUCT, AIR

main87211-90D05iBU60198601-199505

9009900947

main90099-00947

9017906115

main90179-06115

9165140616

main91651-40616

9354055012

main93540-55012

9356654514

main93566-54514

9676119016

main96761-19016

14 parts on this diagram · 1 diagram in section
