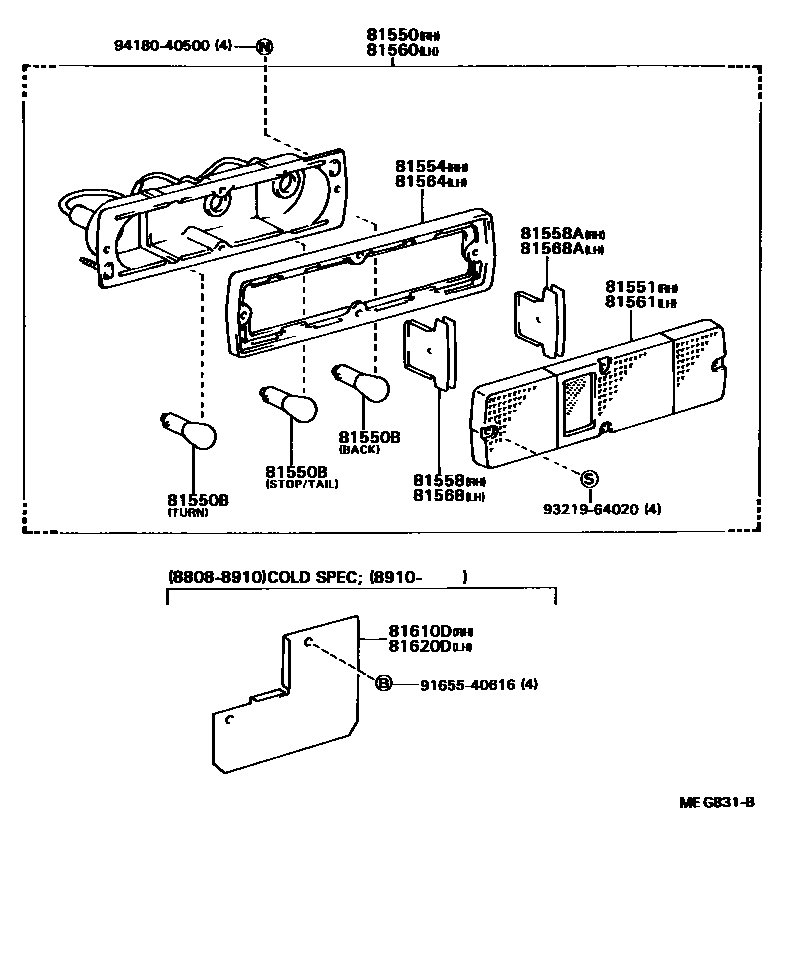

REAR COMBINATION LAMP

0001 1 0002 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-80019iBU60198601-198808

main81550-90F00iBU60198808-199008

main81550-90F01iBU60199008-199505

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-16014×4iBU60199008-199505

main90981-16015×2iBU60199008-199505

main99134-11250×4iBU60198601-198805

main99134-22250×2iBU60198601-198805

81551LENS, REAR COMBINATION LAMP, RH

main81551-25060iBU60198601-198805

main81551-60421iBU60199305-199501

main81551-60451iBU60199501-199505

main81551-95400iBU60199008-199303

main81554-60441iBU60199303-199305

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-25060iBU60198601-198805

main81552-95400iBU60199008-199505

81558SHADE, REAR COMBINATION LAMP, NO.1 RH

main81557-25060iBU60198601-198805

81558ASHADE, REAR COMBINATION LAMP, NO.2 RH

main81557-25060iBU60198601-198805

81560LAMP ASSY, REAR COMBINATION, LH

main81560-80021iBU60198601-198808

main81560-90F00iBU60198808-199008

main81560-90F01iBU60199008-199505

81561LENS, REAR COMBINATION LAMP, LH

main81561-25040iBU60198601-198805

main81561-60341iBU60199305-199501

main81561-60381iBU60199501-199505

main81561-95400iBU60199008-199303

main81564-60371iBU60199303-199305

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81552-95400iBU60199008-199505

main81562-25040iBU60198808-199008

81568SHADE, REAR COMBINATION LAMP, NO.1 LH

main81557-25060iBU60198601-198805

81568ASHADE, REAR COMBINATION LAMP, NO.2 LH

main81557-25060iBU60198808-199008

81610DCOVER, REAR COMBINATION LAMP, RH

main81610-26010iBU60..N199202-199503

main81610-90D00iBU60198808-198910

main81610-90D01iBU60199008-199202

81620DCOVER, REAR COMBINATION LAMP, LH

main81620-26010iBU60..N199202-199503

main81620-90D00iBU60198910-199008

main81620-90D01iBU60199008-199202

9165540616

main91655-40616

9321964020

main93219-64020

9418040500

main94180-40500

16 parts on this diagram · 2 diagrams in section
