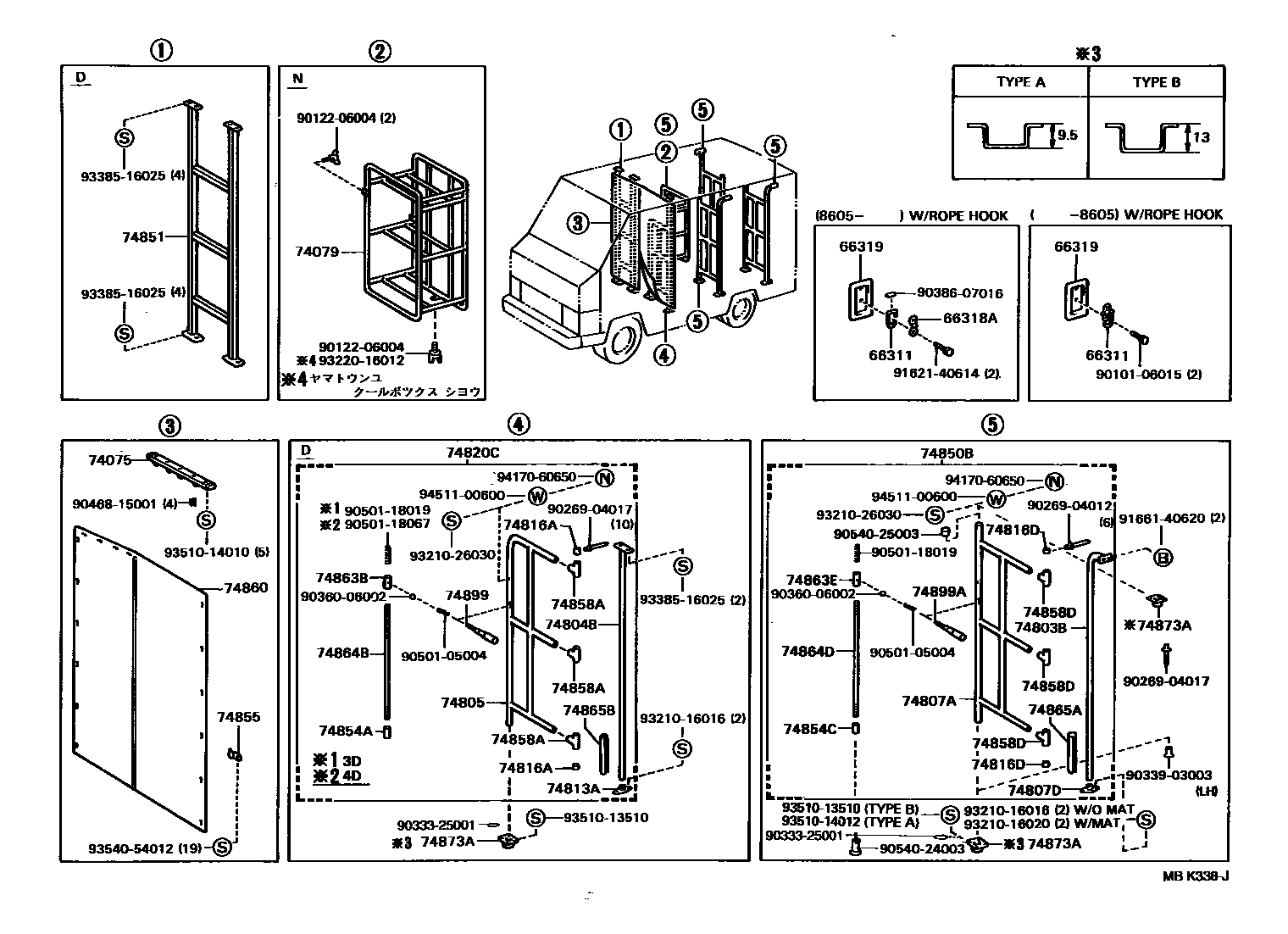

SEPARATOR & SEPARATOR CURTAIN

66311HOOK, ROPE

main66311-90D01iBU60..D..4D198601-198607

main66311-90K01iBU60..N..4D198607-199505

main66311-90K01iBU60..N..3D198710-199505

66318ABAND, ROPE HOOK

main66318-90A00iBU60..N..4D198607-199505

main66318-90A00iBU60..N..3D198710-199505

66319PLATE, ROPE HOOK

main66319-90D00iBU60..N..4D198601-198607

main66319-90D01iBU60..N..4D198607-199505

main66319-90D01iBU60..N..3D198710-199505

74075RAIL SET, SEPARATOR CURTAIN

main74075-90D00iBU60..D..CBU198601-199505

74079RACK SUB-ASSY, PARCEL

main74079-90D00iBU60..N198601-199505

74803BBAR SUB-ASSY, SEPARATOR VERTICAL, RH

main74803-90D02iBU60..D..3D..CBU198601-199505

main74803-90F00iBU60..N..4D198805-199505

main74803-90F01iBU60..N..3D198710-199505

main74804-90D04iBU60..N..3D198710-199505

74804BBAR SUB-ASSY, SEPARATOR VERTICAL, LH

main74804-90D03iBU60..D..3D198601-199505

main74804-90D04iBU60..N..3D199008-199505

main74804-90F00iBU60..D..4D198601-199505

74805SEPARATOR SUB-ASSY

main74807-90D03iBU60..D..3D..CBU198805-199505

main74807-90D03iBU60..D..3D198601-198805

FR

main74807-90D04iBU60..D..3D198601-198805

RR

main74807-90F01iBU60..N..4D198601-198805

RR

main74807-90F02iBU60..D..4D198601-198805

FR

main74807-90F02iBU60..D..4D198805-199505

main74855-90F02iBU60..N..3D198710-199505

sub74855-37010

74807ABAR SUB-ASSY, REAR SEPARATOR

main74807-90D04iBU60..D..3D..CBU198805-199505

main74807-90F01iBU60..N..4D198805-199505

main74855-37010iBU60..N..3D199106

main74855-90F02iBU60..N..3D198710-199106

sub74855-37010

74807DBRACKET, SEPARATOR

main74807-90500iBU60..D..CBU198805-199505

74813ABRACKET, SEPARATOR

main74807-90500iBU60..N..3D198710

main74813-90740iBU60..N198601-198805

RR

main74822-90D00iBU60..D..CBU198805-199505

main74822-90D00iBU60..D198601-198805

FR

74816ARING, PIPE

main74816-90050iBU60..N198601-198706

main74831-90D00iBU60..D..CBU198706-199505

main74831-90D00iBU60..N..3D198710

74816DRING, PIPE

main74831-90D00iBU60..N198805-199505

74820CSEPARATOR ASSY, FRONT LH

main74820-90D03iBU60..D..3D198601-199505

main74820-90F01iBU60..D..4D198601-199505

74850BSEPARATOR SUB-ASSY, REAR

main74850-90D02iBU60..N..3D198601-199505

main74850-90D03iBU60..N..3D198710-199505

main74850-90F00iBU60..N..4D198805-199505

74851BAR, SEPARATOR

main74805-90F00iBU60..D198601-199505

74854ASTOP, SEPARATOR

main74854-90D01iBU60..D..4D198805-199505

main74854-90D01iBU60..N198601-198805

RR

main74854-90D02iBU60..N..3D198805-199505

main74854-90D03iBU60..D..3D..CBU198805-199505

main74854-90D03iBU60..D..3D198601-198805

FR

main74854-90D04iBU60..N..3D198710-199505

main74854-90D05iBU60..N..3D198710-199505

main74854-90F00iBU60..D..4D198805-199505

main74854-90F00iBU60..D..4D198601-198805

FR

74854CSTOP, SEPARATOR

main74854-90D05iBU60..N..3D198710-199505

74855PLATE, SEPARATOR CURTAIN SET

main74862-95661iBU60..D198601-199505

74858ABRACKET, SEPARATOR BAR, UPPER

main74858-90D00iBU60..N198601-199505

main74858-90D00iBU60..N..3D198710-199505

74858DBRACKET, REAR SEPARATOR BAR, UPPER

main74858-90D00iBU60..N198805-199505

74860CURTAIN ASSY, SEPARATE

main74870-90F00iBU60..D198601-199505

74863BROD, SEPARATOR

main74863-90D01iBU60..D198601-199505

main74863-90D01iBU60..N..3D198710-199505

74863EROD, SEPARATOR

main74863-90D01iBU60..D..CBU198805-199505

74864BSHAFT, SEPARATOR

main74864-90D01iBU60..N198601-198805

RR

main74864-90D02iBU60..D..3D198601-198805

FR

main74864-90D02iBU60..D..3D..CBU198805-199505

main74864-90F00iBU60..D..4D198601-198805

FR

main74864-90F00iBU60..D..4D198805-199505

74864DSHAFT, SEPARATOR

main74864-90D01iBU60..N198805-199505

main74864-90D03iBU60..N..3D198710-199505

main74864-90D04iBU60..N..3D198710-199505

74865ACOVER, CENTER PROTECTOR

main74865-90D01iBU60..N198805-199505

74865BCOVER, CENTER PROTECTOR

main74865-90D00iBU60..N198601-198706

sub74865-90D01

main74865-90D01iBU60..D..CBU198706-199505

main74865-90D01iBU60..N..3D198710-199505

74873ABRACKET, SEPARATOR, LOWER, NO.1

main74835-90D00iBU60198601-198805

TYPE A

main74835-90D00iBU60..N198805-199505

main74835-90D00iBU60..N..3D199008-199505

main74835-90D01iBU60..D..CBU198805-199505

main74835-90D01iBU60..N..3D199008-199505

main74835-90D01iBU60198601-198805

TYPE B

74899HANDLE, SEPARATOR

main74899-90D00iBU60..N198601-199505

main74899-90D00iBU60..N..3D198710-199505

74899AHANDLE, SEPARATOR

main74899-90D00iBU60..N198805-199505

9010106015

main90101-06015

9012206004

main90122-06004

9026904012

main90269-04012

9026904017

main90269-04017

9033325001

main90333-25001

9033903003

main90339-03003

9036006002

main90360-06002

9038607016

main90386-07016

9046815001

main90468-15001

9050105004

main90501-05004

9050118019

main90501-18019

9050118067

main90501-18067

9054024003

main90540-24003

9054025003

main90540-25003

9162140614

main91621-40614

9166140620

main91661-40620

9321016016

main93210-16016

9321016020

main93210-16020

9321026030

main93210-26030

9322016012

main93220-16012

9338516025

main93385-16025

9351013510

main93510-13510

9351014010

main93510-14010

9351014012

main93510-14012

9354054012

main93540-54012

9417060650

main94170-60650

9451100600

main94511-00600

58 parts on this diagram · 1 diagram in section
