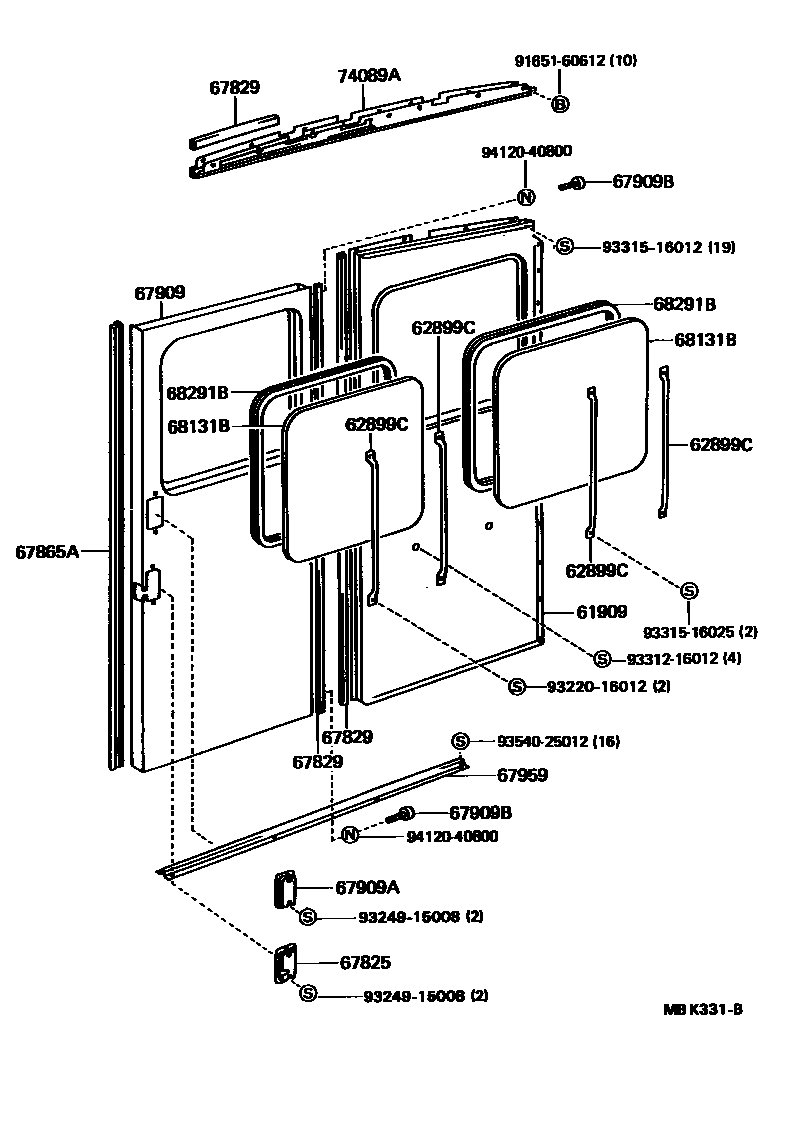

SEPARATION DOOR PANEL & GLASS

61909PANEL SUB-ASSY, SEPARATION

main74085-90F00iBU60198601-199002

sub74085-90F02

main74085-90F02iBU60..CBU199002-199505

62899CTUBE, SEPARATION

main62893-90D02iBU60..CBU198805-199505

main62893-90D02iBU60198601-198805

main62893-90D04iBU60198601-198805

main62893-90D04iBU60..CBU198805-199505

main62893-90D04iBU60..N..3D198806

67825COVER, SEPARATION DOOR SERVICE HOLE

main67825-26010iBU60..CBU199106-199505

main67825-90D00iBU60..CBU198601-199106

67829MOULDING, SEPARATION DOOR TRIM

main67827-90D02iBU60198601-198606

L=1690

sub67827-90D03

main67827-90D03iBU60198606-199505

L=1690

main67839-90D02iBU60198601-198805

L=1730

sub67839-25010

main67839-90D02iBU60..CBU198805-199505

sub67839-25010

main67839-90F00iBU60..D..CBU198805-199505

L=700

sub58479-90D01

main67839-90F00iBU60..D198601-198805

L=700,W/RR ROOF HEADLINING

sub58479-90D01

67865AWEATHERSTRIP, SEPARATION DOOR

main67865-90D02iBU60..CBU198601-199505

67909PANEL SUB-ASSY, SEPARATION DOOR

main67909-36010iBU60..CBU199106-199505

main67909-36020iBU60..N..3D199106-199505

main67909-90F00iBU60198601-198708

main67909-90F01iBU60198708-199002

sub67909-90F03

main67909-90F02iBU60..N..3D198902-199008

main67909-90F03iBU60..CBU199002-199106

main67909-90F04iBU60..N..3D199008-199106

67909ACOVER, SEPARATION DOOR SERVICE HOLE, NO.1

main61791-90A00iBU60198601-198805

sub61791-90B01

main61791-90B01iBU60..CBU198805-199106

main67826-26010iBU60..CBU199106-199505

67909BBUMPER, SEPARATION

main53382-60010iBU60..CBU198805-199505

sub53382-60011

main53382-90A00iBU60198601-198805

sub53382-90K01

67959RAIL, SEPARATION DOOR

main67959-90F00iBU60198601-199505

68131BGLASS, SEPARATION

main68131-90D02iBU60198601-198805

*TEM,T=3.5

sub68515-25010

main68131-90D02iBU60..CBU198805-199505

sub68515-25010

68291BWEATHERSTRIP, SEPARATION

main68291-90D00iBU60198601-199505

74089ARAIL SUB-ASSY, SEPARATION DOOR

main74089-90F00iBU60198601-199505

9165160612

main91651-60612

9322016012

main93220-16012

9324915008

main93249-15008

9331216012

main93312-16012

9331516012

main93315-16012

9331516025

main93315-16025

9354025012

main93540-25012

9412040800

main94120-40800

20 parts on this diagram · 1 diagram in section
