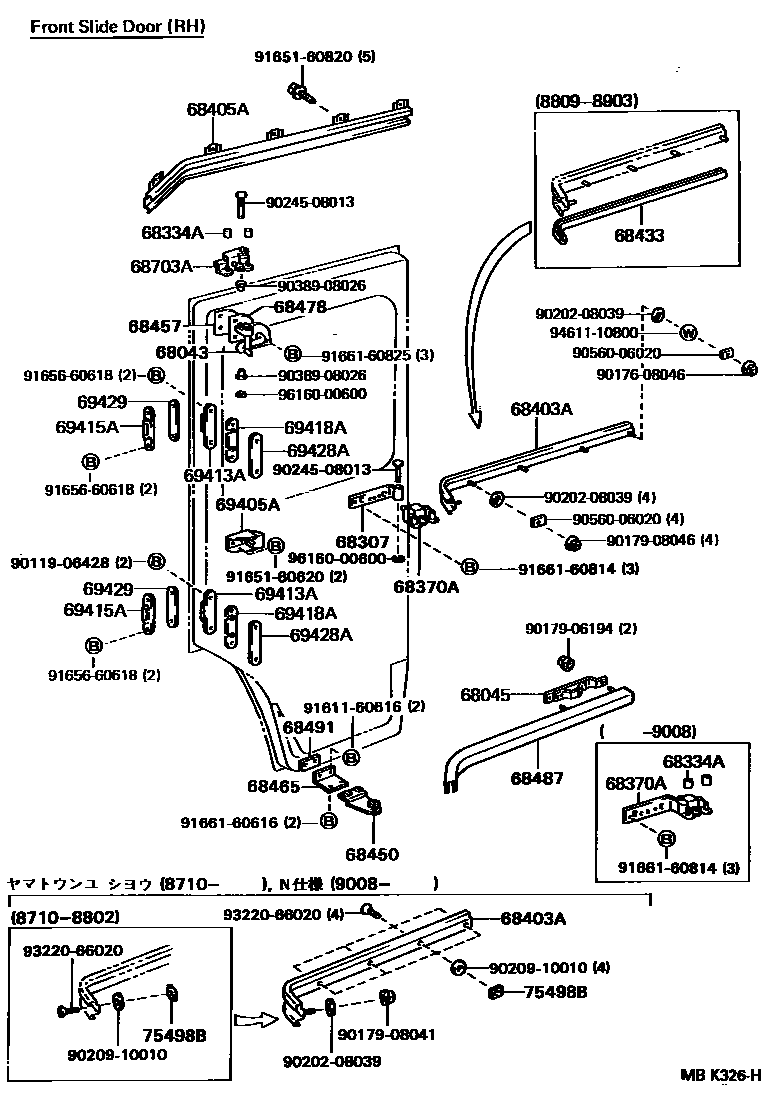

SLIDE ROLLER & RAIL

0001 1 0002 1 0003 1

68043ARM SUB-ASSY, FRONT SLIDE DOOR UPPER ROLLER, RH

main68043-90D03iBU60..CBU198805-199505

68045BRACKET SUB-ASSY, FRONT SLIDE DOOR CATCH

main68045-90D02×2iBU60198601-198708

68307HINGE SUB-ASSY, SLIDE DOOR CENTER MALE

main68307-95702iBU60..CBU199008-199505

68334ROLLER, SLIDE DOOR CENTER, NO.2

main68334-95700×2iBU60..4D198601-198805

68334AROLLER, FRONT SLIDE DOOR CENTER GUIDE

main68334-95700×8iBU60198601-198805

68370ROLLER ASSY, SLIDE DOOR, LOWER SUB

main68370-90F00iBU60..4D198601-198805

68370AHINGE ASSY, FRONT SLIDE DOOR, CENTER RH

main68701-26010iBU60..CBU199101-199505

sub68701-25010

sub68333-90D00

main68701-90D01iBU60..CBU199008-199101

main68710-90D00iBU60198601-199008

sub90245-08013

sub96160-00600

68403ARAIL SUB-ASSY, FRONT SLIDE DOOR, CENTER RH

main68403-90D02iBU60198601-198903

main68403-90D03iBU60198903-199008

main68403-90F00iBU60..N..3D198710-198802

main68403-90F01iBU60..N..3D198802-198904

main68403-90F02iBU60..CBU199011-199505

68405ARAIL SUB-ASSY, FRONT SLIDE DOOR, UPPER RH

main68405-90D01iBU60198601-199505

68433PROTECTOR, FRONT SLIDE DOOR CENTER RAIL, RH

main68433-90D00iBU60198809-198903

68450ROLLER ASSY, FRONT SLIDE DOOR, LOWER RH

main68450-90D01iBU60..CBU198805-199505

68457BASE, FRONT SLIDE DOOR CUSHION

main68457-26010iBU60..CBU199206-199505

68465BRACKET, FRONT SLIDE DOOR LOWER ROLLER

main68465-90D01iBU60198601-198805

68478PLATE, FRONT SLIDE DOOR ARM STOPPER

main68478-90D00iBU60..CBU198805-199505

68487GUIDE, FRONT SLIDE DOOR LOWER ROLLER, RH

main68487-90D04iBU60198601-198708

main68487-90D06iBU60198708-198910

main68487-90D07iBU60..CBU198910-199505

68491PACKING, FRONT SLIDE DOOR LOWER ROLLER

main68491-90D00iBU60198602-198805

68703AHINGE SUB-ASSY, FRONT SLIDE DOOR, UPPER RH

main68704-26010iBU60..CBU199101-199505

main68704-90D00iBU60198601-198805

69405ASTOP, FRONT SLIDE DOOR

main69405-90D03iBU60198601-198708

LH

main69405-90D04iBU60198601-198708

RH

main69405-90D05iBU60198708-198805

RH

main69406-90D00iBU60198708-198805

LH

69413STOP, SLIDE DOOR DOWN MALE

main69406-95J00×2iBU60..4D198601-198803

sub69416-95J00

main69406-95J01×2iBU60..4D198803-198805

sub69416-95J00

69413ASTOP, FRONT SLIDE DOOR DOWN MALE

main69406-95J00×4iBU60198601-198803

sub69416-95J00

main69406-95J01×4iBU60..CBU198805-199505

sub69416-95J00

69415STOPPER, SLIDE DOOR DOWN FEMALE

main69415-95J00×2iBU60..4D198805-199505

main69415-95J01×2iBU60..4D198906-199108

69415ASTOP, FRONT SLIDE DOOR DOWN FEMALE

main69415-95J00×4iBU60198601-198805

main69415-95J01×4iBU60..CBU198906-199108

69418ASHIM, FRONT SLIDE DOOR DOWN STOP MALE

main69418-95700×8iBU60198601-198805

69428APAD, FRONT SLIDE DOOR DOWN STOP, MALE

main69428-90D00×4iBU60198601-198805

69429PAD, FRONT SLIDE DOOR DOWN STOP, FEMAIL

main69429-90D00×4iBU60198601-198805

75498BSEAL, OUTSIDE MOULDING, NO.2

main75498-90F00×5iBU60..N..3D198710-199505

main75498-90F01×4iBU60..N199008-199011

9011906428

main90119-06428

9017608046

main90176-08046

9017906194

main90179-06194

9017908041

main90179-08041

9017908046

main90179-08046

9020208039

main90202-08039

9020910010

main90209-10010

9024508013

main90245-08013

9038908026

main90389-08026

9056006020

main90560-06020

9161160616

main91611-60616

9165160620

main91651-60620

9165160820

main91651-60820

9165660618

main91656-60618

9166160616

main91661-60616

9166160814

main91661-60814

9166160825

main91661-60825

9322066020

main93220-66020

9461110800

main94611-10800

9616000600

main96160-00600

46 parts on this diagram · 3 diagrams in section
