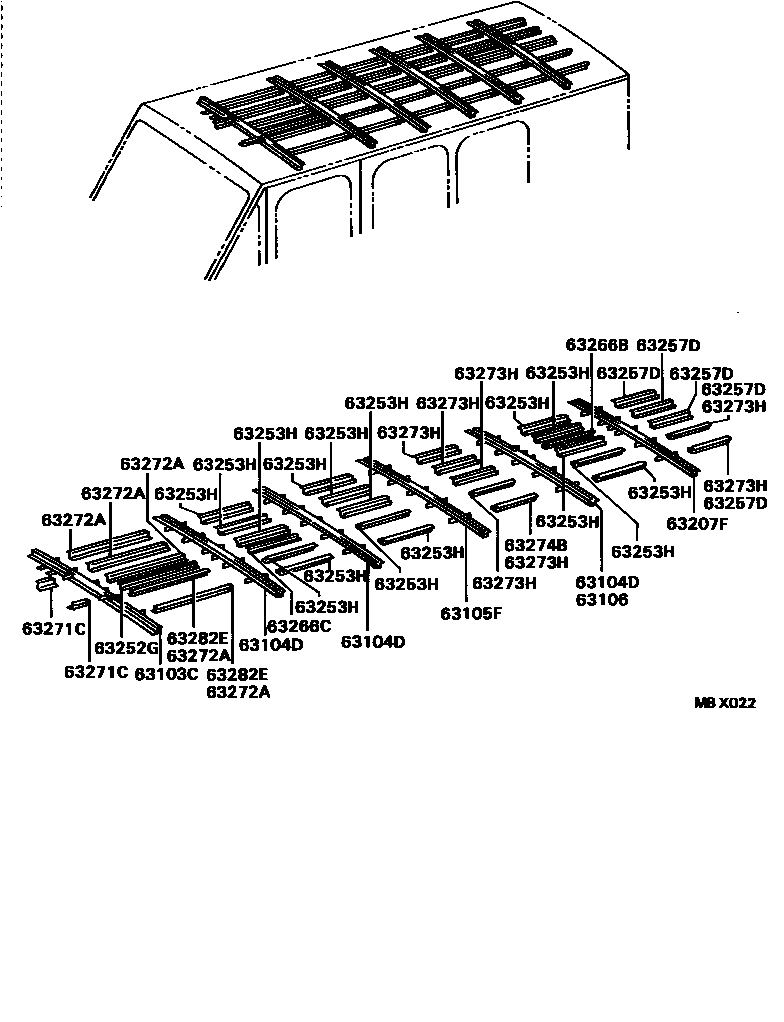

ROOF PANEL & BACK PANEL

0001 1 0002 1

63103CREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-90F00iBU60..D198601-199505

main63103-90F01iBU60..D..CBU198601-199505

63104DREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2

main63104-90F01iBU60..D..CBU198601-199505

main63104-90F02iBU60..D198601-199505

NO.3,5

main63104-90F03iBU60..N..3D198601-199505

63105FREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3

main63105-90F00iBU60198601-199505

main63105-90F01iBU60..N..3D198601-199505

63106REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.4

main63106-90F00iBU60..CBU198601-199505

main63106-90F01iBU60..N..3D198601-199505

63207FREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.7

main63207-90F00iBU60..D..CBU198601-199505

main63207-90F01iBU60..N..3D198601-199505

63252GSTRENGTH, ROOF PANEL, CENTER NO.2

main63252-90D02iBU60..CBU198601-199505

63253HSTRENGTH, ROOF PANEL, CENTER NO.3

main63253-90F00×9iBU60..N198601-199505

main63256-90F00iBU60..D..CBU198601-199505

RR-CTR=1

main63256-90F04×2iBU60..N..3D198601-199505

63257DSTRENGTH, ROOF PANEL, CENTER NO.7 RH

main63257-90F00×5iBU60..D198601-199505

main63277-90F00×3iBU60..D..CBU198601-199505

63266BSTRENGTH, ROOF PANEL, CENTER NO.6 LH

main63266-90F00×3iBU60..N..3D198601-199505

63266CSTRENGTH, ROOF PANEL, CENTER NO.6 LH

main63266-90F00iBU60..N..3D198601-199505

63271CSTRENGTH, ROOF PANEL, NO.1 RH

main63271-90D02×2iBU60198601-199505

63272ASTRENGTH, ROOF PANEL, NO.2 RH

main63272-90D02×2iBU60..D198601-199505

main63282-90D00×2iBU60..D..CBU198601-199505

63273HSTRENGTH, ROOF PANEL, NO.3

main63273-90D03×5iBU60..D198601-199505

main63273-90F00×2iBU60..D..CBU198601-199505

63274BSTRENGTH, ROOF PANEL, NO.4 RH

main63274-90D01iBU60..D198601-199505

63282ESTRENGTH, ROOF PANEL, NO.2 LH

main63282-90D00×2iBU60..CBU198601-199505

15 parts on this diagram · 2 diagrams in section
