SIDE WINDOW
62229PACKING, SIDE WINDOW
62249PLATE, SIDE WINDOW, RH
62268FILM, SIDE WINDOW FRAME, B
62269FFILM, SIDE WINDOW FRAME
62275CCOVER, SIDE WINDOW
62279ASPACER, SIDE WINDOW FRAME
62421BRUN, FR0NT DOOR WINDOW, LH
62620CCLIP, SIDE WINDOW OUTER SASH, NO.2 (FOR SLIDE TYPE)
62692LOCK, SIDE WINDOW, NO.2 GLASS (FOR SLIDE TYPE)
62692APACKING, SIDE WINDOW LOCK, NO.2
62692BRETAINER, SIDE WINDOW LOCK, NO.2
sub62793-95704
62751STOP, SIDE WINDOW FIX GLASS
62755WEATHERSTRIP, SIDE WINDOW, NO.1(FOR FIXED TYPE)
62883GUARD ASSY, SIDE WINDOW
RR SIDE WINDOW
W/RR SIDE WINDOW
67045FRAME SUB-ASSY, SLIDE WINDOW, CENTER
LH
68142BRUN, REAR DOOR WINDOW, RH
68152BRUN, REAR DOOR WINDOW, LH
68203FRAME SUB-ASSY, REAR DOOR WINDOW, OUTER RH
68204AFRAME SUB-ASSY, REAR DOOR WINDOW, OUTER LH
9015930005
main90159-30005
9016440050
main90164-40050
9321913005
main93219-13005
9324914008
main93249-14008
9326016030
main93260-16030
9331516025
main93315-16025

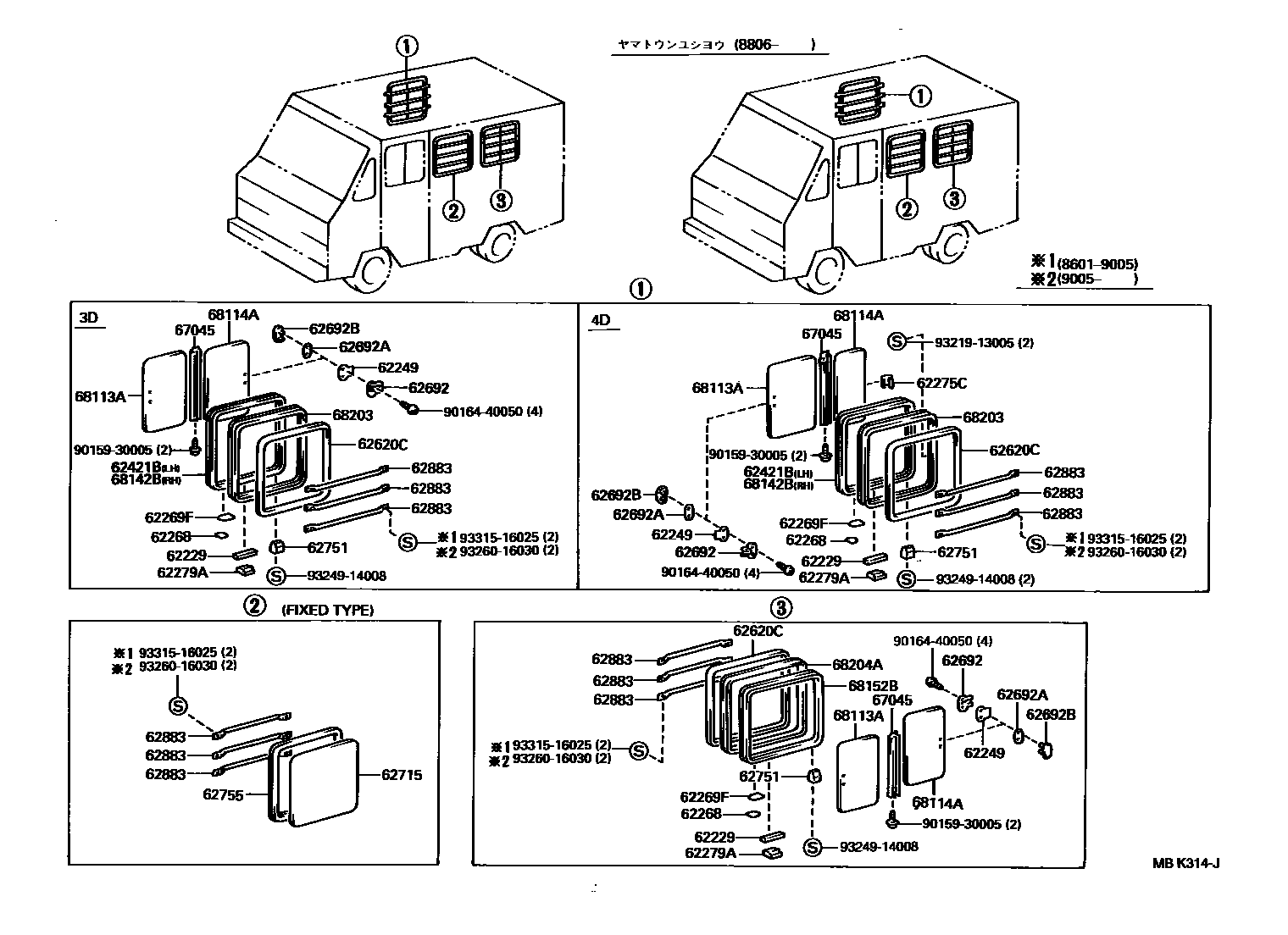

28 parts on this diagram · 2 diagrams in section
