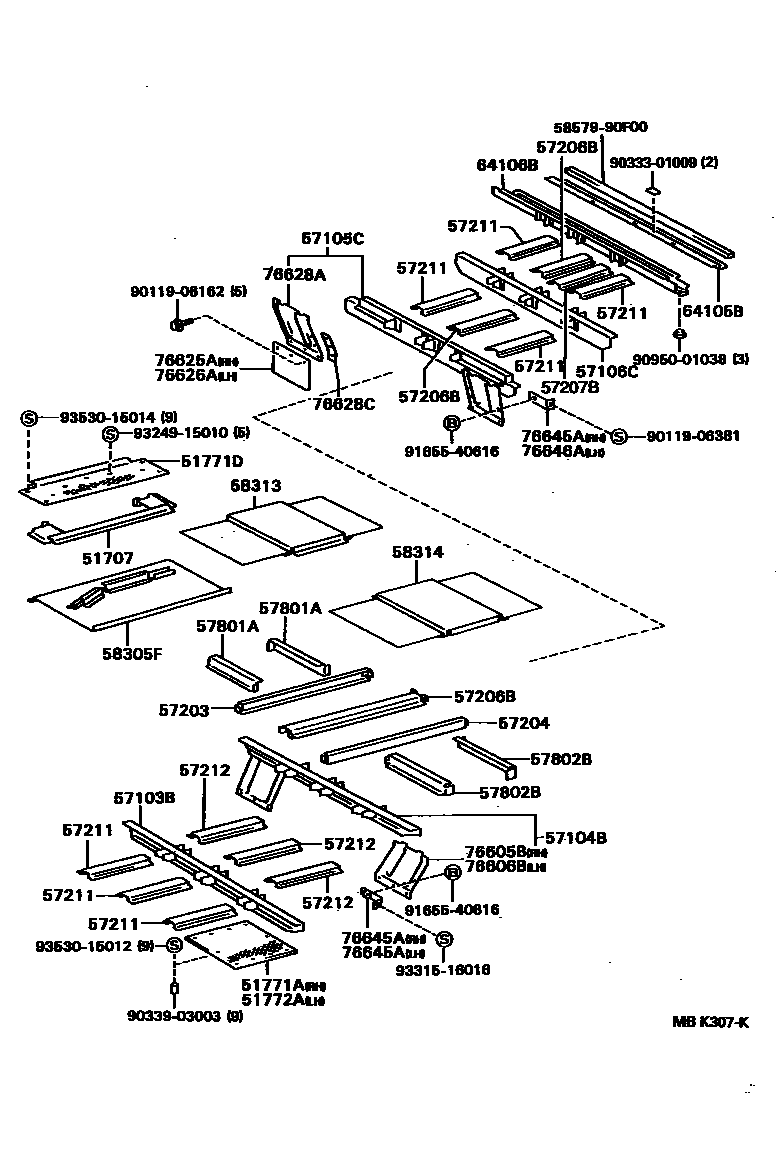

REAR FLOOR PANEL & REAR FLOOR MEMBER
51707STEP SUB-ASSY, RH
51771ASTEP, RH
W/RR MAT
51771DPLATE, STEP RH
51772ASTEP, LH
W/RR MAT
57104BCROSSMEMBER SUB-ASSY, FLOOR, NO.4
57106CCROSSMEMBER SUB-ASSY, FLOOR, NO.6
57203STRENGTH SUB-ASSY, ANCHOR NO.3
57204STRENGTH SUB-ASSY, ANCHOR, NO.3 LH
57206BSTRENGTH SUB-ASSY, ANCHOR
FR NO.2
CTR
SIDE-RH
RR,SIDE-RH
CTR-RH
57207BSTRENGTH SUB-ASSY, REAR FLOOR HOUSING, NO.7
57211STRENGTH, ANCHOR, NO.1
FR NO.1
RR-RH,RR-LH,RR NO.2
FR X3,RR-RH,RR-LH
57212STRENGTH, ANCHOR, NO.2
57801AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, RH
57802BREINFORCE SUB-ASSY, REAR FLOOR SIDE MEMBER
58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
76625AMUDGUARD, REAR BODY, RH
76626AMUDGUARD, REAR BODY, LH
76628CMUD GRARD, REAR BODY
76645ABRACKET, REAR BODY MUDGUARD NO.1, RH
76646ABRACKET, REAR BODY MUDGUARD NO.1, LH
5857990F00SET PLATE, REAR FLOOR CARPET, NO.1
main58579-90F00
9011906162
main90119-06162
9011906381
main90119-06381
9033301009
main90333-01009
9033903003
main90339-03003
9095001038
main90950-01038
9165540616
main91655-40616
9324915010
main93249-15010
9331516016
main93315-16016
9353015012
main93530-15012
9353015014
main93530-15014
40 parts on this diagram · 1 diagram in section
