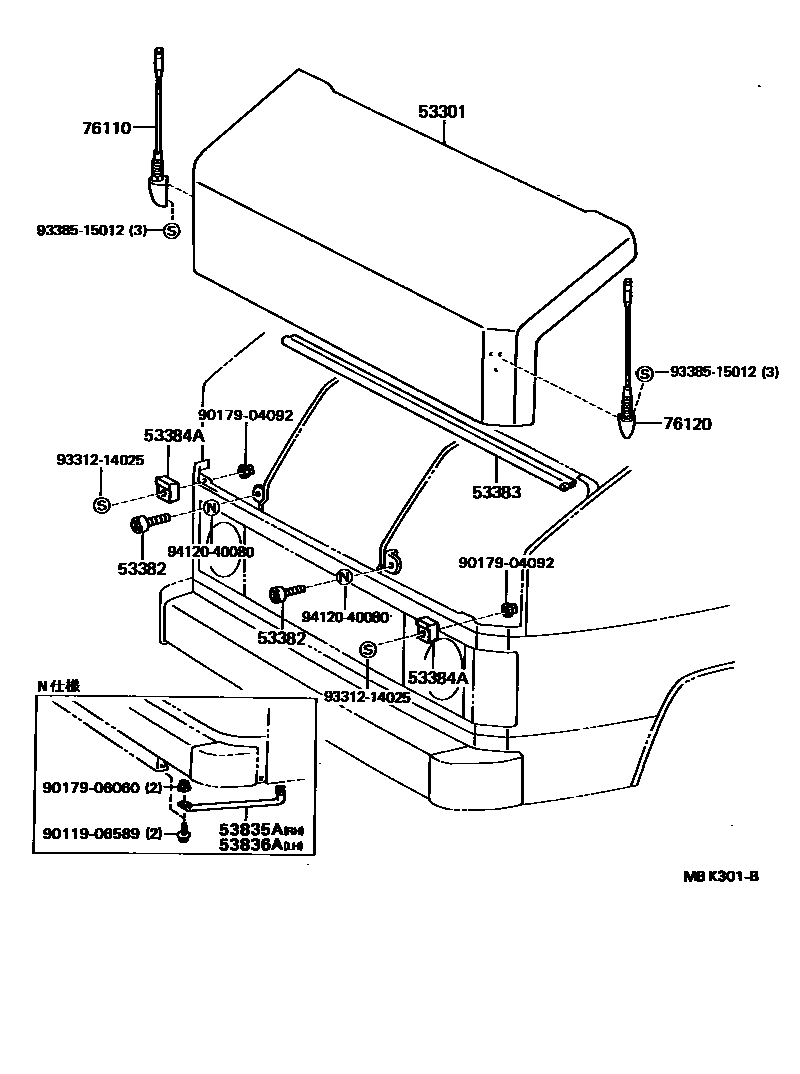

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-90F00iBU60..D198601-198910

sub53301-90F02

main53301-90F01iBU60..N198805-198910

sub53301-90F03

main53301-90F02iBU60..D198910-199008

sub53301-90F04

main53301-90F03iBU60..D198910-199008

sub53301-90F05

main53301-90F04iBU60..D199008-199505

main53301-90F05iBU60..D199008-199505

53382BUMPER, HOOD, FRONT

main53382-60010iBU60198805-199505

sub53382-60011

main53382-90A00iBU60198601-198805

sub53382-90K01

53383SEAL, HOOD TO COWL TOP

main53383-36010iBU60199008-199505

sub53383-36020

main53383-90F00iBU60198601-199008

sub53383-36020

53384ABUMPER, FENDER TO HOOD

main53384-90D01iBU60198601-199505

53835ABRACE, FRONT FENDER TO APRON, RH

main53835-90F01iBU60..N199002-199505

53836ABRACE, FRONT FENDER TO APRON, LH

main53836-90F01iBU60..N199002-199505

76110POLE ASSY, FENDER, RH

main76110-90D01iBU60198601-199505

sub76110-25020

76120POLE ASSY, FENDER, LH

main76110-90D01iBU60198601-199505

sub76110-25020

9011906589

main90119-06589

9017904092

main90179-04092

9017906060

main90179-06060

9331214025

main93312-14025

9338515012

main93385-15012

9412040080

main94120-40080

14 parts on this diagram · 1 diagram in section
