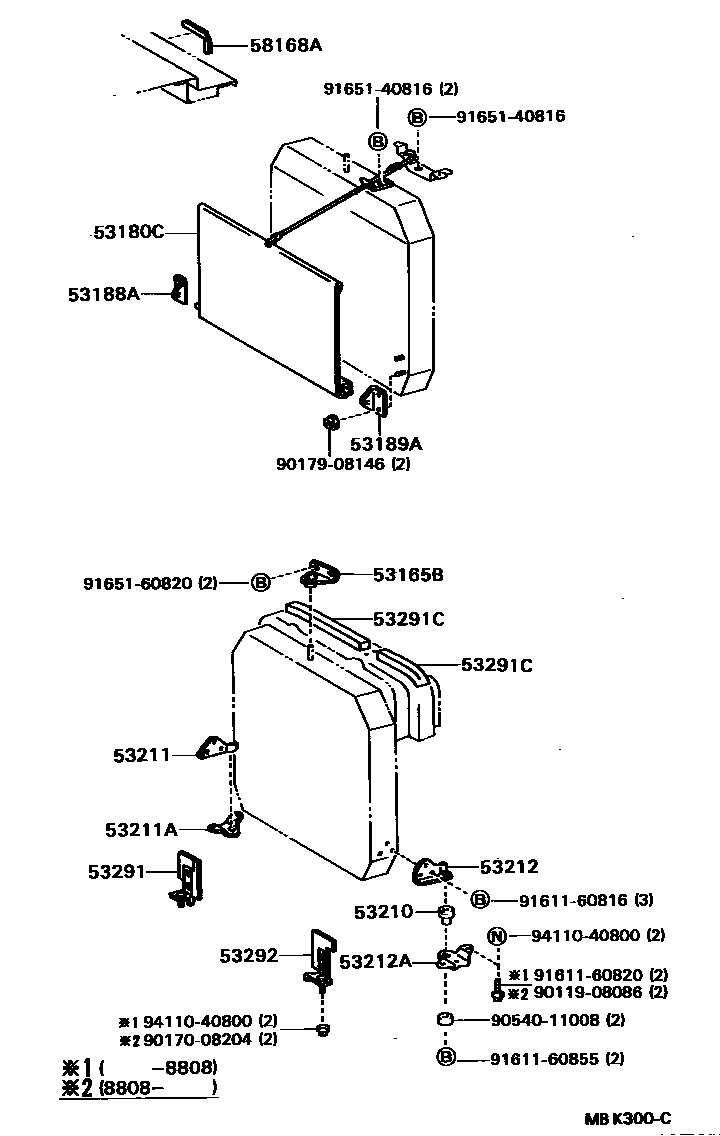

RADIATOR SUPPORT & WIND GUIDE

53165BSUPPORT, RADIATOR, CENTER

main53165-36050iBU60198601-199505

53180CSHUTTER ASSY, RADIATOR

main53180-90F00iBU60198601-198910

main53180-90F01iBU60..N..3D198904-199008

main53180-90F01iBU60198910-199505

main53180-90F03iBU60..N..3D199008-199505

53188ABRACKET, RADIATOR SHUTTER SUPPORT, RH

main53188-95405iBU60198601-199505

53189ABRACKET, RADIATOR SHUTTER SUPPORT, LH

main53189-95403iBU60198601-199505

53210SUPPORT ASSY, RADIATOR

main53210-36010iBU60198601-199505

53211SUPPORT, RADIATOR, RH

main53211-36020iBU60198601-198708

main53211-36060iBU60198708-199505

53211ABRACKET, RADIATOR SUPPORT, RH

main51411-36090iBU60198601-198708

main51411-36120iBU60198708-199505

53212SUPPORT, RADIATOR, LH

main53212-36020iBU60198601-199505

53212ABRACKET, RADIATOR SUPPORT, LH

main51412-36090iBU60198601-199505

53291SEAL, RADIATOR SUPPORT TO FRAME, RH

main53291-36030iBU60198601-198808

main53291-36050iBU60198808-199505

53291CSEAL, RADIATOR SUPPORT TO FRAME

main53291-90F00iBU60198601-198805

RH

main53291-90F00iBU60198805-198910

main53291-90F01iBU60198910-199505

main53291-90F01iBU60..N..3D198904-199505

main53292-90F00iBU60198805-198910

main53292-90F00iBU60198601-198805

LH

main53292-90F01iBU60..N..3D198904-199505

main53292-90F01iBU60198910-199505

53292SEAL, RADIATOR SUPPORT TO FRAME, LH

main53292-36060iBU60198601-199505

sub53292-36061

58168APROTECTOR, FLOOR WIRE

main58168-90D01iBU60198601-199505

9011908086

main90119-08086

9017008204

main90170-08204

9017908146

main90179-08146

9054011008

main90540-11008

9161160816

main91611-60816

9161160820

main91611-60820

9161160855

main91611-60855

9165140816

main91651-40816

9165160820

main91651-60820

9411040800

main94110-40800

23 parts on this diagram · 1 diagram in section
