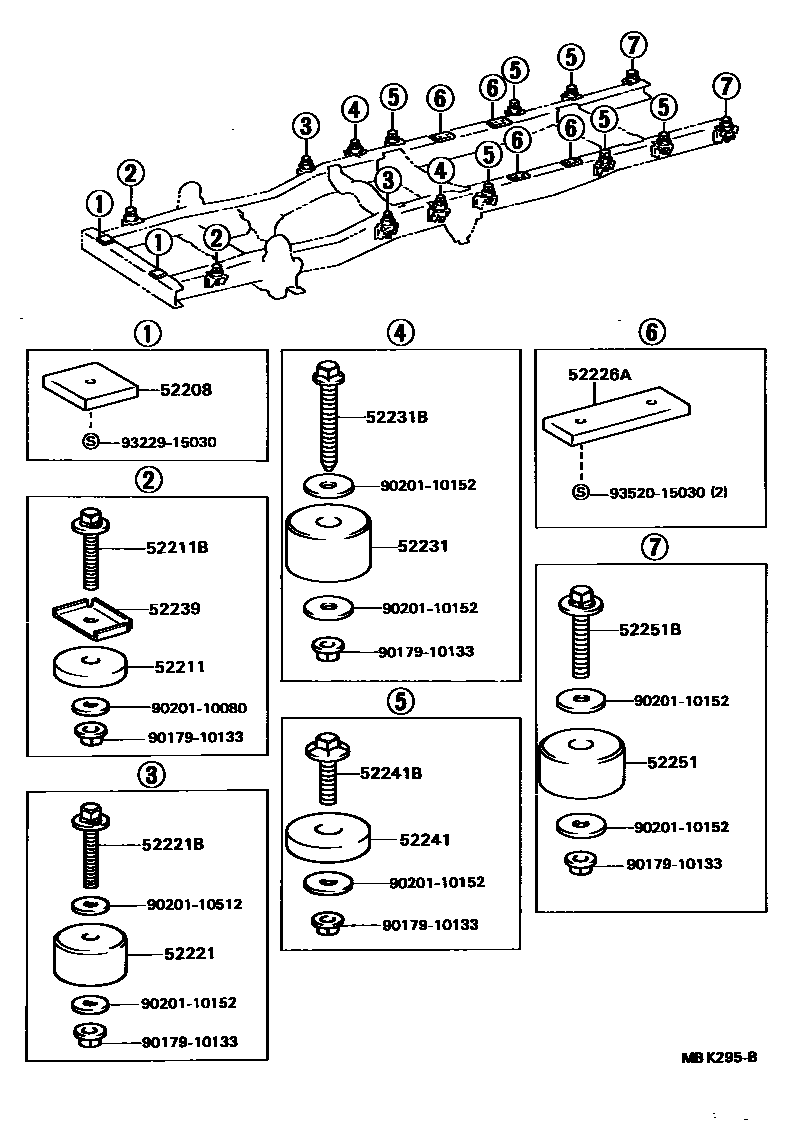

CAB MOUNTING & BODY MOUNTING

0001 1 0002 1

52208SHIM SUB-ASSY, BODY MOUNTING

main51248-90F01iBU60198601-199505

52211CUSHION, BODY MOUNTING, NO.1 UPPER

main52211-90F00iBU60198601-199505

52211BBOLT(FOR BODY MOUNTING NO.1 CUSHION)

main90119-10219iBU60198601-198807

main90119-10537iBU60198807-199105

main90119-10720iBU60199105-199505

52221CUSHION, BODY MOUNT, NO.2 UPPER

main52291-90F00iBU60198708-199505

main52291-90F01iBU60198601-198708

52221BBOLT(FOR BODY MOUNT NO.2 CUSHION)

main90119-10219iBU60198708-198807

main90119-10278iBU60198601-198708

main90119-10537iBU60198807-199105

main90119-10720iBU60199105-199505

52226ACUSHION, BODY REAR MOUNTING, UPPER

main52212-90F01iBU60198601-199505

52231CUSHION, BODY MOUNT, NO.3 UPPER

main52213-90F00iBU60198708-199505

main52213-90F01iBU60198601-198708

52231BBOLT(FOR BODY MOUNT NO.3 CUSHION)

main90105-10019iBU60198601-198708

main90105-10073iBU60198708-198805

sub90105-10074

main90105-10074iBU60198805-198807

main90105-10242iBU60198807-199105

main90119-10720iBU60199105-199505

52239PLATE, BODY MOUNTING

main52239-90F00iBU60198601-199505

52241CUSHION, BODY MOUNT, NO.4 UPPER

main52211-90F00iBU60198601-198708

52241BBOLT(FOR BODY MOUNT NO.4 CUSHION)

main90105-10064iBU60198805-198807

main90119-10064iBU60198708-198805

sub90119-10657

main90119-10219iBU60198601-198708

main90119-10538iBU60198807-199505

52251CUSHION, BODY MOUNT, NO.5 UPPER

main52291-90F00iBU60198708-199505

main52291-90F01iBU60198601-198708

52251BBOLT(FOR BODY MOUNT NO.5 CUSHION)

main90119-10219iBU60198708-198807

main90119-10278iBU60198601-198708

main90119-10537iBU60198807-199105

main90119-10720iBU60199105-199505

9017910133

main90179-10133

9020110080

main90201-10080

9020110152

main90201-10152

9020110512

main90201-10512

9322915030

main93229-15030

9352015030

main93520-15030

19 parts on this diagram · 2 diagrams in section
