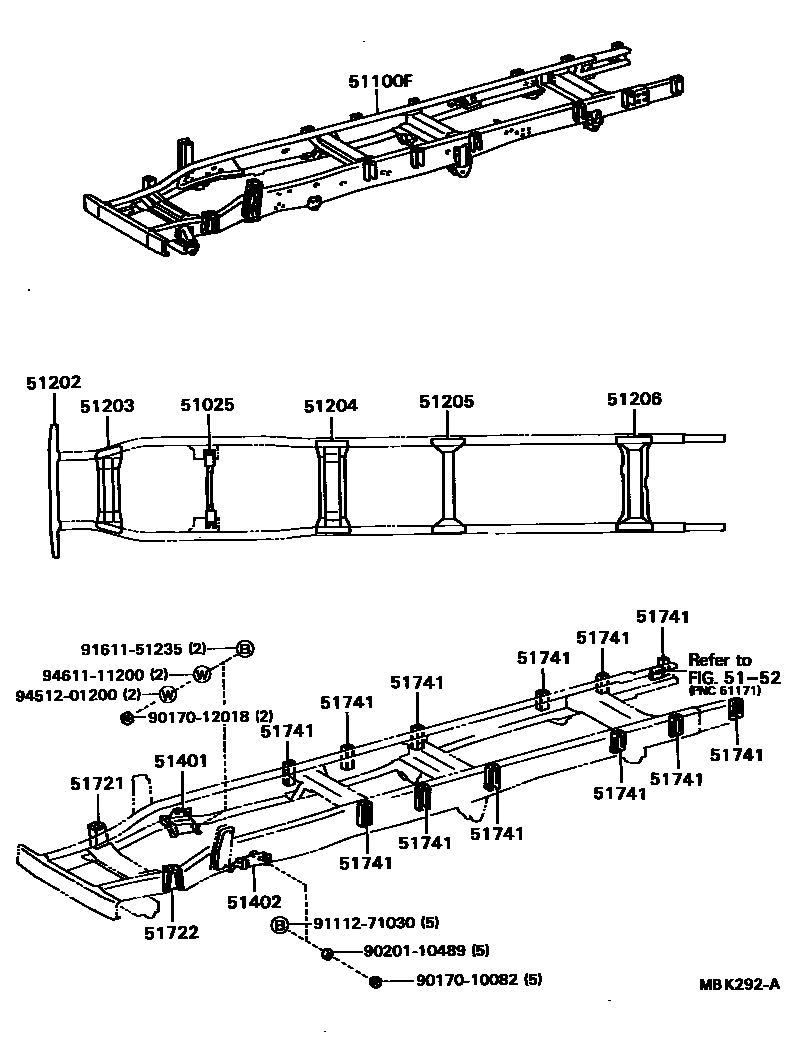

FRAME

51025MEMBER SUB-ASSY, ENGINE FRONT MOUNTING

main51025-36040iBU60198601-199505

51100FFRAME SUB-ASSY

main51002-3B210iBU60198601-198708

main51002-3B211iBU60198708-199505

51202CROSSMEMBER SUB-ASSY, FRAME, NO.1

main51201-36130iBU60198601-199505

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51202-36130iBU60198601-199505

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51203-36250iBU60198601-199505

sub51203-36251

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51205-36100iBU60198601-198708

main51205-36140iBU60198708-199505

51206CROSSMEMBER SUB-ASSY, FRAME, NO.5

main51207-36090iBU60198601-199505

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51421-36140iBU60198601-199505

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51422-36100iBU60198601-199505

51721BRACKET, CAB FRONT MOUNTING, RH

main51723-36020iBU60198601-199505

51722BRACKET, CAB FRONT MOUNTING, LH

main51723-36020iBU60198601-199505

51741BRACKET, REAR BODY MOUNTING, NO.1

main51741-36060×12iBU60198601-198708

main51741-36061×12iBU60198708-199505

9017010082

main90170-10082

9017012018

main90170-12018

9020110489

main90201-10489

9111271030

main91112-71030

9161151235

main91611-51235

9451201200

main94512-01200

9461111200

main94611-11200

19 parts on this diagram · 1 diagram in section
