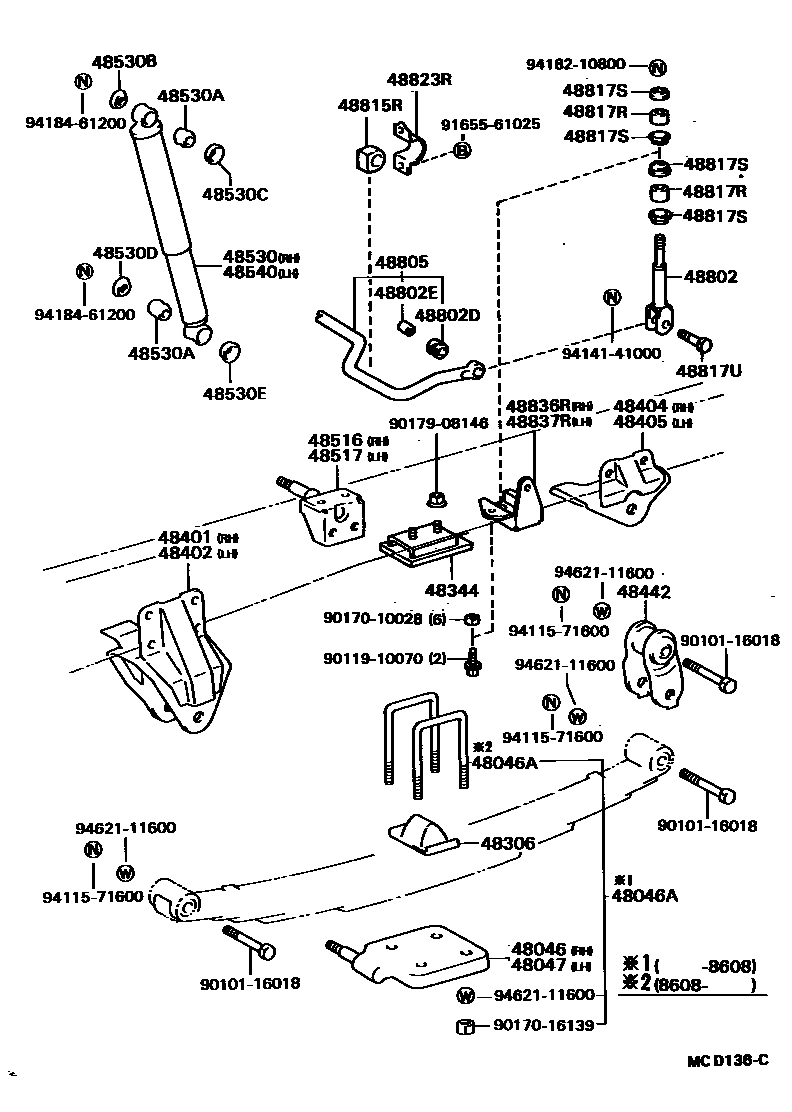

REAR SPRING & SHOCK ABSORBER
48046SEAT SUB-ASSY, SPRING U BOLT, RH
48047SEAT SUB-ASSY, SPRING U BOLT, LH
48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH
48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH
48404BRACKET SUB-ASSY, REAR SPRING, REAR RH
48405BRACKET SUB-ASSY, REAR SPRING, REAR LH
48442SHACKLE, SPRING, NO.2
48516BRACKET, REAR SHOCK ABSORBER, UPPER RH
48517BRACKET, REAR SHOCK ABSORBER, UPPER LH
48530ABSORBER ASSY, SHOCK, REAR RH
48530ABUSH(FOR REAR SHOCK ABSORBER)
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2
48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3
48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4
48540ABSORBER ASSY, SHOCK, REAR LH
48802LINK SUB-ASSY, STABILIZER
48802DBUSH, STABILIZER LINK
48802ESPACER(FOR REAR STABILIZER BAR)
48805BAR SUB-ASSY, REAR STABILIZER
48815RBUSH, STABILIZER(FOR REAR)
48817RCUSHION, STABILIZER(FOR REAR)
48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
T=1.2
T=1.6
48817UBOLT(FOR REAR STABILIZER)
sub91512-61045
48823RCOVER, STABILIZER LINK(FOR REAR)
9010116018
main90101-16018
9011910070
main90119-10070
9017010028
main90170-10028
9017016139
main90170-16139
9017908146
main90179-08146
9165561025
main91655-61025
9411571600
main94115-71600
9414141000
main94141-41000
9418210800
main94182-10800
9418461200
main94184-61200
9462111600
main94621-11600
41 parts on this diagram · 3 diagrams in section
