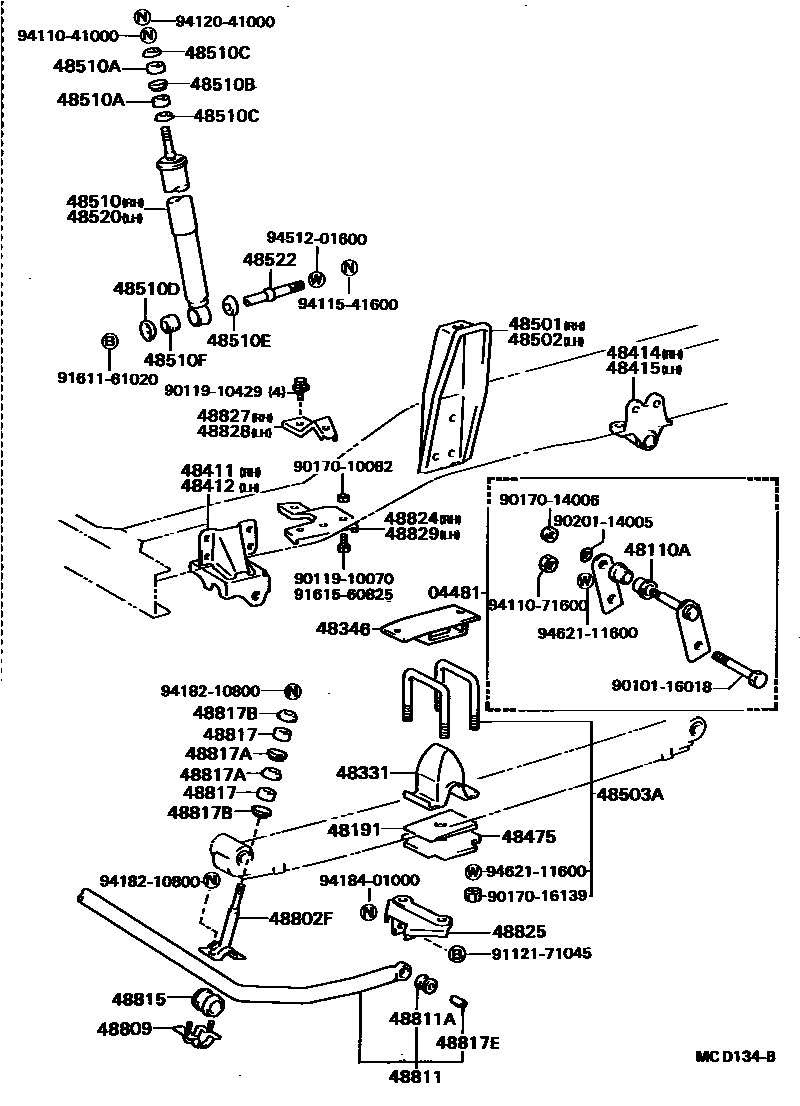

FRONT SPRING & SHOCK ABSORBER
48110SPRING ASSY, FRONT, RH
48110ABUSH(FOR FRONT SPRING SHACKLE)
48191WEDGE, CASTER(FOR FRONT LEAF SPRING)
48346STOPPER, BUMPER, FRONT
48411BRACKET, FRONT SPRING(FOR FRONT RH)
48412BRACKET, FRONT SPRING(FOR FRONT LH)
48414BRACKET, FRONT SPRING(FOR REAR RH)
48415BRACKET, FRONT SPRING(FOR REAR LH)
48475PLATE, DISTANCE(FOR FRONT)
48501BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER RH
48502BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER LH
48510ACUSHION, FRONT SHOCK ABSORBER
48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
48510DWASHER, FRONT SHOCK ABSORBER CUSHION, NO.1
48510EWASHER, FRONT SHOCK ABSORBER CUSHION, NO.2
48510FCUSHION, SHOCK ABSORBER
48522PIN, FRONT SHOCK ABSORBER LOWER PIVOT
48802FLINK SUB-ASSY, FRONT STABILIZER
48809BRACKET SUB-ASSY, STABILIZER
48811BAR, STABILIZER, FRONT
48811ABUSH(FOR FRONT STABILIZER BAR)
48815BUSH, FRONT STABILIZER BAR, NO.1
48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
48817ESPACER(FOR STABILIZER BAR)
48825BRACKET, STABILIZER, NO.2
9010116018
main90101-16018
9011910070
main90119-10070
9011910429
main90119-10429
9017010082
main90170-10082
9017014006
main90170-14006
9017016139
main90170-16139
9020114005
main90201-14005
9112171045
main91121-71045
9161161020
main91611-61020
9161560825
main91615-60825
9411041000
main94110-41000
9411071600
main94110-71600
9411541600
main94115-41600
9412041000
main94120-41000
9418210800
main94182-10800
9418401000
main94184-01000
9451201600
main94512-01600
9462111600
main94621-11600
55 parts on this diagram · 3 diagrams in section
