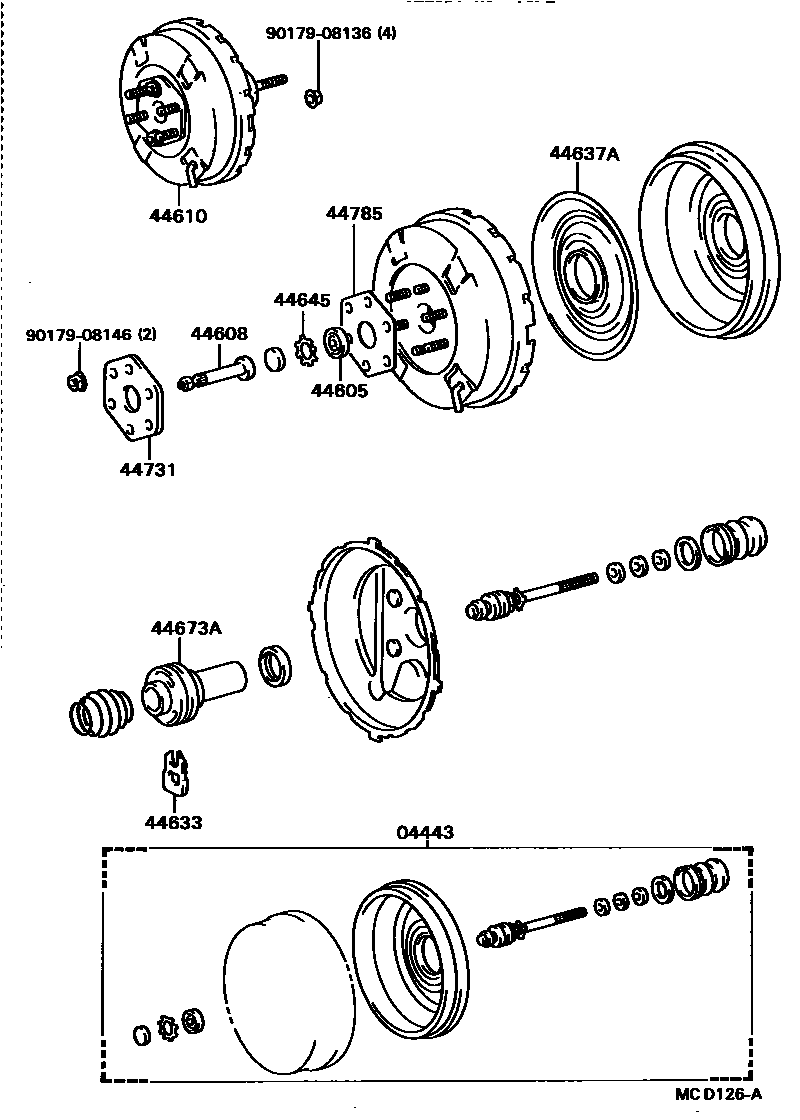

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

04443BOOSTER KIT, BRAKE

main04443-36120iBU60198805-199505

main44730-60040iBU60198601-198805

44605PLATE & SEAL SUB-ASSY, BOOSTER

main44605-36220iBU60..D199202-199505

44608PUSH ROD SUB-ASSY, BOOSTER

main44608-25150iBU60..D199202-199505

44610BOOSTER ASSY, BRAKE

main44610-36390iBU60..D199202-199505

main44610-37020iBU60199201-199202

44633KEY, BOOSTER VALVE PLUNGER

main44633-28130iBU60..D199202-199505

44637APLATE, BOOSTER DIAPHRAGM

main44637-25150iBU60198601-199202

44645RETAINER, BOOSTER PUSH ROD SEAL

main44645-36220iBU60198601-199202

44673ABODY, BOOSTER VALVE

main44673-25150iBU60..D199202-199505

44731BRACKET, BRAKE BOOSTER, FRONT

main44647-25150iBU60198601-199202

44785GASKET, BRAKE BOOSTER

main47275-36010iBU60198601-199505

9017908136

main90179-08136

9017908146

main90179-08146

12 parts on this diagram · 3 diagrams in section
