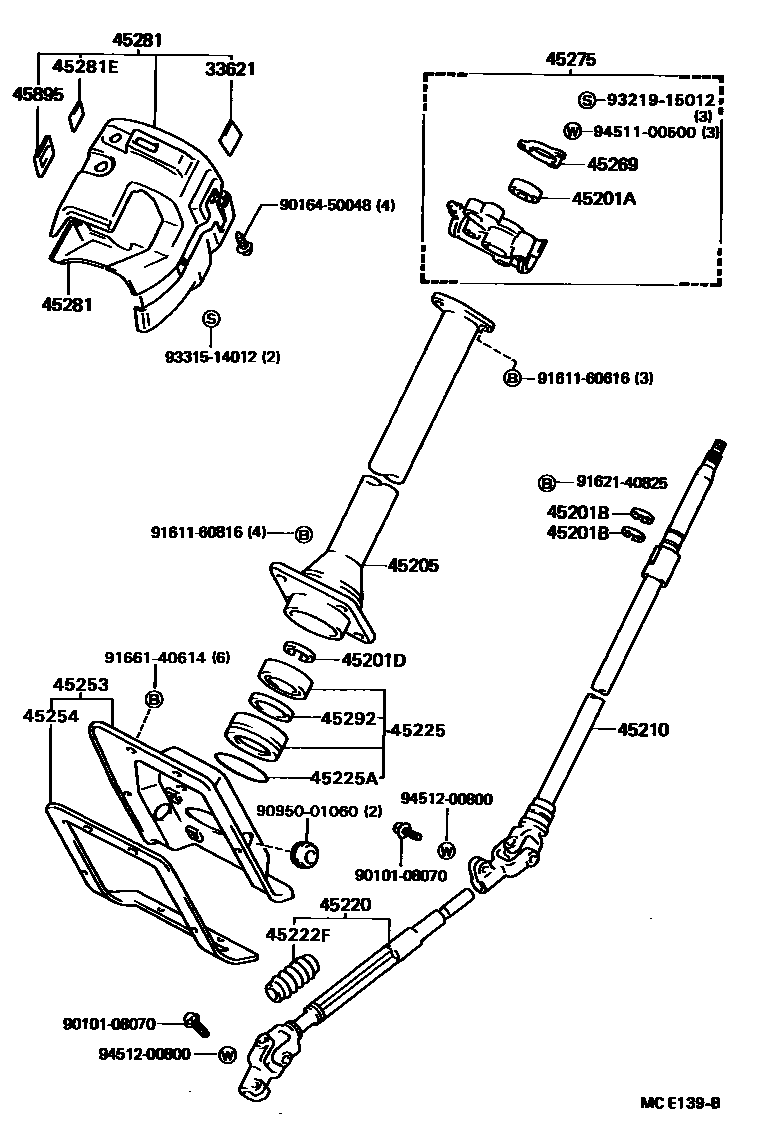

STEERING COLUMN & SHAFT
33621PLATE, CONTROL LEVER CAUTION
45201ABEARING(FOR STEERING MAIN SHAFT)
UPR
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
45201DRING(FOR STEERING MAIN SHAFT)
45205TUBE SUB-ASSY, STEERING COLUMN
45210SHAFT ASSY, STEERING MAIN
45220SHAFT ASSY, STEERING INTERMEDIATE
45222FCOVER, DUST
45225BLOCK, BEARING
45225ARING, O(FOR BEARING BLOCK)
45253COVER, STEERING COLUMN HOLE
45254SHIELD, STEERING COLUMN HOLE
45269RETAINER, MAIN SHAFT BEARING
45281EPLATE, SAFETY CAUTION
45292SEAL, MAIN SHAFT LOWER DUST
45895PLATE, STEERING LOCK CAUTION
9010108070
main90101-08070
9016450048
main90164-50048
9095001060
main90950-01060
9161160616
main91611-60616
9161160816
main91611-60816
9162140825
main91621-40825
9166140614
main91661-40614
9321915012
main93219-15012
9331514012
main93315-14012
9451100500
main94511-00500
9451200800
main94512-00800
29 parts on this diagram · 1 diagram in section
