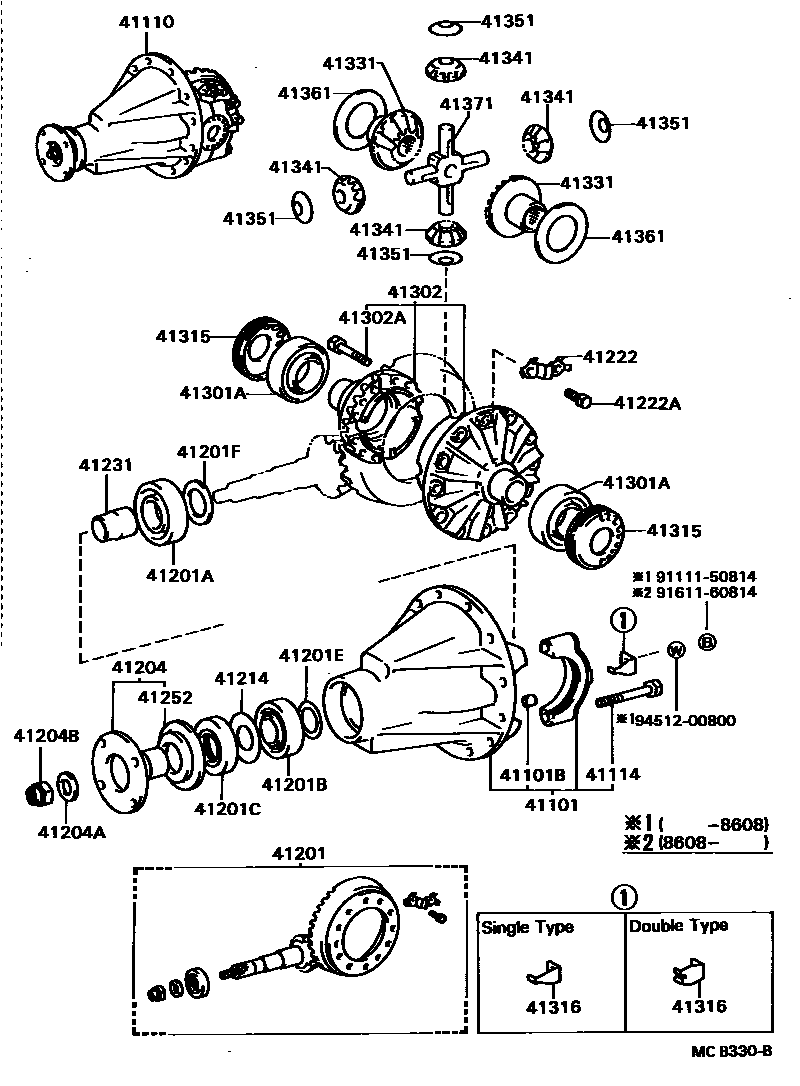

REAR AXLE HOUSING & DIFFERENTIAL
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
sub41101-37010
41101BPIN, RING (FOR REAR DIFFERENTIAL CARRIER)
41114BOLT, REAR DIFFERENTIAL BEARING CAP
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
sub41201-39525
41201ABEARING (FOR REAR DRIVE PINION REAR)
sub90366-40100
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
sub90311-48019
41201ESHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)
41201FSHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST)
sub90564-40004
sub90564-40004
sub90564-40007
sub90564-40007
sub90564-40009
sub90564-40009
sub90564-40011
sub90564-40011
sub90564-40013
sub90564-40013
sub90564-40015
sub90564-40015
sub90564-40017
sub90564-40017
sub90564-40019
sub90564-40019
sub90564-40021
sub90564-40021
sub90564-40023
sub90564-40023
sub90564-40025
sub90564-40025
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204AWASHER, PLATE (FOR REAR DRIVE PINION)
41204BNUT (FOR REAR DRIVE PINION)
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
sub41214-37010
41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
sub41252-37020
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41302CASE SUB-ASSY, REAR DIFFERENTIAL
41302ABOLT(FOR REAR DIFFERENTIAL CASE)
41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
SINGLE
DOUBLE
41331GEAR, REAR DIFFERENTIAL SIDE
41341PINION, REAR DIFFERENTIAL
sub41341-55013
41351WASHER, REAR DIFFERENTIAL PINION THRUST
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
sub41361-60011
sub41361-60011
sub41361-60021
sub41361-60021
sub41361-60031
sub41361-60031
sub41361-60041
sub41361-60041
41371SPIDER, REAR DIFFERENTIAL
9111150814
main91111-50814
9161160814
main91611-60814
9451200800
main94512-00800
31 parts on this diagram · 2 diagrams in section
