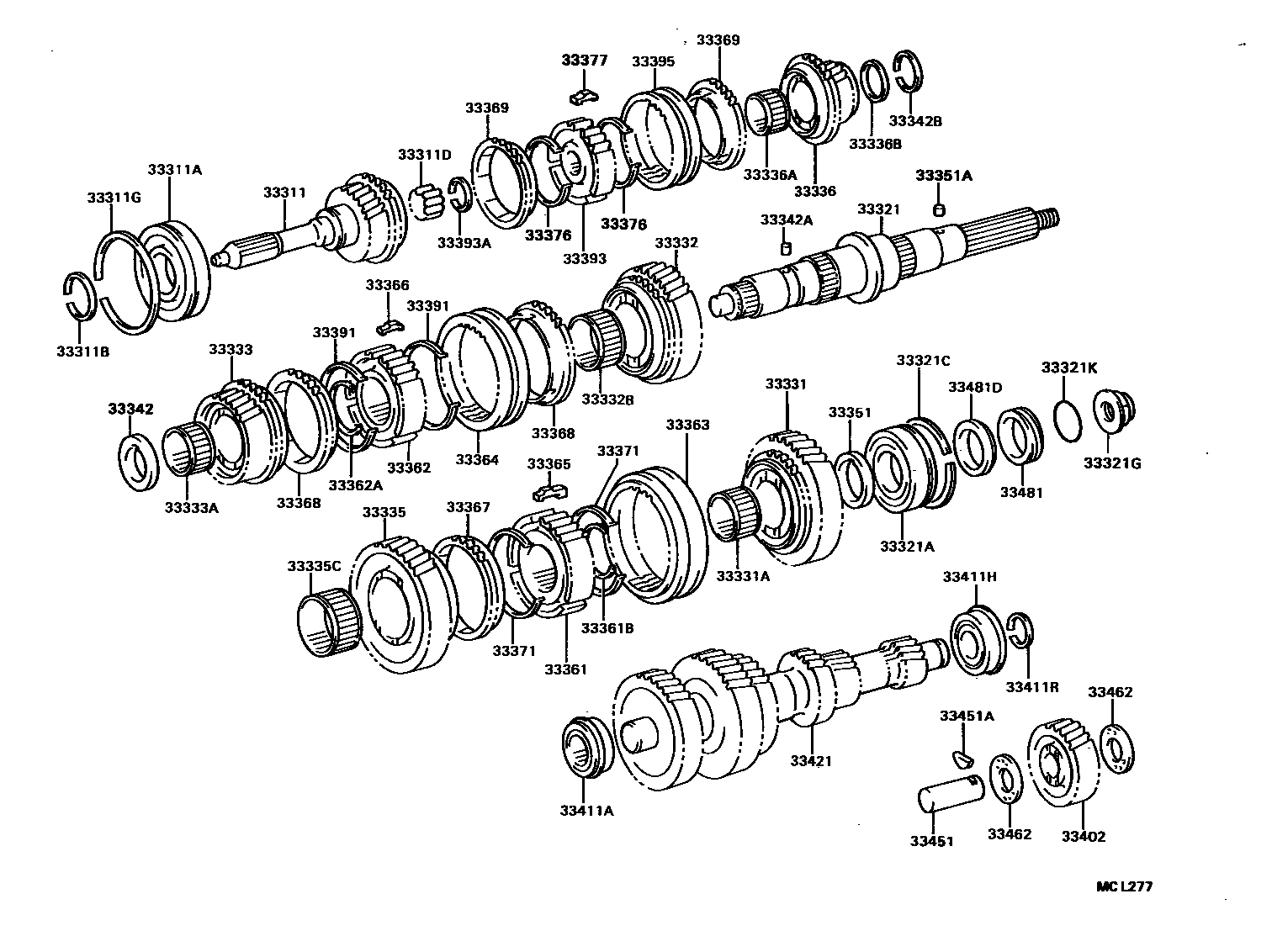

TRANSMISSION GEAR (MTM)
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
33321SHAFT, OUTPUT
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
33321KRING, O(FOR MANUAL TRANSMISSON OUTPUT SHAFT REAR SET NUT)
33331GEAR, REVERSE
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)
33336BSPACER (FOR 5TH GEAR BEARING)
33342WASHER, GEAR THRUST
33342APIN, STRAIGHT (FOR GEAR THRUST WASHER)
33342BRING, SHAFT SNAP (FOR GEAR THRUST WASHER)
33351APIN, STRAIGHT (FOR REVERSE GEAR THRUST WASHER)
33361HUB, TRANSMISSION CLUTCH, NO.1
33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
33363SLEEVE, TRANSMISSION HUB, NO.1
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33376SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB)
33377KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB)
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33393HUB, TRANSMISSION CLUTCH, NO.3
33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)
33395SLEEVE, TRANSMISSION HUB, NO.3
33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)
sub90363-30049
33411RRING, SNAP, COUNTER GEAR REAR BEARING
33451AKEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT)
33462WASHER, REVERSE IDLER THRUST
33481GEAR, SPEEDOMETER DRIVE (MTM)
33481DSPACER (FOR SPEEDOMETER DRIVE GEAR)
54 parts on this diagram · 2 diagrams in section
