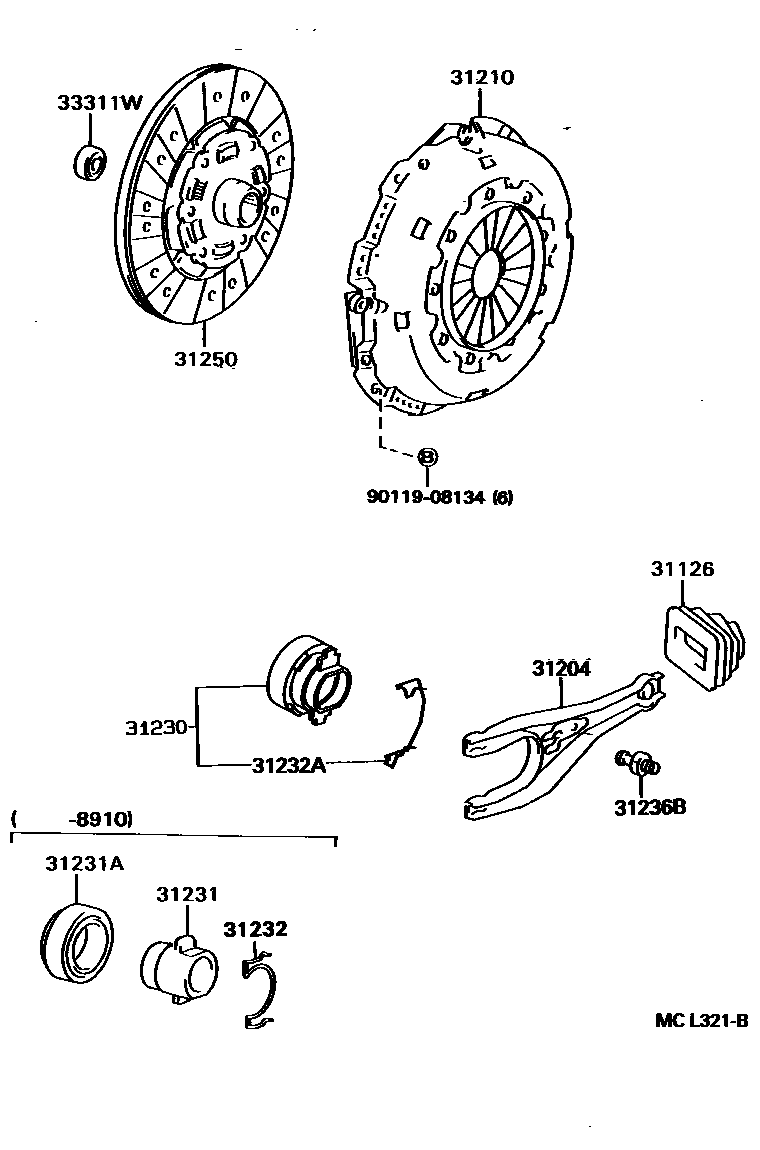

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iBU60198601-199301

main31126-36080iBU60199301-199505

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-35030iBU60198601-198805

main31204-35031iBU60198805-199505

31210COVER ASSY, CLUTCH

main31210-36100iBU60198601-198708

main31210-36130iBU60198708-198808

sub31210-36131

main31210-36140iBU60198808-198910

main31210-36160iBU60198910-199505

sub31210-36161

31230BEARING ASSY, CLUTCH RELEASE

main31230-36150iBU60198910-199505

sub31230-36151

31231HUB, CLUTCH RELEASE BEARING

main31231-36090iBU60198601-198808

main31231-36120iBU60198808-198910

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-45002iBU60198601-198808

main90363-45013iBU60198808-198910

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-35010iBU60198601-198910

31232ACLIP, RELEASE BEARING HUB

main31232-36010iBU60198910-199505

31236BSUPPORT, RELEASE FORK

main31236-35030iBU60198805-199505

31250DISC ASSY, CLUTCH

main31250-36280iBU60198601-198611

sub31250-36281

main31250-36301iBU60198611-198708

main31250-36370iBU60198708-198808

main31250-36371iBU60198805-198808

sub31250-36372

main31250-36410iBU60198808-199006

main31250-36411iBU60199006-199412

main31250-36412iBU60199412-199505

sub31250-37070

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iBU60198601-199505

sub90363-12024

9011908134

main90119-08134

12 parts on this diagram · 1 diagram in section
