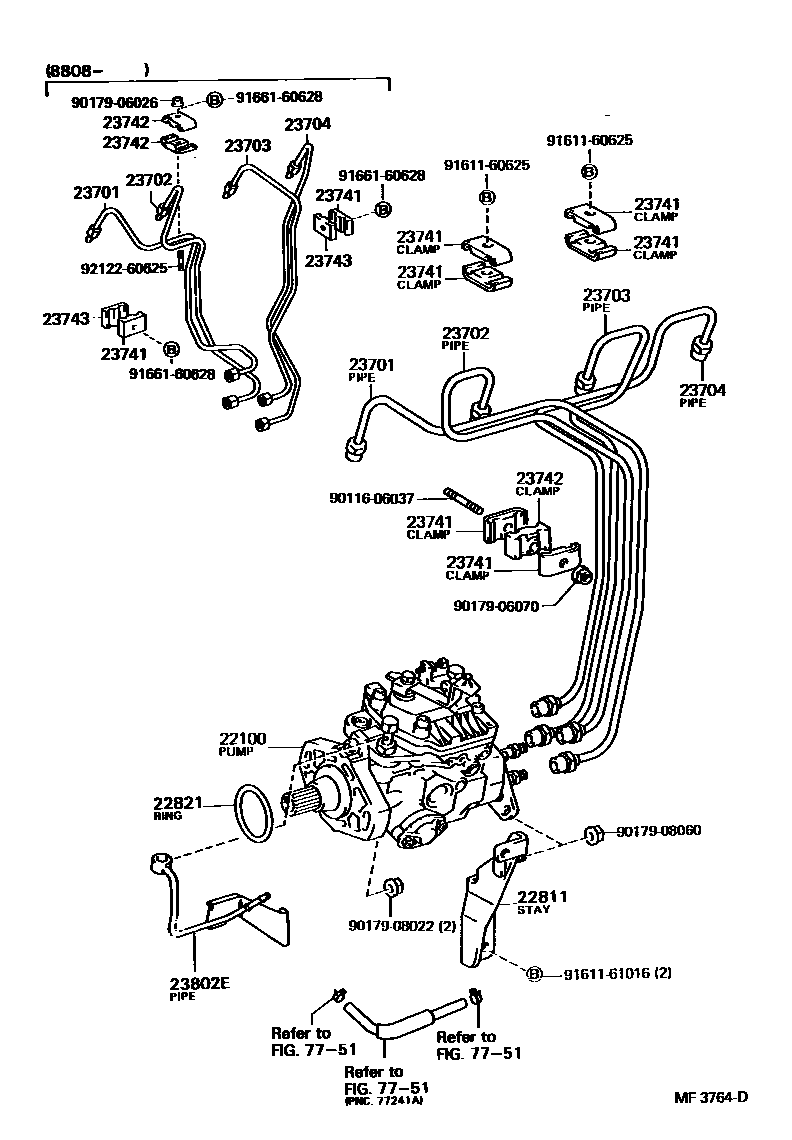

INJECTION PUMP ASSEMBLY

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-56200iB..BU60198601-198608

main22100-56201iB..BU60198608-198808

main22100-56290iB..BU60198808-199505

sub22100-56430

22811STAY, INJECTION PUMP, NO.1

main22811-56020iB..BU60198601-198808

main22811-56050iB..BU60198808-199505

22821GASKET, INJECTION PUMP

main90301-49003iB..BU60198601-199505

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-56050iB..BU60198601-198808

main23701-56070iB..BU60198808-199505

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-56050iB..BU60198601-198808

main23702-56070iB..BU60198808-199505

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-56050iB..BU60198601-198808

main23703-56070iB..BU60198808-199505

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-56050iB..BU60198601-198808

main23704-56070iB..BU60198808-199505

23741CLAMP, INJECTION PIPE, NO.1

main23741-54010iB..BU60198808-199505

main23741-56010iB..BU60198601-198808

23742CLAMP, INJECTION PIPE, NO.2

main23741-56010iB..BU60198808-199505

main23741-56020iB..BU60198601-198808

sub23741-56021

23743CLAMP, INJECTION PIPE, NO.3

main23742-54010iB..BU60198808-199505

23802EPIPE SUB-ASSY, FUEL

main23801-56070iB..BU60198601-198808

main23801-56090iB..BU60198808-199505

7751

9011606037

main90116-06037

9017906026

main90179-06026

9017906070

main90179-06070

9017908022

main90179-08022

9017908060

main90179-08060

9161160625

main91611-60625

9161161016

main91611-61016

9166160628

main91661-60628

9212260625

main92122-60625

21 parts on this diagram · 1 diagram in section
