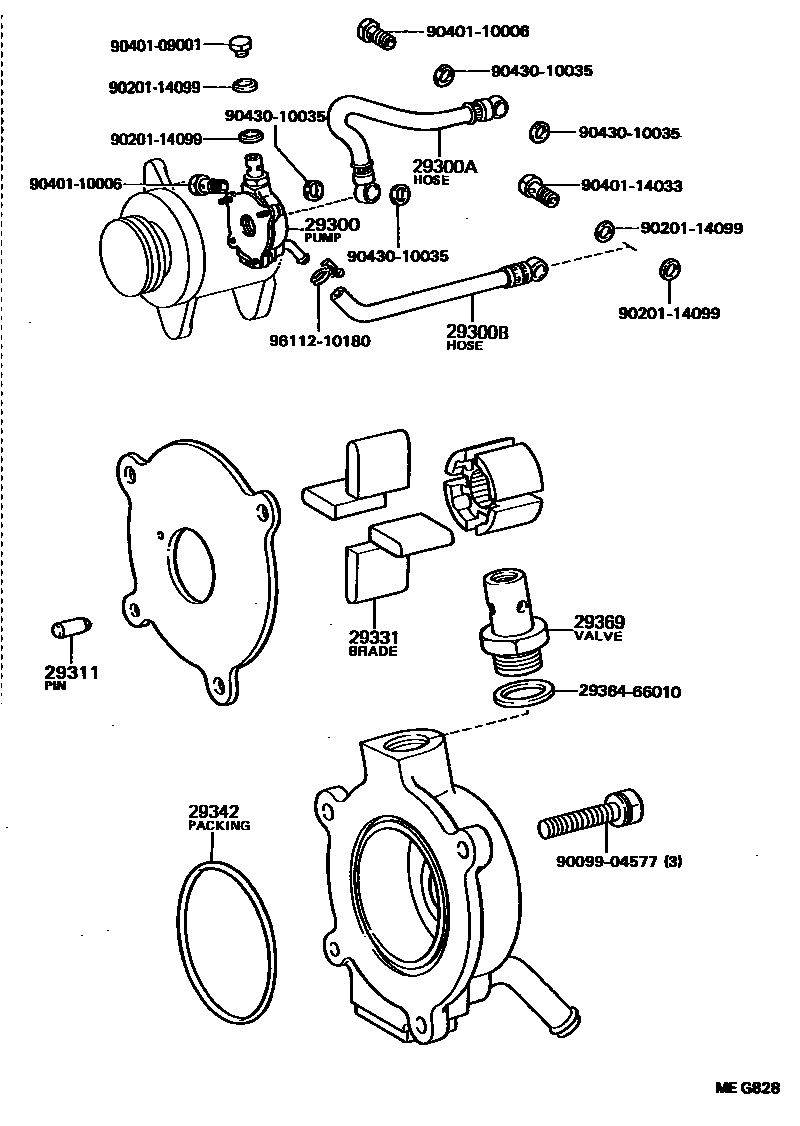

VACUUM PUMP

0001 1 0002 1

29300PUMP ASSY, VACUUM

main29300-56090iB..BU60198601-198808

main29300-58050iB..BU60198808-199505

sub29300-58060

29300AHOSE, VACUUM PUMP OIL INLET

main90923-02072iB..BU60198601-198808

main90923-02078iB..BU60..N..3D198710-198808

29300BHOSE, VACUUM PUMP OIL OUTLET

main90923-02068iB..BU60..N..3D198710-198808

main90923-02073iB..BU60198601-198808

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010iB..BU60198601-198708

main90099-08082iB..BU60198708-198805

29331BLADE, VACUUM PUMP, A

main29331-58050×4iB..BU60198808-199405

main29331-67020×5iB..BU60199405-199505

main29331-78010×4iB..BU60198601-198808

29342PACKING, VACUUM PUMP

main29342-58010iB..BU60198808-199505

main29342-58020iB..BU60198808-198906

NO.2,ID=12.4

main29342-58050iB..BU60198808-199505

main29342-64010iB..BU60198906-199505

NO.2,ID=11.8

main96740-02063iB..BU60198601-198808

29369VALVE SUB-ASSY, CHECK

main29369-56070iB..BU60198601-198808

main29369-64030iB..BU60198808-199505

2936466010WASHER, VACUUM PUMP

main29364-66010

9009904577

main90099-04577

9020114099

main90201-14099

9040109001

main90401-09001

9040110006

main90401-10006

9040114033

main90401-14033

9043010035

main90430-10035

9611210180

main96112-10180

15 parts on this diagram · 2 diagrams in section
