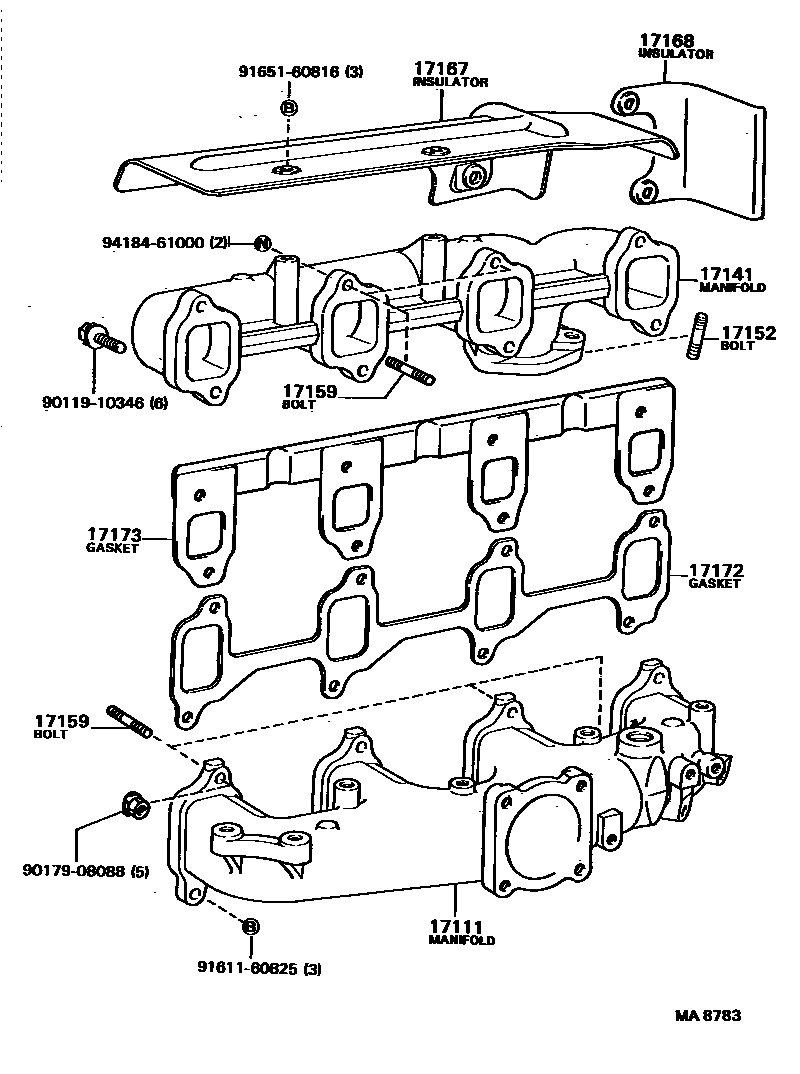

MANIFOLD
17111MANIFOLD, INTAKE
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
INTAKE MANIFOLD
EXHAUST MANIFOLD
INTAKE MANIFOLD
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17172GASKET, MANIFOLD TO CYLINDER HEAD
17173GASKET, EXHAUST MANIFOLD TO HEAD
9011910346
main90119-10346
9017908088
main90179-08088
9161160825
main91611-60825
9165160816
main91651-60816
9418461000
main94184-61000
13 parts on this diagram · 2 diagrams in section
