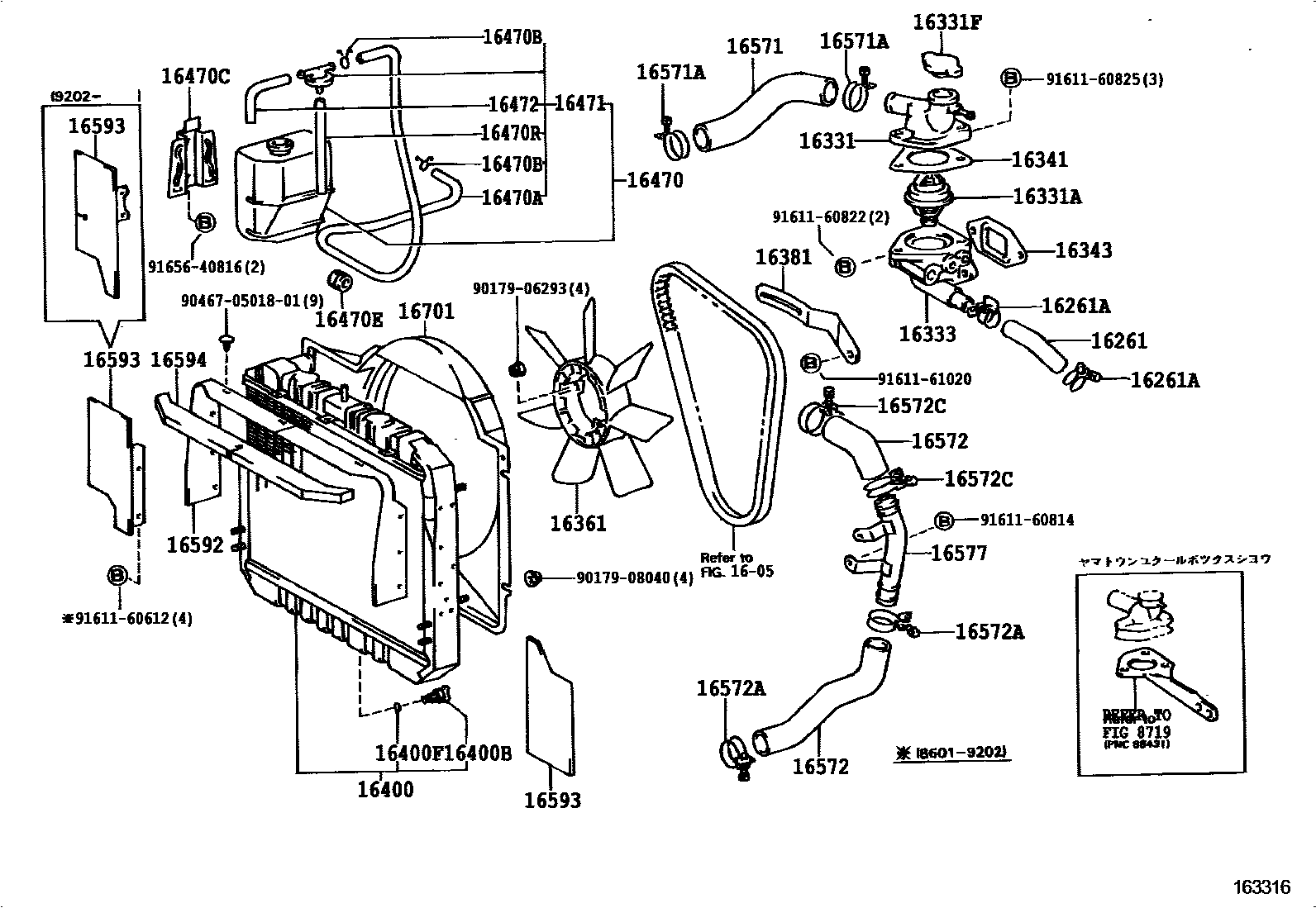

RADIATOR & WATER OUTLET

1605

16261HOSE, WATER BY-PASS

main16261-56012iB..BU60198601-199505

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90044-60053×2iB..BU60198601-198609

main90044-67103×2iB..BU60198609-198808

main90467-28004×2iB..BU60198808-199505

sub90467-28007

16331OUTLET, WATER

main16331-56040iB..BU60198601-199505

16331ATHERMOSTAT

main90916-03059iB..BU60198601-198805

main90916-03080iB..BU60198808-199505

sub90916-03103

16331FCAP SUB-ASSY(FOR WATER OUTLET)

main16401-71010iB..BU60198601-199505

sub16401-54750

16333HOUSING, WATER OUTLET

main16333-56060iB..BU60198601-198808

sub16333-58080

sub90341-12006

sub90430-12221

sub92122-60832

sub94185-60800

main16333-56070iB..BU60198808-198904

sub92112-60835

main16333-56071iB..BU60198904-198908

main16333-56072iB..BU60198908-199505

sub16333-58050

16341GASKET, WATER OUTLET

main16341-56020iB..BU60198601-198808

sub16341-56021

main16341-56030iB..BU60198808-199505

16343GASKET, WATER OUTLET HOUSING

main16343-56020iB..BU60198601-198808

main16343-56021iB..BU60198908-199001

main16343-56022iB..BU60199001-199304

main16343-56023iB..BU60199304-199505

16361FAN

main16361-56070iB..BU60198601-199505

16381BAR, FAN BELT ADJUSTING

main16381-56030iB..BU60198601-198808

main16381-56060iB..BU60..D198808-199505

sub16381-58120

main16381-58040iB..BU60..N198808-199505

16400RADIATOR ASSY

main16400-56161iB..BU60198601-199505

16400BPLUG, RADIATOR DRAIN COCK

main16417-58090iB..BU60198601-199505

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-24051iB..BU60198601-199505

16470TANK ASSY, RADIATOR RESERVE

main16470-56140iB..BU60198601-199505

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12015iB..BU60198601-198805

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085×2iB..BU60198601-199505

16470CBRACKET(FOR RADIATOR RESERVE TANK)

main16611-54040iB..BU60198601-199505

16470EGROMMET, RADIATOR RESERVE TANK HOSE

main90480-18011iB..BU60198601-199505

16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)

main90445-12078iB..BU60198601-198805

16471CAP SUB-ASSY, RESERVE TANK

main16405-56080iB..BU60198601-199505

16472HOSE, BREATHER

main85338-22030iB..BU60198601-199505

16571HOSE, RADIATOR, INLET

main16571-56040iB..BU60198601-198808

main16571-56060iB..BU60198808-199505

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-42001×2iB..BU60198601-198708

sub90467-41002

main96111-10490×2iB..BU60198708-198910

16572HOSE, RADIATOR, OUTLET

main16572-56080iB..BU60198601-198708

WATER PUMP SIDE

main16572-56081iB..BU60198708-198808

WATER PUMP SIDE

main16572-56090iB..BU60198808-199111

WATER PUMP SIDE

main16572-56091iB..BU60199111-199505

WATER PUMP SIDE

main16573-56030iB..BU60198601-198606

RADIATOR SIDE

main16573-56031iB..BU60198606-198708

RADIATOR SIDE

main16573-56040iB..BU60198708-198805

RADIATOR SIDE

main16573-56050iB..BU60198808-199505

sub16573-58070

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main96111-10510×2iB..BU60198601-199505

16572CCLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)

main96111-10490iB..BU60199111-199505

PIPE SIDE

main96111-10510iB..BU60198805-199111

PIPE SIDE

main96111-10560iB..BU60198601-198708

WATER PUMP SIDE

main96111-10570iB..BU60198708-198805

WATER PUMP SIDE

16577PIPE, RADIATOR, NO.7

main16577-56030iB..BU60198601-198606

main16577-56031iB..BU60198606-198708

main16577-56040iB..BU60198708-198808

main16577-56050iB..BU60198808-199505

16592GUIDE, RADIATOR AIR, NO.3

main16593-56030iB..BU60198601-198607

16593GUIDE, RADIATOR AIR, NO.1

main16593-56050iB..BU60198805-199202

main16593-56051iB..BU60199202-199505

main16595-56030iB..BU60198601-198805

LH

main16595-56031iB..BU60199202-199505

main16595-56050iB..BU60..N..3D198801

YAMATO COOL TAKKUBIN

16594GUIDE, RADIATOR AIR, NO.2

main16594-56020iB..BU60198601-198607

16701SHROUD SUB-ASSY, FAN

main16701-56321iB..BU60198601-199505

9017906293

main90179-06293

9017908040

main90179-08040

904670501801

main90467-0501801

9161160612

main91611-60612

9161160814

main91611-60814

9161160822

main91611-60822

9161160825

main91611-60825

9161161020

main91611-61020

9165640816

main91656-40816

41 parts on this diagram · 1 diagram in section
