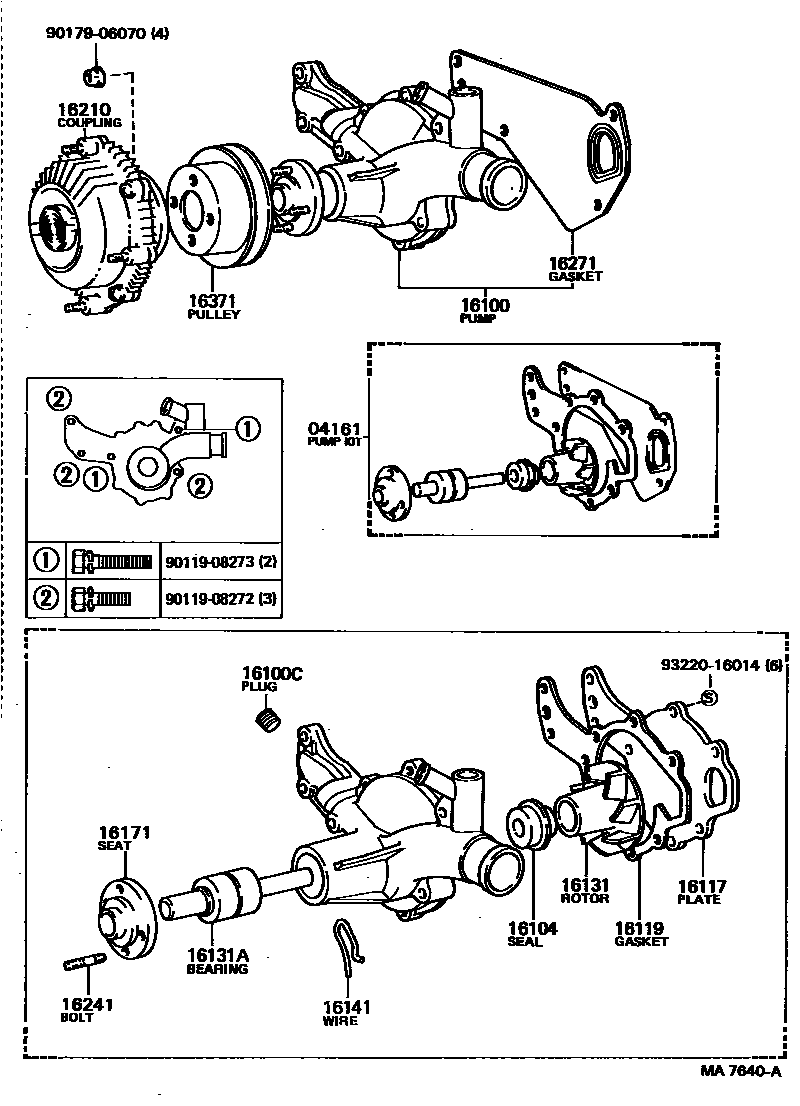

WATER PUMP

0001 1 0002 1

04161PUMP KIT, WATER

main04161-56090iB..BU60¥7,300198601-198808

sub04161-56091

16100PUMP ASSY, ENGINE WATER

main16100-59145iB..BU60¥16,500198601-198808

main16100-59165iB..BU60¥14,200198808-199505

sub16100-59166¥11,200

sub16100-59245

16100CPLUG, W/HEAD TAPER SCREW

main15184-15010iB..BU60¥450198601-198808

16104SEAL SET, WATER PUMP

main16104-15020iB..BU60¥2,490198601-198808

16117PLATE, WATER PUMP

main16117-56040iB..BU60¥1,650198601-198808

main16117-58010iB..BU60¥1,010198808-199505

16119GASKET, WATER PUMP BODY

main16119-56040iB..BU60¥640198601-198808

sub16119-56041¥550

16131ROTOR, WATER PUMP

main16131-56030iB..BU60¥1,060198601-198808

16131ABEARING, WATER PUMP

main90369-30060iB..BU60¥1,920198601-198805

sub90369-30061¥1,920

main90369-30061iB..BU60¥1,920198805-198808

16141WIRE, WATER PUMP BEARING RETAINING

main16141-60010iB..BU60¥440198601-198808

16171SEAT, WATER PUMP PULLEY

main16171-35010iB..BU60¥1,760198805-198808

main16171-38022iB..BU60¥1,780198601-198805

16210COUPLING ASSY, FLUID

main16210-56060iB..BU60¥30,700198601-198808

main16210-58030iB..BU60¥19,900198808-199505

16241BOLT, STUD(FOR WATER PUMP COUPLING)

main16193-33030iB..BU60¥390198601-198705

main16193-56110iB..BU60¥350198705-198808

16271GASKET, WATER PUMP

main16271-56020iB..BU60¥1,470198601-198808

sub16271-56030¥930

main16271-56030iB..BU60¥930198808-199304

sub16271-56031¥930

main16271-56031iB..BU60¥930199304-199505

sub16271-58010¥990

16371PULLEY, FAN

main16371-56050iB..BU60¥5,500198601-198808

main16371-56060iB..BU60¥5,200198808-199505

9011908272

main90119-08272¥190

9011908273

main90119-08273¥210

9017906070

main90179-06070¥180

9322016014

main93220-16014¥80

18 parts on this diagram · 2 diagrams in section
