ENGINE OIL COOLER

15710COOLER ASSY, OIL

main15710-56041iB..BU60198601-198808

main15710-56100iB..BU60198808-199505

15710BRING, O(FOR OIL COOLER)

main90301-20001iB..BU60198601-199505

15710CGASKET(FOR OIL COOLER)

main15785-54010iB..BU60198808-199505

main90923-05014iB..BU60198601-198808

sub90923-05018

15722GASKET, OIL COOLER

main15725-56011iB..BU60198601-198808

sub15725-56020

main15725-56020iB..BU60198808-199505

15791CASE, OIL COOLER

main15701-56011iB..BU60198601-198808

main15701-56030iB..BU60198808-198904

sub15701-56031

sub91611-60835

main15701-56031iB..BU60198904-199412

sub15701-58050

main15701-58050iB..BU60199412-199505

9004341006

main90043-41006

9004344011

main90043-44011

9011008004

main90110-08004

9017908088

main90179-08088

9034116012

main90341-16012

9034118049

main90341-18049

9034453005

main90344-53005

9034553001

main90345-53001

9043016242

main90430-16242

9043018019

main90430-18019

9152160830

main91521-60830

9161160835

main91611-60835

9212260828

main92122-60828

9453100800

main94531-00800

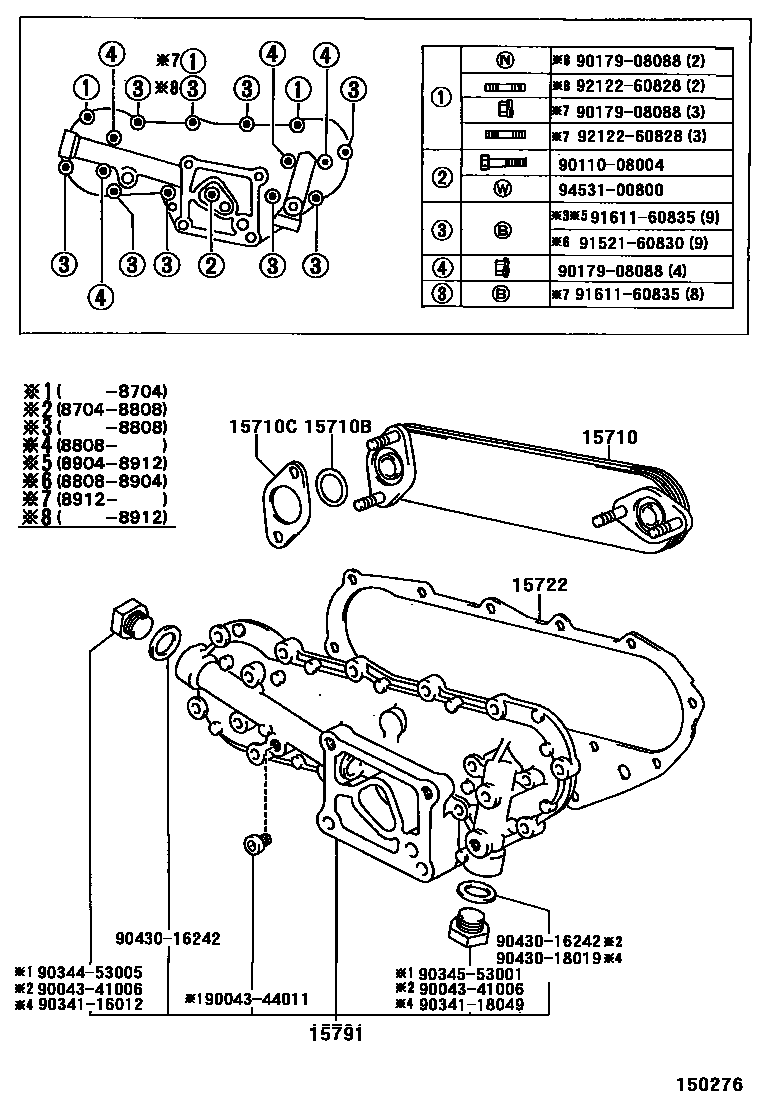

19 parts on this diagram · 1 diagram in section
