VENTILATION HOSE

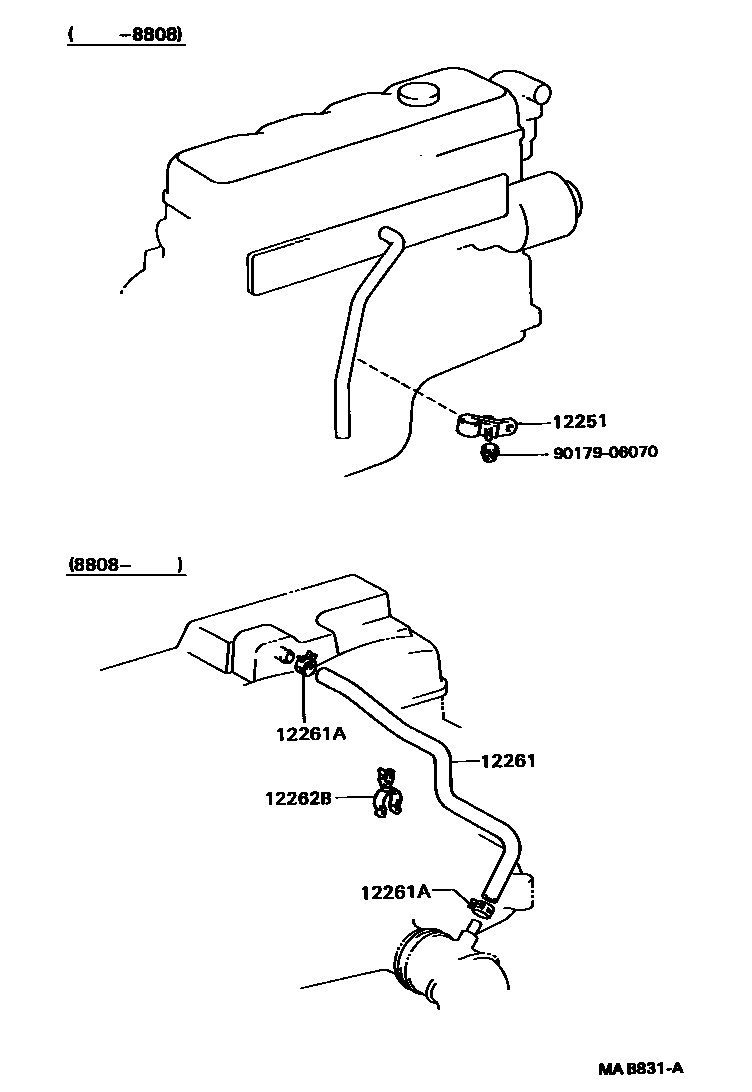

Parts diagram

12251CLAMP, VENTILATION TUBE

main12251-56040i¥1,290198601-198808

12261HOSE, VENTILATION

main12261-56020i¥1,280198808-199505

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-23002i¥90198808-199505

12262BCLAMP(FOR VENTILATION HOSE)

main90464-00521i¥180198808-199505

9017906070

main90179-06070¥180

5 parts on this diagram · 1 diagram in section
